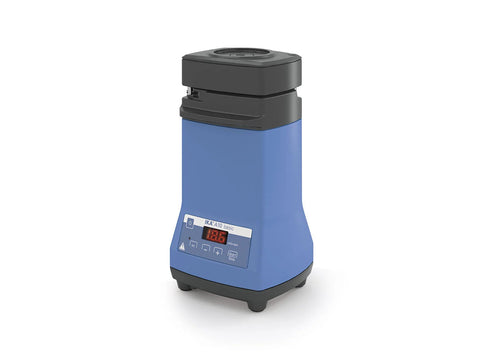

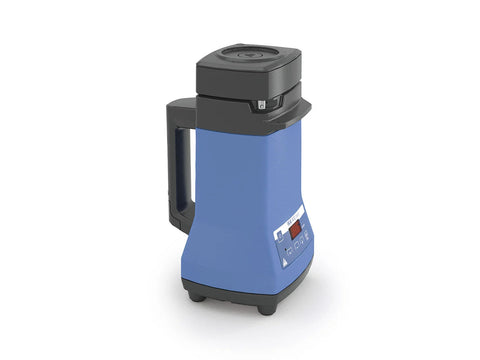

IKA A 10 Basic Mills (25000 rpm)

  • $ 2,05100
  • Save $ 4200


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0025002269

The redesigned batch mill grinds hard, brittle, soft and fibrous materials for volumes up to 50 ml. Because samples may be embrittled directly in the grinding chamber; tough, oily and aqueous samples can also be grinded.
The development of the mill placed particular emphasis on safety. The mill will only start when the lid is closed and can only be opened at standstill. A quick stop feature further increases the safety of the user.
Test results of the new A 10 basic are comparable with the ones of the previous model A 10, due to the same grinding chamber, cutter geometrics and speed.

The new mill A 10 basic offers the following features:

  • Digital timer
  • Counter: Display of grinding time
  • Interval function
  • Brushless motor for long service life and low noise level
  • Integrated cooling connections
  • Error code display
  • Simple handling with keypads
  • Easily exchangeable beater/cutter for a variety of applications
  • Grinding chamber reduction for small sample sizes and stainless steel cutter A 10.1 included with delivery
  • Bayonet lock for lid to enable simple and safe locking

Scope of delivery

  • A 10 basic
  • A 10.1 Stainless steel cutter
  • A 10.4 Grinding chamber reduction
  • Clips for cooling hose (2 pcs.)
  • Felt rings (2 pcs.)
  • Tool kit

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA A 10 Basic Mills (25000 rpm)

Process type batch
Operating principle cutting/impact
Motor rating input 300 W
Motor rating output 240 W
Speed max. 25000 rpm
Speed deviation ±500 rpm
Circumferential speed max. 73 m/s
Useable volume max. 50 ml
Feed hardness max. 5 Mohs
Feed grain size max. 6 mm
Material beater/cutter stainless steel 1.4034
Material milling chamber stainless steel 1.4301
Power-ON time 5 min
Power-OFF time 10 min
Milling chamber, can be cooled with water yes
Mill feed can be cooled in milling chamber with dry ice yes
Dimensions (W x H x D) 130 x 250 x 145 mm
Weight 2.9 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 41
Voltage 100 - 120 V
Frequency 50/60 Hz
Power input 300 W
