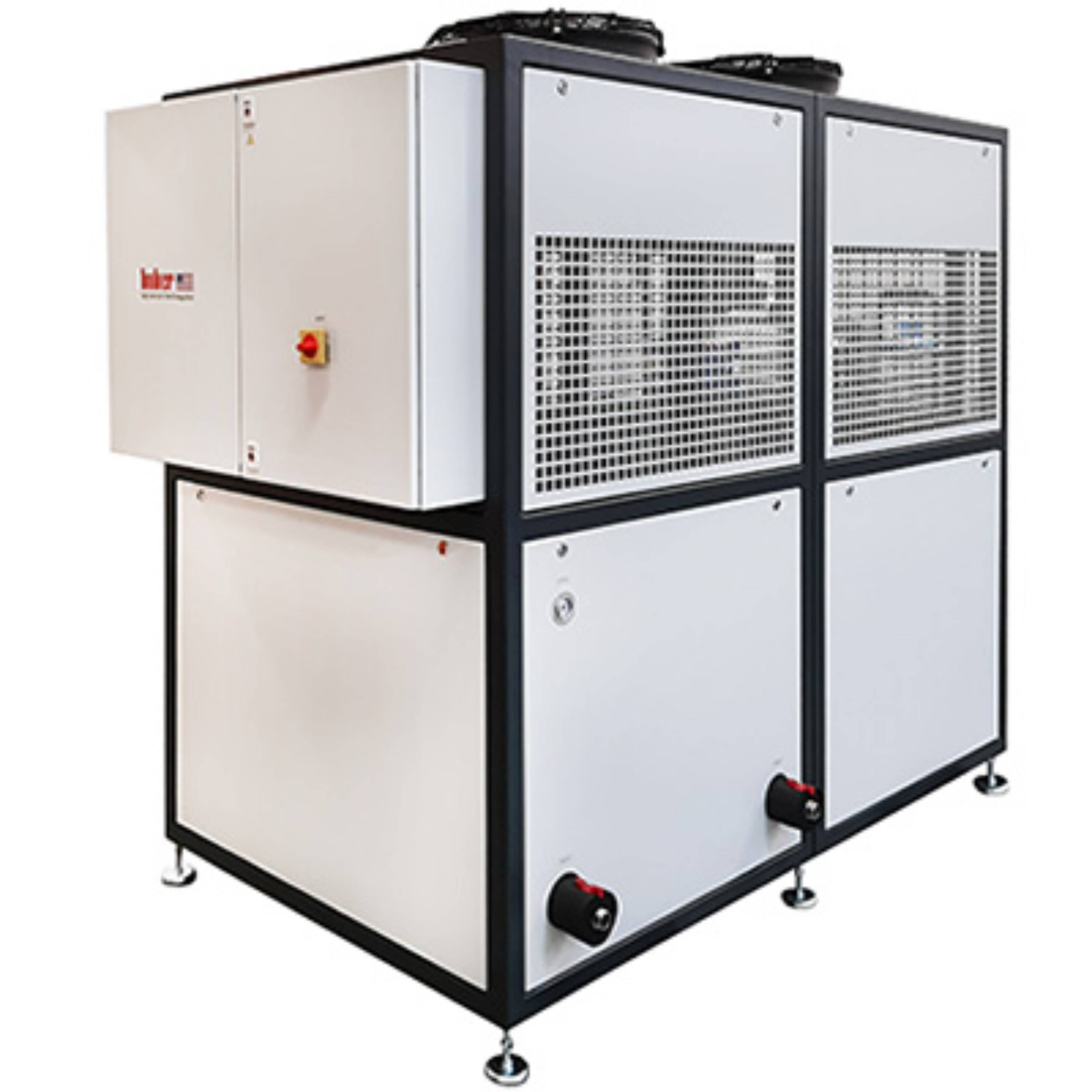

Huber LCS 80 - Chiller / Recirculating Cooler
Performance Characteristics
The CS chillers expand the Huber product range with compact and highly affordable recirculating coolers. The Huber CS chillers combine cool and smart technology in one unit. For many applications, recirculating coolers further reduce water consumption and lower the operating costs. The investment pays itself off after a short time because of the water savings and the low purchase price. All the models are air-cooled and equipped with bypass, manometer and sensor to monitor the flow. The devices are characterized by the fact that they are easy to operate and maintenance-free. In addition, they have a low-noise construction and fan for quiet operation. Furthermore, the CS chillers are particularly suited for constant temperature control for laboratory applications, e.g. for cooling vacuum pumps, rotary evaporators, electron microscopy, AAS-devices, ICP-devices, extraction, distillation and many more.
Functions overview
- High efficiency
- Precise temperature control
- Environmentally friendly, economic cooling solution
- Low operating costs
- Reduced water consumption
- Powerful recirculation pump
- Extremely quiet and simple operation
- Low-noise construction
Technical Data
|
General & Temperature Control |
|
|
Temperature range |
-45...15 °C |
|
Safety class |
I / NFL |
|
Dimensions (W x D x H) |
2015 x 1100 x 2000 mm |
|
Weight, net |
880 kg |
|
Heating / cooling capacity |
|
|
Cooling capacity |
15 -20 -40 °C |
|
20 18 8,5 kW |
|
|
Refrigeration machine |
air-cooled, CFC- and HCFC-free |
|
Refrigerant 1st stage |
R-449A (A1, H280) |
|
Refrigerant quantity 1st stage |
16 kg |
|
Circulation pump |
|
|
Delivery capacity pressure pump max. |
53 l/min; 4,7 bar |
|
Pump connection |
G1 AG male |
|
Connections |
|
|
Interface digital |
RS232 |
|
Operating data |
|
|
Permissible ambient temperature |
-20...50 °C |
|
Sound pressure level |
77 dB(A) |
|
Bath volume |
37 l |
|
Filling volume min. |
40 l |
|
Power supply |
460V 3~ 60Hz |
|
Current consumption max. |
50 A |
|
Fuse |
3x60A |
