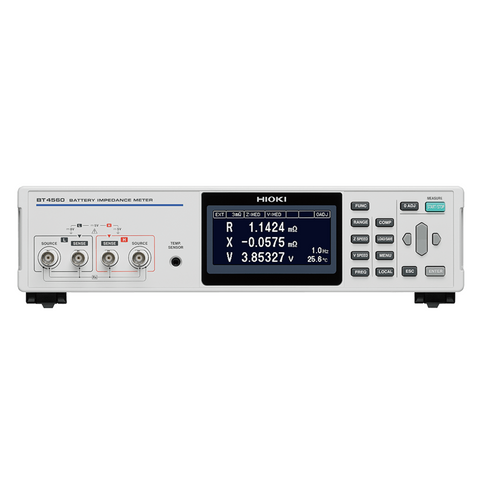

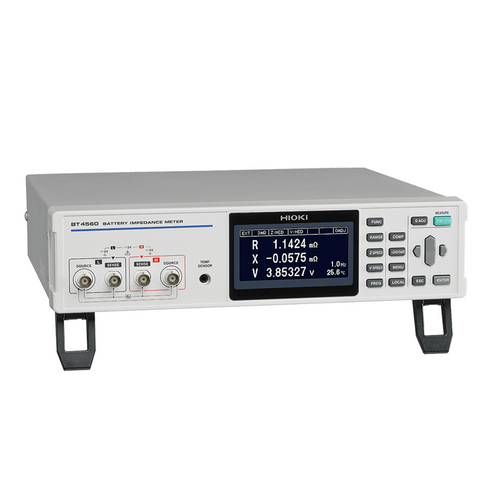

Hioki Battery Impedance Meter BT4560
SKU: BT4560-50
Hioki Battery Impedance Meter BT4560
The Battery Impedance Meter BT4560 can make EIS(*1) measurements quickly and easily in applications ranging from R&D to manufacturing. It delivers high-precision measurement capability for quality control of high-capacity batteries, and it can be expanded into an evaluation system for efficiently measuring multiple batteries. In addition, a new LAN interface simplifies the process of building a testing system, offering additional convenience.
Key Features
- EIS measurement frequency: 0.01 Hz to 1.05 kHz
- Simultaneous measurement of impedance, voltage, & temperature
- Convenient evaluation application software for R&D use
- Data compatibility with third-party equivalent circuit analysis software
- For production lines: LAN interface & advanced multi-channel solutions
Basic specifications
Accuracy guaranteed: 1 year
| Allowable input voltage | Up to 5 V | |||||
|---|---|---|---|---|---|---|
| Measured items | Impedance, voltage, temperature | |||||
| Impedance measurement | Parameters: R (resistance), X (reactance), Z (impedance), θ (phase angle) Frequency: 0.01 Hz to 1050 Hz Measurement ranges: 3.0000 mΩ, 10.0000 mΩ, 100.000 mΩ Measurement current: 3 mΩ range: 1.5 A rms, 10 mΩ range: 500 mA rms, 100 mΩ range: 50 mA rms |
|||||
| Voltage measurement | Measurement range: 5.00000 V (single range), measurement time: 0.1 s (FAST) to 1.0 s (SLOW) | |||||
| Temperature measurement | Range: -10.0°C to 60.0°C, measurement time: 2.3 s | |||||
| Basic accuracy | Z: ±0.4% rdg. θ: ±0.1°, V: ±0.0035% rdg. ±5 dgt., Temperature: ±0.5°C (at 10.0°C to 40.0°C) | |||||
| Functions | Comparator, self-calibration, sample delay, average, voltage limit, potential gradient compensation for impedance measurement, charge/discharge prevention during AC signal application, key lock, system test, panel saving and loading (up to 126 condition sets) | |||||

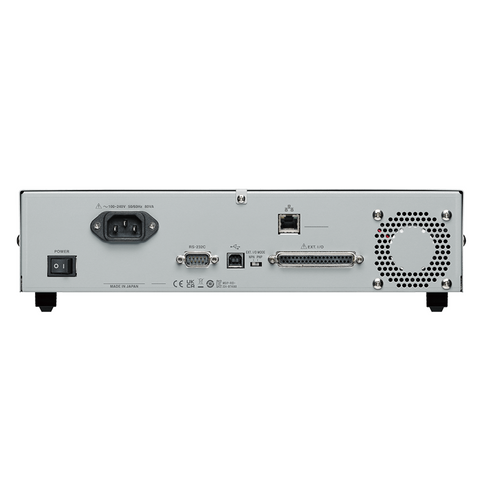

| Interfaces | LAN, RS-232C, USB, EXT. I/O (NPN/PNP can be switched) | |||||
| Power supply | Rated supply voltage: 100 V to 240 V AC Rated supply frequency: 50 Hz/60 Hz Rated power 80 VA max |
|||||
| Dimensions and weight | Approx. 330W × 80H × 293D mm (12.99W × 3.15H × 11.54D in.), approx. 3.8 kg (134.0 oz.) | |||||
| Included accessories | Power cord × 1, instruction manual × 1, zero-adjustment board × 1, USB cable (A-B type) × 1, CD-R (comes with communication instruction manual, PC application software, and USB driver) × 1 | |||||
