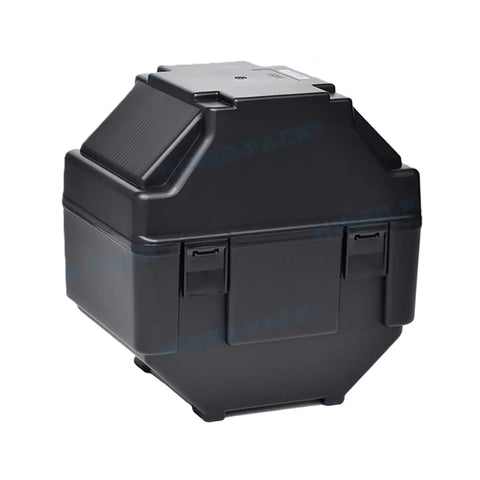

Hiner-pack® 8-inch Vertical Flex Frame Wafer Shipper - Conductive PP
SKU: CA0066239
Hiner-pack® 8-inch Vertical Flex Frame Wafer Shipper - Conductive PP
Description:
Reliable wafer shipping solution ensuring protection from contamination and mechanical damage
Purpose-built for wafers mounted on dicing, flex, or film frames, this vertical wafer shipper secures frames in a stable standing orientation, reducing movement and safeguarding wafer integrity. Molded slots align precisely with frame edges, preventing direct wafer contact and eliminating slippage or edge chipping. The top cover features a spring-loaded design to lock frames firmly in place, preventing breakage during shipping. Made from high-purity, static dissipative polymer materials, it resists ionic contamination and outgassing, and prevents static charge buildup. Cleaned and sealed in a Class 100 cleanroom environment, this wafer transport container ensures particle-free storage—ideal for semiconductor manufacturers demanding consistent protection and cleanliness.
- Made from low particle/ionic/outgassing material
- Vertical secures wafers already mounted on flex, dicing, or film frame
- Spring design in the upper cover can effectively avoid the frames movement, prevent wafer breakage
- Reusable for cost-efficient shipping
Application:
- Handling and storage of wafers mounted on flex, film, or dicing frames
- Safe vertical orientation to facilitate easy loading and unloading
- Minimizing mechanical stress during the transportation of fragile wafers
- Protection from environmental contamination in cleanroom logistics
Specification:
| Basic Information | ||
| Part Number | Collocation Reference | Wafer Size |
| FVWS-8/25-BL | Bottom+Frame+Top | 8"/200 mm |
| Metarial | Maximum Capacity | Color |
| Conductive PP | 25 | Black |
| Delivery Time | Usually 2-3 weeks, depending on order quantity | |
| * For more sizes or customization needs, please contact our team. We offer one-stop packaging solutions for your products. | ||
| Property | Test Method | Rated Values |
| Density | ISO 1183-1 (23°C) | 1.0 g/cm³ |
| Melt Index (350°C/5kg) | ASTM D–1238 | 15.0 g/10min |
| Shrinkage Percentage | ISO 2577 | 1.2~1.6 % |
| Tensile Strength | ISO 527-2 (50mm/min) | 25 MPa |
| Tensile Strain at Break | ISO 527-2 (50mm/min) | 10% |
| Flexural Strength (Fracture) | ISO 178 (2mm/min) | 27 MPa |
| Flexural Modulus | ISO 178 (2mm/min) | 1150 MPa |
| LZOD Notch Impact Strength (3.2mm) | ISO 180 (23°C) | 30 kJ/m² |
| Surface Resistivity | ASTM D–257 | 1.0×10⁴~1.0×10⁹ Ω/sq |
| Flame Retardant Rating | UL 94 | HB Class |
The above data are typical laboratory values and are only used as a reference, not as a guarantee for quality indicators or any other use.
