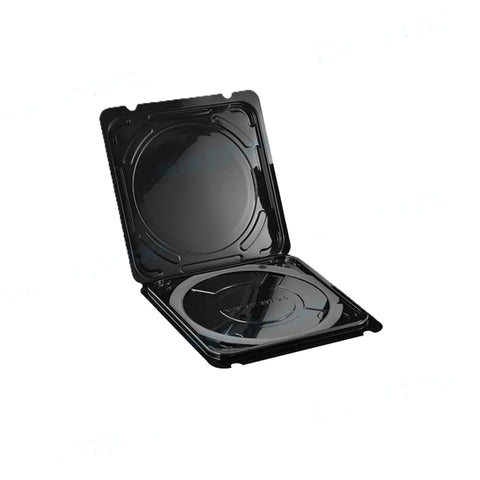

Hiner-pack® 8-inch Vacuum-Formed Flex Frame Single Wafer Shipper - Black PET
SKU: CA0066237
Hiner-pack® 8-inch Vacuum-Formed Flex Frame Single Wafer Shipper - Black PET
Description:
For secure and contamination-free semiconductor wafer transport, vacuum-formed flex frame single wafer shippers offer superior design and material performance. The clamshell enclosure isolates the wafer surface while protecting the flex, dicing, or film frame from mechanical impact. Fabricated from conductive PET, these ESD-safe wafer carriers neutralize static buildup, safeguarding sensitive wafers from electrical damage. Lightweight yet durable, they meet the stringent cleanliness and electrostatic protection standards required in wafer shipping, making them a preferred choice for cleanroom environments.
- Black PET material provides impact resistance and static control
- Secures wafers already mounted on flex, dicing, or film frame
- Designed with secure locking systems to ensure the contents remain protected.
- Vacuum-formed construction is lightweight and stackable
Application:
- Safe transport of single wafers on film/flex/dicing frames
- Secure storage and transportation for delicate semiconductor wafers
- Use in cleanroom environments for wafer handling
- Eco-friendly and cost-effective wafer shipping option
| Basic Information | ||
| Part Number | Collocation Reference | Wafer Size |
| SVFWS-8-BL | Wafer Shipper+Frame | 8"/200 mm |
| Metarial | Maximum Capacity | Color |
| PET | 1 | Black |
| Technical Data | ||
| PROPERTY | RATED VALUES | UNIT |
| Thickness | 0.01-1.00 (+0.01) | mm |
| Width | 510-780 (+1.0) | mm |
| Density | 1.33 | g/cm³ |
| Strength | >60 | MPa |
| Percentage of Breaking Elongation | >200 | % |
| Light Transmittance | >92 | % |
| Glossiness | 100 | % |
| Point Defects | 1.2 m< 1 | -- |
| Bubble | Without | -- |
| Specific Viscosity | 0.800+0.020 | iv/g |
| Flame Spot | >243+3 | °C |
| Terminal Acid Group | <30 | mol. |
| Color Value | L>80B<1.0 | ---- |
| Crystallinity | 50~60 | % |
| Diethylene Glycol | <1.6 | % |
| Acetaldehyde | <2.0 | % |
| Moisture | <0.4 | % |
| Ash | <0.02 | % |
| Antistatic Agent | <2.0 | % |
The above data are typical laboratory values and are only used as a reference, not as a guarantee for quality indicators or any other use.
