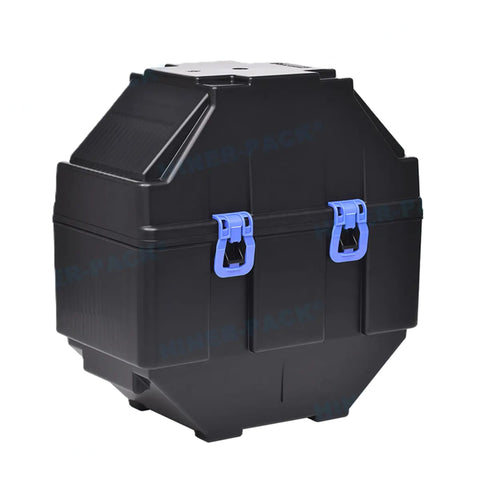

Hiner-pack® 12-inch Vertical Flex Frame Wafer Shipper - Conductive PP
SKU: CA0066242
Hiner-pack® 12-inch Vertical Flex Frame Wafer Shipper - Conductive PP
Description:
Reliable wafer shipping solution ensuring protection from contamination and mechanical damage.
Engineered for wafers mounted on flex, dicing, or film frame, this vertical shipper secures frame-supported wafers in a standing orientation. Its precision-molded slots immobilize frames, its inner contours cradle the metal or plastic frame rather than the wafer surface, preventing wafer slippage and micro-crack damage during handling. Spring design in the upper cover can effectively avoid the frames movement, prevent wafer breakage. Made from ESD-protective polymer materials, which can resist ionic contamination, outgassing, and static discharge. Dust-free cleaning and packaging after completion of production, suitable for 100-class purification workshop, ensures particle-free storage, which is critical in maintaining the integrity of sensitive wafers throughout the shipping process. Flex Frame Wafer Shippers are the ideal solution for semiconductor manufacturers seeking reliable and efficient transportation of multiple wafers mounted on dicing, flex, or film frames.
- Made from low particles/ionic/outgassing material
- Vertical secures wafers already mounted on flex, dicing, or film frame
- Spring design in the upper cover can effectively avoid the frames movement, prevent wafer breakage
- Reusable for cost-efficient shipping
Application:
- Handling and storage of wafers mounted on flex, film, or dicing frames
- Safe vertical orientation to facilitate easy loading and unloading
- Minimizing mechanical stress during the transportation of fragile wafers
- Protection from environmental contamination in cleanroom logistics
Specification:
| Basic Information | ||
| Part Number | Collocation Reference | Wafer Size |
| FVWS-12/13-BL | Bottom+Frame+Top | 12"/300 mm |
| Metarial | Maximum Capacity | Color |
| Conductive PP | 13 | Black |
| Delivery Time | Usually 2-3 weeks, depending on order quantity | |
| Technical Data | ||
| Property | Test Method | Rated Values |
| Density | ISO 1183-1 (23°C) | 1.0 g/cm³ |
| Melt Index (350°C/5kg) | ASTM D–1238 | 15.0 g/10min |
| Shrinkage Percentage | ISO 2577 | 1.2~1.6 % |
| Tensile Strength | ISO 527-2 (50mm/min) | 25 MPa |
| Tensile Strain at Break | ISO 527-2 (50mm/min) | 10% |
| Flexural Strength (Fracture) | ISO 178 (2mm/min) | 27 MPa |
| Flexural Modulus | ISO 178 (2mm/min) | 1150 MPa |
| LZOD Notch Impact Strength (3.2mm) | ISO 180 (23°C) | 30 kJ/m² |
| Surface Resistivity | ASTM D–257 | 1.0×10⁴~1.0×10⁹ Ω/sq |
| Flame Retardant Rating | UL 94 | HB Class |
