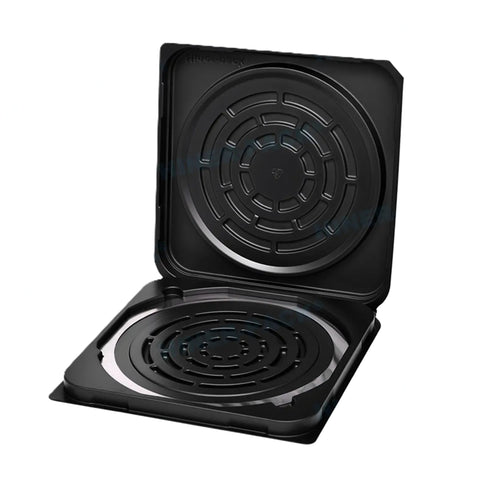

Hiner-pack® 12-inch Vacuum-Formed Flex Frame Single Wafer Shipper - Black PET
SKU: CA0066243
Hiner-pack® 12-inch Horizontal Wafer Shipper
Description:
Protects single wafer on film frames from vibration, shock, and particle contamination
The vacuum-formed flex frame single wafer shippers provide a lightweight, safe, and ergonomic means to ship and store single wafers mounted on flex, dicing, or film frames. Flex frame shippers are designed to protect the wafers on the frame and to prevent any contact with the wafer surface. The clamshell design, distinct from the traditional coin-style packaging, ingenious design makes it lightweight while still offering a secure enclosure that excels in contamination control. The conductive PET material shippers, utilizing properties that dissipate static charges, are indispensable in environments where the slightest electrostatic interaction could compromise wafer functionality. This makes them an essential asset for shipping components that are particularly susceptible to static damage. Their ability to shield sensitive wafers from electrostatic forces, while also preventing contamination, positions these shippers as a pivotal solution in the high-stakes realm of semiconductor manufacturing and distribution.
- Black PET material provides impact resistance and static control
- Secures wafers already mounted on flex, dicing, or film frame
- Designed with secure locking systems to ensure the contents remain protected.
- Vacuum-formed construction is lightweight and stackable
Application:
- Safe transport of single wafers on film/flex/dicing frames
- Secure storage and transportation for delicate semiconductor wafers
- Use in cleanroom environments for wafer handling
- Eco-friendly and cost-effective wafer shipping option
Specification:
| Basic Information | ||
| Part Number | Collocation Reference | Wafer Size |
| SVFWS-12-BL | Wafer Shipper+Frame | 12"/300 mm |
| Material | Maximum Capacity | Color |
| PET | 1 | Black |
| Delivery Time | Usually 2-3 weeks, depending on order quantity | |
| Technical Data | ||
| Property | Rated Values | Unit |
| Thickness | 0.01-1.00 (+0.01) | mm |
| Width | 510-780 (+1.0) | mm |
| Density | 1.33 | g/cm³ |
| Strength | >60 | MPa |
| Percentage of Breaking Elongation | >200 | % |
| Light Transmittance | >92 | % |
| Glossiness | 100 | % |
| Point Defects | 1.2 m< 1 | -- |
| Bubble | Without | -- |
| Specific Viscosity | 0.800+0.020 | iv/g |
| Flame Spot | >243+3 | °C |
| Terminal Acid Group | <30 | mol. |
| Color Value | L>80B<1.0 | ---- |
| Crystallinity | 50~60 | % |
| Diethylene Glycol | <1.6 | % |
| Acetaldehyde | <2.0 | % |
| Moisture | <0.4 | % |
| Ash | <0.02 | % |
| Antistatic Agent | <2.0 | % |
The above data are typical laboratory values and are only used as a reference, not as a guarantee for quality indicators or any other use.
