Hilgenberg Borosilicate Glass Wilson Multi Turn Helices, Pk of 1L
SKU: 4002130-32
Hilgenberg Borosilicate Glass Wilson Multi Turn Helices, Pk of 1L
Buy Hilgenberg high-precision glass products from MSE Supplies at the best value.

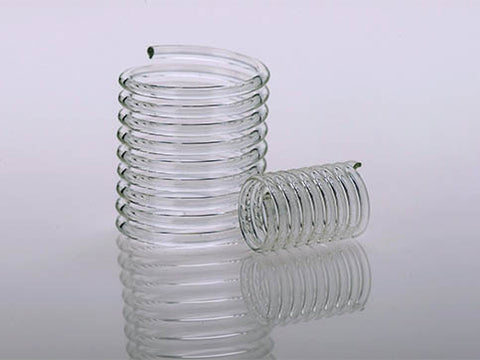

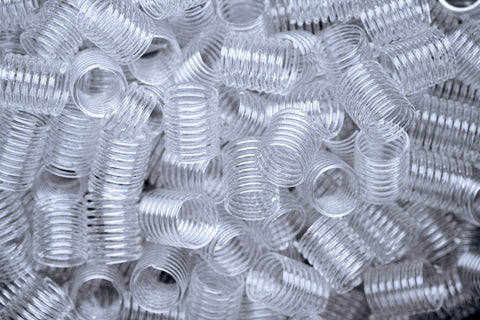

The special spiral shape means Wilson helices are considerably lighter than Raschig rings (by a factor of approx. 1.5), and have a flexible form that offers far greater breaking resistance. Furthermore, the numerous coils produce an extremely large surface area. Wilson helices also demonstrate a better separating performance, as they are able to withstand larger loads at a plate height comparable to Raschig rings.
We produce these helices in sizes ranging from 2 mm to 30 mm, exclusively in borosilicate glass 3.3.
Wilson helices in borosilicate glass 3.3
- Hydrolytic resistance class 1 (according to DIN 12111)
- Acid resistance class 1 (according to DIN 12116)
- Alkaline resistance class 2 (according to DIN 52322)
| SKU# | Dimensions (mm) |
| 4002130-32 | 3 |
| 4002140-32 | 4 |
| 4002170-32 | 7 |
| 4002110-32 | 10 |
| 4002112-32 | 12 |
| 4002115-32 | 15 |
MSE Supplies provides a wide range of technical glass products. Contact us for more details.
