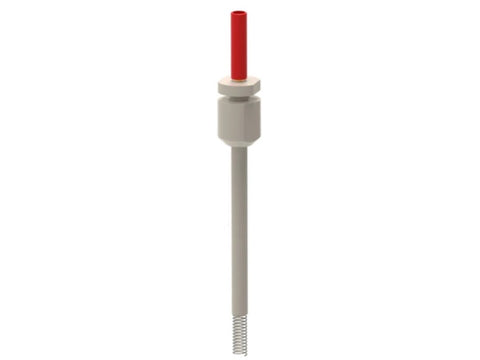

High-Pressure Wire Counter Electrode - HP90HX15 0.6/290 mm

High-Pressure Wire Counter Electrode - HP90HX15 0.6/290 mm

Buy Redox.me products from MSE Supplies at the best value.

The high-pressure metal wire counter (auxiliary) electrode is provided in the high-pressure electrochemical cell as a current sink to shunt excess current away from the reference electrode. The counter electrode is generally chosen to be inert under reaction conditions, typically platinum, rhodium, palladium, or gold wire. It fits aqueous and organic solvent electrolyte requirements well.

Application note

The high-pressure metal wire electrode is installed in the high-pressure cell lid to be immersed in the ion-conducting solution as a counter electrode. An electric current is passed between the working electrode and the counter electrode for a certain amount of time. The high-pressure electrodes should be installed in the high-pressure cell using Swagelok electrode fitting 6 mm OD. After the process, the electrode should be washed several times with isopropanol or ethanol and dried under the nitrogen flow.

Specification

Helix inner diameter: 4.8 mm
Helix outer diameter: 6 mm
Number of turns: 12
Wire diameter: 0.6 mm
Total wire length: 290 mm (215 mm long helix, 75 mm long straight wire)
Electrode body material: PEEK
Maximum temperature: 250 deg C
Maximum pressure: 50 bar

Intrastat Data

HS Code: 71101910 (platinum), 71081310 (gold), 75051100 (nickel), 71104900 (iridium)
Country of Origin: Sweden
NET weight: 100 g

Setup includes

1x high-pressure metal wire electrode
1x glass vial
