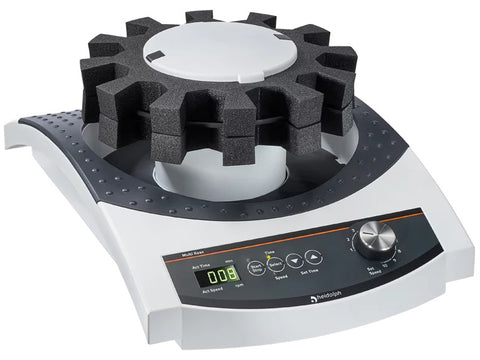

Heidolph Test Tube Shaker- Vibrating Multi Reax
Heidolph Test Tube Shaker- Vibrating Multi Reax
The versatile model with a 3 mm shaking orbit
A high sample throughput is one of the daily challenges that analytical laboratories have to meet. Often several analyses have to be prepared simultaneously. To simplify these processes and the general workflow, a multi-vortexer has been developed.
It can accommodate between 12 (16-32 mm diameter) and 26 (10-16 mm diameter) tubes (Falcon tubes or Greiner tubes). Reaction vessels with snap-on lids ("Eppis" or Eppendorf cups) are also safely fixed. The 3 mm shaking orbit and a speed control between 150 and 2,000 rpm guarantee excellent mixing results.
The integrated timer (up to 999 minutes) enables the automatic termination of the shaking function. After the time has expired, a signal tone is emitted. In this way, you can be sure that your work process will proceed continuously, as several tasks have to be fulfilled at the same time.
Product Parameters
| Overheat protection | Self-resetting |
| Permissible ambient conditions | 5 - 31 °C at 80 % rel. humidity 32 - 40 °C decreasing linearly up to max. 50 % rel. humidity |
| Weight | 9.8 kg |
| Protection class (EN 60529) | IP 30 |
| Timer | Yes (max. 999 min) |
| Rotation speed range | 150 - 2,000 rpm |
| Power input | 50 |
| Dimensions (w/d/h) | 270 x 410 x 172 mm |
| Max. Load | 1.5 kg |
| Operating Mode | Timer or continous |
| Rotation speed setting | Digital |
| Orbit / Stroke | 3 mm |
| Platform size | - |
| Accessories included | 2 carousel attachments |
| Angle | - |
| Motion | Vibrating |
| Ambient temperature range (operation) | - |
| Ambient temperature range (storage) | - |
| Interfaces | - |
| Usable area | - |
| Installation altitude | - |
