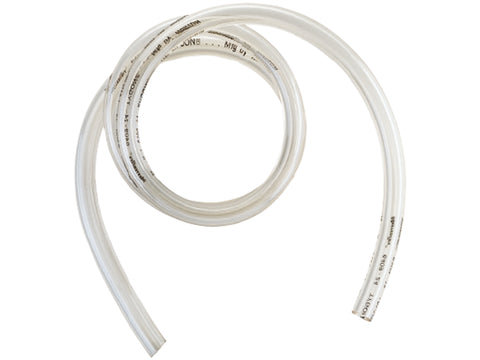

Heidolph Peristaltic Pump Tubing: Tygon (Standard) (ID 6.3mm, OD 9.5mm, WT 1.6mm)

  • $ 4695
  • Save $ 600


Heidolph Peristaltic Pump Tubing: Tygon (Standard) (ID 6.3mm, OD 9.5mm, WT 1.6mm)

For Single- and Multi-Channel use (not suitable with cassette small)

  • Application: For standard applications
  • Features:
    • Non-toxic, non-oxidizing
    • Good resistance to acids, bases and inorganic media
    • Very low gas permeability, good performance life
  • Material: Thermoplastic soft PVC, transparent
  • Complies with the standards: FDA (21 CFR 177.2601) and GLP
  • Temperature range: -50 to +75 °C
  • Sterilization: Can be autoclaved for 30 min at 1 bar and 120 °C (material may change color) or with ethylene oxide
  • Restriction: Segregation of plasticizers is possible

Used with:

  • Acids: good
  • Lyes: good
  • Solvents: unsuitable
  • Pressure: good
  • Vacuum: good
  • Viscous media: excellent
  • Sterile media: conditional

Shortcut Description

  • wt: Wall thickness
  • id: Inner diameter
  • od: Outer diameter

Product Parameters

Length 1 meter
Inner diameter  6.4 mm
Outer diameter 9.5 mm
Wall thickness (wt) 1.6 mm
Max. Pressure (continuous / short time) 0.5 / 1.5 bar
Suction height 6.7 mH2O
SP quick Advantage 06 / Precision 06 (min/max) 89 – 2,072 ml/min
SP quick Value 06 (min/max) 186 – 1,765 ml/min
SP quick Advantage 01 / Precision 01 (min/max) 17 – 409 ml/min
SP quick Value 01 (min/max) 36 – 413 ml/min
SP standard/vario Advantage 06 / Precision 06 (min/max) 167 – 4,056 ml/min
SP standard/vario Value 06 (min/max) 364 – 4,151 ml/min
SP standard/vario Advantage 01 / Precision 01 (min/max) 33 – 813 ml/min
SP standard/vario Value 01 (min/max) 75 – 861 ml/min
Hei-FLOW Advantage 01 / Precision 01 - pump head C 12 - Cassette small (min/max) not suitable
Hei-FLOW Advantage 01 / Precision 01 - pump head C 4 - Cassette small (min/max) not suitable
Hei-FLOW Value 01 - pump head C 12 - Cassette small (min/max) not suitable
Hei-FLOW Value 01 - pump head C 4 - Cassette small (min/max) not suitable
Hei-FLOW Value 01 - pump head C 8 - Cassette medium (min/max) not suitable
Hei-FLOW Value 01 - pump head C 8 - Cassette large (min/max) 26 – 364 ml/min
Hei-FLOW Advantage 01 / Precision 01 - pump head C 8 - Cassette medium (min/max) not suitable
Hei-FLOW Advantage 01 / Precision 01 - pump head C 8 - Cassette large (min/max) 11 – 329 ml/min
Flow rates pertain to Tygon® (Standard) tubing and water
