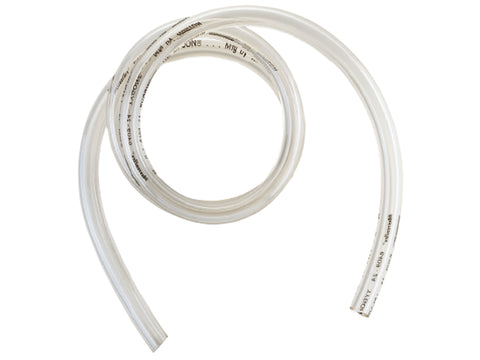

Heidolph Peristaltic Pump Tubing: Tygon (Standard) Extension Tube (Per Meter) (ID 0.51mm, OD 2.31mm, WT 0.9mm)
Heidolph Peristaltic Pump Tubing: Tygon (Standard) Extension Tube (Per Meter) (ID 0.51mm, OD 2.31mm, WT 0.9mm)
Extension tubing for Cassette small
- Application: For standard applications
- Features:
- Non-toxic, non-oxidizing
- Good resistance to acids, bases and inorganic media
- Very low gas permeability, good performance life
- Material: Thermoplastic soft PVC, transparent
- Complies with the standards: FDA (21 CFR 177.2601) and GLP
- Temperature range: -50 to +75 °C
- Sterilization: Can be autoclaved for 30 min at 1 bar and 120 °C (material may change color) or with ethylene oxide•Restriction: Segregation of plasticizers is possible
Used with:
- Acids: good
- Lyes: good
- Solvents: unsuitable
- Pressure: good
- Vacuum: good
- Viscous media: excellent
- Sterile media: conditional
Shortcut Description
- wt: Wall thickness
- id: Inner diameter
- od: Outer diameter
Product Parameters
| Length | 1 meter |
| Inner diameter | 0.51 mm |
| Outer diameter | 2.31 mm |
| Wall thickness (wt) | 0.9 mm |
| Max. Pressure (continuous / short time) | 0.5 / 1.5 bar |
| Suction height | 7 mH2O |
| SP quick Advantage 06 / Precision 06 (min/max) | not suitable |
| SP quick Value 06 (min/max) | not suitable |
| SP quick Advantage 01 / Precision 01 (min/max) | not suitable |
| SP quick Value 01 (min/max) | not suitable |
| SP standard/vario Advantage 06 / Precision 06 (min/max) | not suitable |
| SP standard/vario Value 06 (min/max) | not suitable |
| SP standard/vario Advantage 01 / Precision 01 (min/max) | not suitable |
| SP standard/vario Value 01 (min/max) | not suitable |
| Hei-FLOW Advantage 01 / Precision 01 - pump head C 12 - Cassette small (min/max) | 0.01 – 0.54 ml/min |
| Hei-FLOW Advantage 01 / Precision 01 - pump head C 4 - Cassette small (min/max) | 0.08 – 2 ml/min |
| Hei-FLOW Value 01 - pump head C 12 - Cassette small (min/max) | 0.02 – 0.42 ml/min |
| Hei-FLOW Value 01 - pump head C 4 - Cassette small (min/max) | 0.17 – 2 ml/min |
| Hei-FLOW Value 01 - pump head C 8 - Cassette medium (min/max) | not suitable |
| Hei-FLOW Value 01 - pump head C 8 - Cassette large (min/max) | not suitable |
| Hei-FLOW Advantage 01 / Precision 01 - pump head C 8 - Cassette medium (min/max) | not suitable |
| Hei-FLOW Advantage 01 / Precision 01 - pump head C 8 - Cassette large (min/max) | not suitable |
| Flow rates pertain to | Tygon® (Standard) tubing and water |
