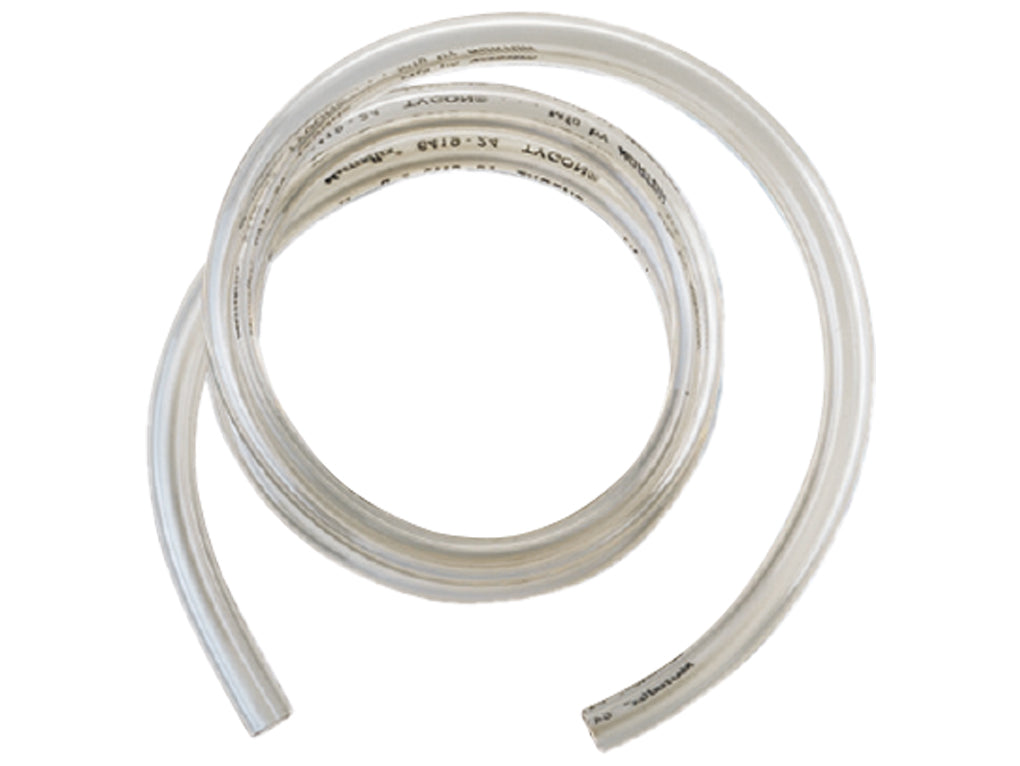

Heidolph Peristaltic Pump Tubing: Tygon 2001 (Food) (ID 1.7mm, OD 4.9mm, WT 1.6mm)
Heidolph Peristaltic Pump Tubing: Tygon 2001 (Food) (ID 1.7mm, OD 4.9mm, WT 1.6mm)
For Single- and Multi-Channel use (not suitable for use with Cassette small)
- Application: Food industry, well suited to products with high fat content
- Features:
- Extremely chemical-resistant | e. g. appropriate for the use of
- polar solvents
- Plasticizer and oil-free
- Superior flex life in peristaltic pumps
- Translucent to ease visual inspection
- Outstanding flexibility
- Material: Thermoplastic tube, transparent
- Complies with the standards: USP Class VI, FDA (21 CFR 177.2600)
- and GLP
- Temperature range: -78 to +71 °C
- Sterilization: Can be autoclaved for 30 min at 1 bar, sterilized by irradiation or with ethylene oxide
Used with
- Acids: excellent
- Lyes: excellent
- Solvents: good
- Pressure: good
- Vacuum: good
- Viscous media: good
- Sterile media: good
Shortcut Description
- wt: Wall thickness
- id: Inner diameter
- od: Outer diameter
Product Parameters
| Length | 1 meter |
| Inner diameter | 1.7 mm |
| Outer diameter | 4.9 mm |
| Wall thickness (wt) | 1.6 mm |
| Max. Pressure (continuous / short time) | 0.7 / 1.7 bar |
| Suction height | 8.8 mH2O |
| SP quick Advantage 06 / Precision 06 (min/max) | 8 – 186 ml/min |
| SP quick Value 06 (min/max) | 17 – 197 ml/min |
| SP quick Advantage 01 / Precision 01 (min/max) | 2 – 40 ml/min |
| SP quick Value 01 (min/max) | 3 – 41 ml/min |
| SP standard/vario Advantage 06 / Precision 06 (min/max) | 11 – 257 ml/min |
| SP standard/vario Value 06 (min/max) | 22 – 249 ml/min |
| SP standard/vario Advantage 01 / Precision 01 (min/max) | 2 – 55 ml/min |
| SP standard/vario Value 01 (min/max) | 5 – 61 ml/min |
| Hei-FLOW Advantage 01 / Precision 01 - pump head C 12 - Cassette small (min/max) | not suitable |
| Hei-FLOW Advantage 01 / Precision 01 - pump head C 4 - Cassette small (min/max) | not suitable |
| Hei-FLOW Value 01 - pump head C 12 - Cassette small (min/max) | not suitable |
| Hei-FLOW Value 01 - pump head C 4 - Cassette small (min/max) | not suitable |
| Hei-FLOW Value 01 - pump head C 8 - Cassette medium (min/max) | 2.17 – 27 ml/min |
| Hei-FLOW Value 01 - pump head C 8 - Cassette large (min/max) | 2 – 27 ml/min |
| Hei-FLOW Advantage 01 / Precision 01 - pump head C 8 - Cassette medium (min/max) | 1 – 26 ml/min |
| Hei-FLOW Advantage 01 / Precision 01 - pump head C 8 - Cassette large (min/max) | 1 – 27 ml/min |
| Flow rates pertain to | Tygon® (Standard) tubing and water |
