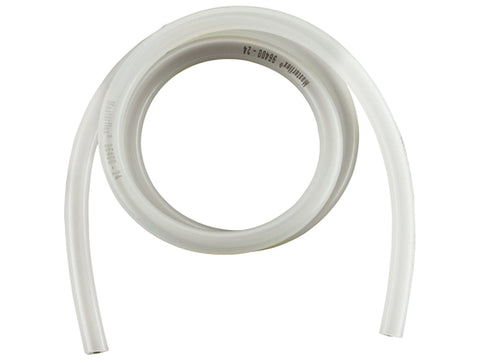

Heidolph Peristaltic Pump Tubing: Silicone (ID 6.4mm, OD 9.5mm, WT 1.6mm)
Heidolph Peristaltic Pump Tubing: Silicone (ID 6.4mm, OD 9.5mm, WT 1.6mm)
For Single- and Multi-Channel use (not suitable with cassette small)
- Application: Platinum-coated silicone hose for use in pharmaceuticals and biology
- Features:
- Extremely smooth interior prevents bacterial growth
- Biocompatible, minimal adsorption and absorption
- Best flow properties, high temperature stability
- Absolutely inert, softener-free
- Material: Polydimethylsiloxane with siliceous earth and silicone additives; translucent white; excellent resistance to initial pressure
- Complies with the standards: USP Class VI, FDA, meets GLP and NSF
- Temperature range: -80 to +200 °C
- Sterilization: Can be autoclaved for 30 min at 1 bar or sterilized by irradiation
- Restriction: Not suitable for concentrated solvents, oils, acids or dilute caustic soda; relatively high permeability to gas
Used with
- Acids: conditional
- Lyes: conditional
- Solvents: unsuitable
- Pressure: satisfactory
- Vacuum: good
- Viscous media: satisfactory
- Sterile media: excellent
Shortcut Description
- wt: Wall thickness
- id: Inner diameter
- od: Outer diameter
Product Parameters
| Length | 1 meter |
| Inner diameter | 6.4 mm |
| Outer diameter | 9.5 mm |
| Wall thickness (wt) | 1.6 mm |
| Max. Pressure (continuous / short time) | 0.5 / 1.5 bar |
| Suction height | 6.7 mH2O |
| SP quick Advantage 06 / Precision 06 (min/max) | 89 – 2,072 ml/min |
| SP quick Value 06 (min/max) | 186 – 1,765 ml/min |
| SP quick Advantage 01 / Precision 01 (min/max) | 17 – 409 ml/min |
| SP quick Value 01 (min/max) | 36 – 413 ml/min |
| SP standard/vario Advantage 06 / Precision 06 (min/max) | 167 – 4,056 ml/min |
| SP standard/vario Value 06 (min/max) | 364 – 4,151 ml/min |
| SP standard/vario Advantage 01 / Precision 01 (min/max) | 33 – 813 ml/min |
| SP standard/vario Value 01 (min/max) | 75 – 861 ml/min |
| Hei-FLOW Advantage 01 / Precision 01 - pump head C 12 - Cassette small (min/max) | not suitable |
| Hei-FLOW Advantage 01 / Precision 01 - pump head C 4 - Cassette small (min/max) | not suitable |
| Hei-FLOW Value 01 - pump head C 12 - Cassette small (min/max) | not suitable |
| Hei-FLOW Value 01 - pump head C 4 - Cassette small (min/max) | not suitable |
| Hei-FLOW Value 01 - pump head C 8 - Cassette medium (min/max) | not suitable |
| Hei-FLOW Value 01 - pump head C 8 - Cassette large (min/max) | 26 – 364 ml/min |
| Hei-FLOW Advantage 01 / Precision 01 - pump head C 8 - Cassette medium (min/max) | not suitable |
| Hei-FLOW Advantage 01 / Precision 01 - pump head C 8 - Cassette large (min/max) | 11 – 329 ml/min |
| Flow rates pertain to | Tygon® (Standard) tubing and water |
