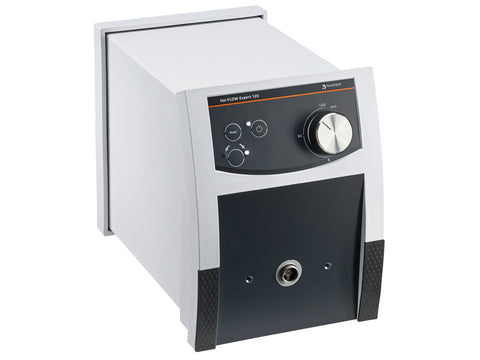

Heidolph Peristaltic Pump Hei-FLOW Expert 120
Heidolph Peristaltic Pump Hei-FLOW Expert 120
The pump drive of the model 120 of the Hei-FLOW Expert series can be operated with either single-channel or multi-channel pump heads. The flow rates with single-channel pump heads are in the range of 0.38 — 813 ml/min; with multi-channel pump heads from 0.005 — 329 ml/min.
By integrating an analog interface, it is possible to control all functions externally. In addition, an optional foot switch can be adapted to enable dosing by foot pressure. Hands thus remain free to perform other work, for example, to hold the tubing and the vessel.
A speed of 5 — 120 rpm with a control accuracy of ±0.5% guarantees optimum process results.
Multi-Channel Operation
- Increase your throughput by running up to 12 individual cassettes on one single pump drive and pump head system
- Separate metering into multiple vessels with different feed rates in a single operation by using different tubing dimensions to adjust flow rate
- Save time: tubing change is done in just seconds
- In addition to standard pump heads which feature a 4-roller system you can choose 8-roller pump heads for low pulsation
- Change your cassettes easily, even during operation – there are no restrictions
- Cassette adjustments and changes are simple, just click in place
- No additional purchase of a pump drive needed: upgrade your single-channel pump drive with just one adaptor for multi-channel use and pick the head/cassette configuration that matches your application needs
Product Parameters
| Permissible ambient conditions | 5 - 31 °C at 80% rel. humidity 32 - 40 °C decreasing linearly up to max. 50% rel. humidity |
| Weight | 7.6 kg |
| Protection class (EN 60529) | IP 54 |
| Supply Power | 100 W |
| Dimensions (w/d/h) | 166 x 256 x 225 mm |
| Flow rates single-channel pumps | 0.38 – 813 ml/min |
| Flow rates multi-channel pumps | 0.005 – 329 ml/min |
| Flow rate accuracy (water without counter pressure) | ±3.5 % |
| Speed range | 5 - 120 rpm |
| Speed setting | scale |
| Electronic speed control | digital |
| Control accuracy motor | ±0.5 % |
| Select direction of rotation | CW / CCW |
| Motor power | 100 W |
| Analog interface | for speed 0 - 10 V / 4 - 20 mA direction of rotation start/stop |
| Digital Interface | - |
| Flow rate indicator | - |
| Volume dosing | - |
| Interval dosing | - |
| Smooth start | - |
| Electronic brake | - |
| Foot-pedal connection | yes |
| Continuous operation (24/7) | yes |
| Safety feature | electronic current limiter and overheat protection |
