Heidolph Peristaltic Pump Hei-FLOW Core 120
SKU: 036150010

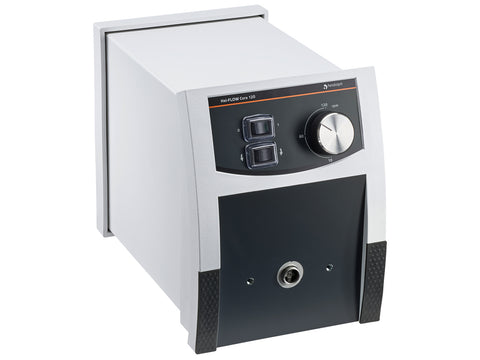

Heidolph Peristaltic Pump Hei-FLOW Core 120
This peristaltic pump is ideal for the simple conveying of all media. The pump drive of this model makes it possible to switch between a single channel and multi-channel pump head. By simply flipping the switch, it can also be conveyed in an anti-clockwise direction.
Depending on the adapted pump head, a flow rate of 0.83 - 861 ml/min for the single-channel and 0.005 - 364 ml/min for the multi-channel pump head is guaranteed. The Core 120 conveys with a control accuracy of ± 2% at a speed range of 10 - 120 rpm.
Multi-Channel Operation
- Increase your throughput by running up to 12 individual cassettes on one single pump drive and pump head system
- Separate metering into multiple vessels with different feed rates in a single operation by using different tubing dimensions to adjust flow rate
- Save time: tubing change is done in just seconds
- In addition to standard pump heads which feature a 4-roller system you can choose 8-roller pump heads for low pulsation
- Change your cassettes easily, even during operation – there are no restrictions
- Cassette adjustments and changes are simple, just click in place

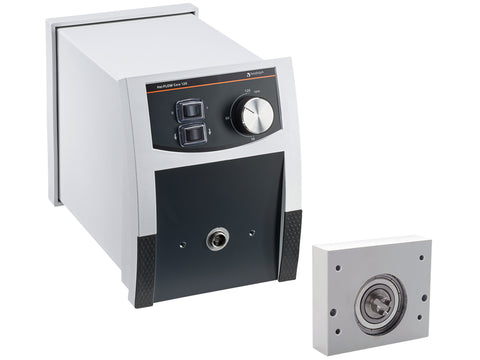

- No additional purchase of a pump drive needed: upgrade your single-channel pump drive with just one adaptor for multi-channel use and pick the head/cassette configuration that matches your application needs
Product Parameters
| Permissible ambient conditions | 5 - 31 °C at 80% rel. humidity 32 - 40 °C decreasing linearly up to max. 50% rel. humidity |
| Weight | 7.6 kg |
| Protection class (EN 60529) | IP 54 |
| Supply Power | 100 W |
| Dimensions (w/d/h) | 166 x 256 x 225 mm |
| Flow rates single-channel pumps | 0.83 – 861 ml/min |
| Flow rates multi-channel pumps | 0.005 – 364 ml/min |
| Flow rate accuracy (water without counter pressure) | ±5 % |
| Speed range | 10 - 120 rpm |
| Speed setting | scale |
| Electronic speed control | digital |
| Control accuracy motor | ±2 % |
| Select direction of rotation | CW / CCW |
| Motor power | 100 W |
| Analog interface | - |
| Digital Interface | - |
| Flow rate indicator | - |
| Volume dosing | - |
| Interval dosing | - |
| Smooth start | - |
| Electronic brake | - |
| Foot-pedal connection | - |
| Continuous operation (24/7) | yes |
| Safety feature | overheat protection |
