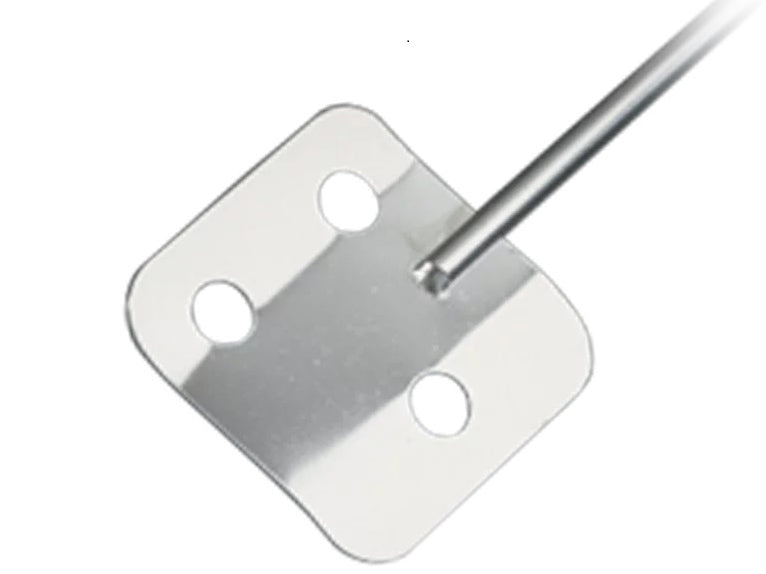

Heidolph Overhead Stirrer Impeller BR 13 Square-Blade
Heidolph Overhead Stirrer Impeller BR 13 Square-Blade
Due to its blade dimensions, the square-blade impeller BR 13 is ideal for loosening and homogenizing in vessels with the following characteristics:
- ideal vessel diameter: 140 mm
- ideal ground clearance: 7 mm
- ideal filling level: 140 mm
- ideal volume: 2,200 ml
The square-blade impeller BR 13 has a total length of 450 mm and is made of stainless steel. Its stirring shaft has a diameter of 8 mm.
Product Parameters
| Blade size | 70 x 70 mm |
| Length | 450 mm |
| Material | Stainless steel V4A |
| Shaft diameter | 8 mm |
| Max. rotation speed | 800 rpm |
