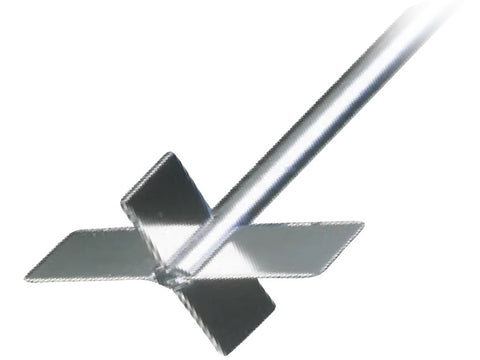

Heidolph Overhead Stirrer Impeller BR 10 Cross-Blade
SKU: 036304390
Heidolph Overhead Stirrer Impeller BR 10 Cross-Blade
Due to its blade dimensions, the cross-blade impeller BR 10 is ideally suited for solutions, emulsions and suspensions in vessels with the following characteristics:
- ideal vessel diameter: 100 mm
- ideal ground clearance: 5 mm
- ideal filling level: 100 mm
- ideal volume: 800 ml
The cross-blade impeller BR 10 has a total length of 400 mm and is made of stainless steel. Its stirring shaft has a diameter of 8 mm.
Product Parameters
| Blade | 50 x 12 mm |
| Length | 400 mm |
| Material | Stainless steel V4A |
| Shaft diameter | 8 mm |
| Max. rotation speed | 2,000 rpm |
