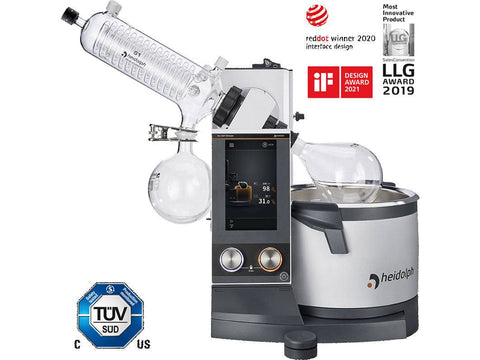

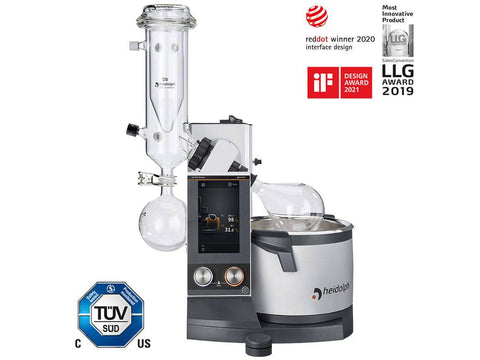

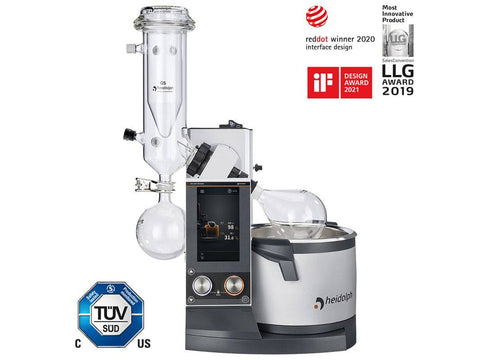

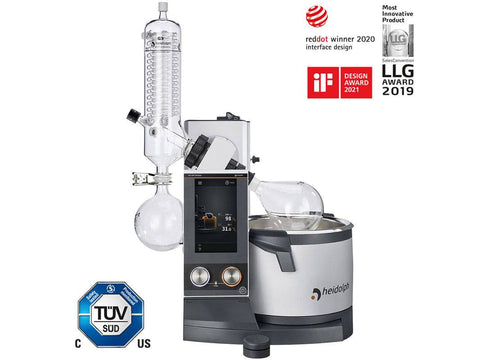

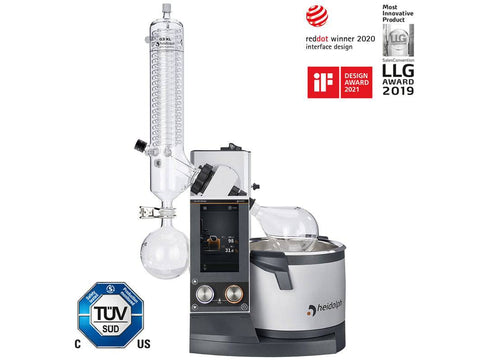

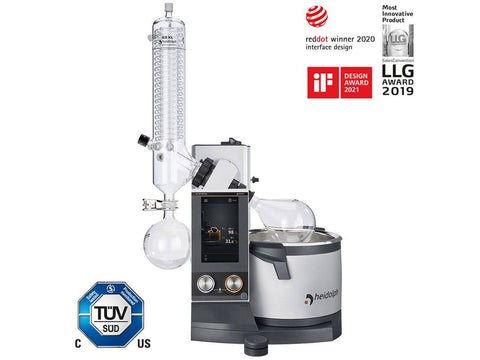

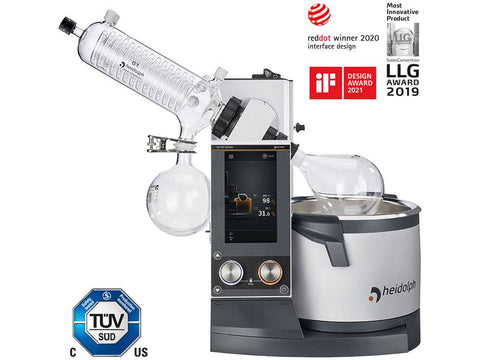

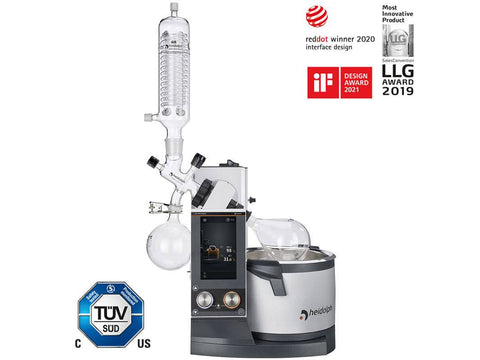

Heidolph Hei-VAP Ultimate Rotary Evaporator

  • $ 10,83495

    Product SKU: 036041045

  • Save $ 1,30100


Heidolph Hei-VAP Ultimate Rotary Evaporator

Precise setting of rotation speed and heating bath temperature on the digital touch display or – for quick access during an active process – directly via the knobs on the operating panel.

  • Central operating panel with 7“ touch display
  • Clear display of all values (Basic and Advanced modes)
  • With timer, limitation of max. temperature, multilingual menu and text display for error messages
  • Separate knobs for rotation and heating with locking function to prevent accidental readjusting
  • LED ring lights and pictogram to display the activity even from a distance
  • Integrated solvent library to facilitate adjustment of the required vacuum on an external vacuum controller
  • USB and Micro SD plus LAN / RS 232 interfaces (Lab 4.0 ready)
  • Optional display of vapor temperature
  • Subsequent upgrade to Hei-VAP Ultimate Control possible, including vacuum and chiller control.

Product Parameters

Rotation speed indicator 7" LCD color graphic display
Permissible ambient conditions 5 – 31 °C at 80 % rel. humidity 32 – 40 °C decreasing lineary up to max 50% rel. humidity
Protection class (EN 60529) IP 20
Lift Hand lift
Height adjustment speed manual
Height adjustment 155 mm
Drive brushless DC motor with electronic speed control
Heating capacity 1,300 W
Temp. range heating bath 20 – 210 °C
Temperature accuracy bath ±1K
Overheat protection bath cut-off at 5 °C over set temperature via separate PT 1000
Bath temperature setting 7" LCD color graphic display
Heating bath temperature control electronic / digital
Secondary overtemp. cut off 250 °C
Material heating bath stainless steel V4A
Diameter heating bath 255 mm
Volume heating bath Up to 6 liter (2.2 to 4.5 liter recommended filling volume, depending on the flask size and immersion angle used)
Display vapor temperature Yes
Required accessories for display vapor temperature Vapor temperature sensor
Integrated vacuum controller -
Timer Yes
Programmable ramps Yes
Supply Power 1,400 W
Weight without glassware assembly 15 kg
Dimensions with glassware set G3 (w/d/h) 739 x 532 x 887 mm
Dimensions with glassware set G3 XL (w/d/h) 739 x 532 x 920 mm
Condensing surface 1,400 cm²
Condensing surface XL condenser 2,200 cm²
Max. size evaporating flask 5 l
Rotation speed range 10 - 280 rpm
Integrated Hei-CHILL controller -
Vacuum program Dynamic AUTOaccurate requires AUTOaccurate sensor -
Solvent libary Yes
