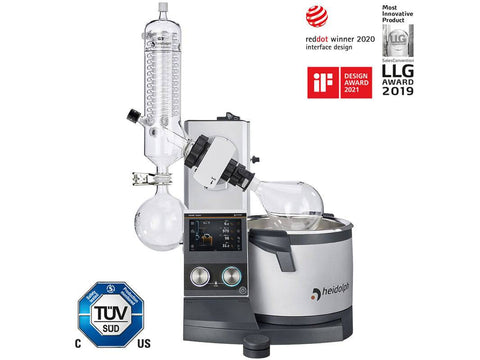

Heidolph™ Hei-VAP Expert Control Rotary Evaporator
Heidolph™ Hei-VAP Expert Control Evaporator allows precise setting of rotation speed and heating bath temperature on the 5 in. digital touch display or, for quick access during an active process, directly via the knobs on the operating panel.
Heidolph products are not eligible for the welcome discount.
Specifications
| Capacity (Metric) | 5 L Evaporating Flask, 4.5 L Bath |
|---|---|
| Display | 5 in. LCD Color Graphic Display |
| Electrical Requirements | 115 V |
| Frequency | 50/60 Hz |
| Includes |
Glassware set, Rotary evaporator |
| Mfr. No. | Condenser Type | Glassware Assembly Type | Model | Price |
|---|---|---|---|---|
| Heidolph™ 036041025 |
Diagonal Condenser | Coated G1 diagonal glassware | Hand Lift |
Each for $11,717.00
|
| Heidolph™ 036041035 |
Diagonal Condenser | Coated G1 diagonal glassware | Motor Lift |
Each for $13,000.00
|

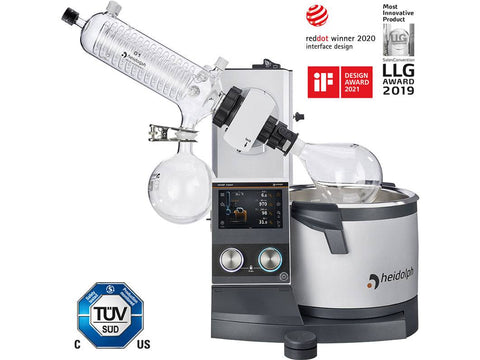

| Heidolph™ 036041020 |
Diagonal Condenser | G1 diagonal glassware | Hand Lift |
Each for $11,564.00
|

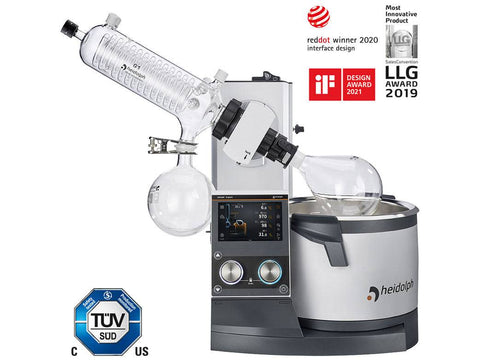

| Heidolph™ 036041030 |
Diagonal Condenser | G1 diagonal glassware | Motor Lift |
Each for $11,941.00
|
| Heidolph™ 036041028 |
Dry Ice Condenser | Coated G5 dry ice condenser | Hand Lift |
Each for $13,814.00
|
| Heidolph™ 036041038 |
Dry Ice Condenser | Coated G5 dry ice condenser | Motor Lift |
Each for $14,243.00
|

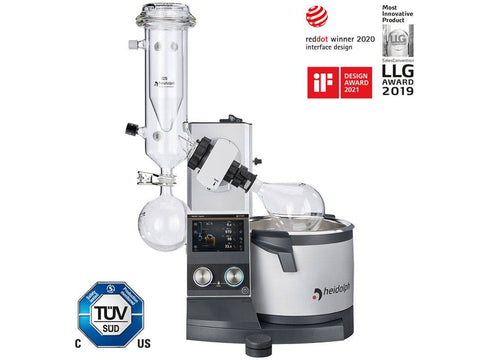

| Heidolph™ 036041023 |
Dry Ice Condenser | G5 dry ice condenser | Hand Lift |
Each for $12,722.00
|

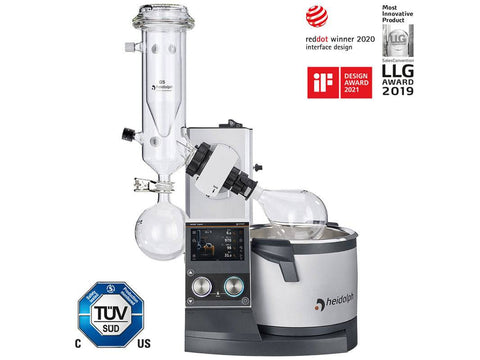

| Heidolph™ 036041033 |
Dry Ice Condenser | G5 dry ice condenser | Motor Lift |
Each for $13,803.00
|
| Heidolph™ 036041029 |
Reflux | Coated G6 vertical glassware | Hand Lift |
Each for $14,056.00
|
| Heidolph™ 036041039 |
Reflux | Coated G6 vertical glassware | Motor Lift |
Each for $14,597.00
|

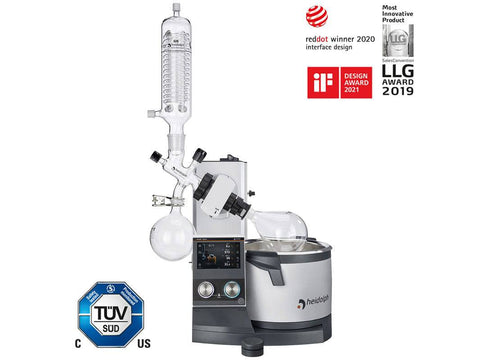

| Heidolph™ 036041024 |
Reflux | G6 vertical glassware | Hand Lift |
Each for $13,333.00
|
| Heidolph™ 036041034 |
Reflux | G6 vertical glassware | Motor Lift |
Each for $14,121.00
|
| Heidolph™ 036041026 |
Vertical | Coated G3 vertical glassware | Hand Lift |
Each for $12,245.00
|
| Heidolph™ 036041036 |
Vertical | Coated G3 vertical glassware | Motor Lift |
Each for $13,203.00
|
| Heidolph™ 036041021 |
Vertical | G3 vertical glassware | Hand Lift |
Each for $11,993.00
|

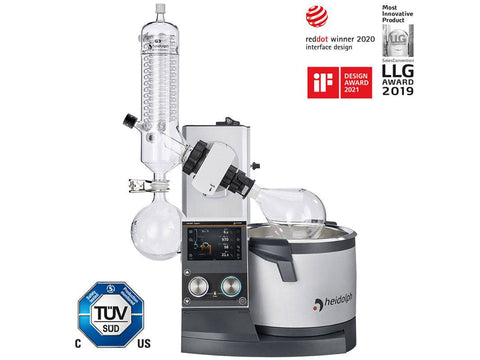

| Heidolph™ 036041031 |
Vertical | G3 vertical glassware | Motor Lift |
Each for $12,498.00
|

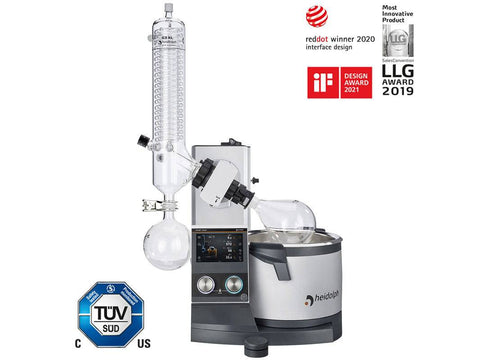

| Heidolph™ 036041027 |
Vertical XL | Coated G3 XL vertical glassware | Hand Lift |
Each for $12,801.00
|
| Heidolph™ 036041037 |
Vertical XL | Coated G3 XL vertical glassware | Motor Lift |
Each for $13,828.00
|
| Heidolph™ 036041022 |
Vertical XL | G3 XL vertical glassware | Hand Lift |
Each for $12,295.00
|

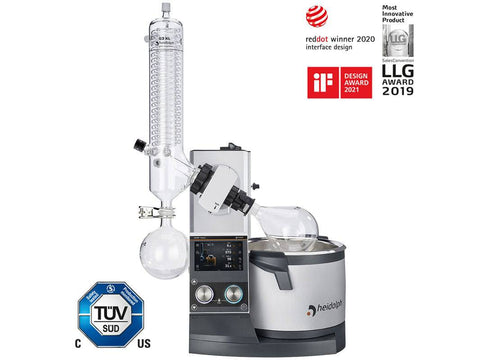

| Heidolph™ 036041032 |
Vertical XL | G3 XL vertical glassware | Motor Lift |
Each for $13,054.00
|
Description
- Central operating panel with 5 in. touch display for controlling the entire system including the vacuum and the cooling temperature
- Clear display of all values
- With timer, limitation of max. temperature, multilingual menu and text display for error messages
- Separate knobs for rotation and heating with locking function to prevent accidental readjusting
- LED ring lights and pictogram to display the activity even from a distance
- Integrated solvent library to facilitate adjustment of the required vacuum on an external vacuum controller
- Expandable solvent library. Transfer favorites to other devices using a USB stick
- Define and save own evaporation processes (ramps)
- Automatically evaporate with the Dynamic AUTOaccurate Program (DAA)
- Direct access to two favorites on the start screen
- USB and Micro SD interfaces
- Optional display of vapor temperature
- Includes vacuum and chiller control
Specifications
| 5 L Evaporating Flask, 4.5 L Bath | |
| 115 V | |
| Glassware set, Rotary evaporator | |
| Rotary Evaporator | |
| ±1°C | |
| 1400 w | |
| Display | 5 in. LCD Color Graphic Display |
| Frequency | 50/60 Hz |
| Material | Stainless Steel V4A Bath |
| Speed | 10 to 280 rpm |
| Temperature Range (Metric) | 20°C to 210°C |
