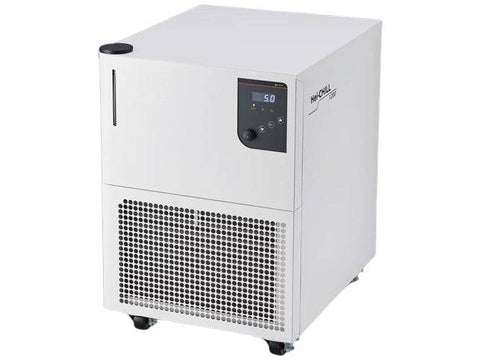

Heidolph Hei-Chill 1200 115V
Heidolph Hei-Chill 1200 115V
With rollers for placement under a lab bench.
Comes with a cooling capacity of 1200 W*
- Clearly arranged control elements, large LED display, membrane keypad, and window for monitoring the tempering liquid level
- Automatic start and shut down feature
- Temperature range from -10 °C to +40 °C
- Temperature stability of ±0.5 K
- Cooling capacity at +20 °C; 1200 W
- Footprint of chiller: W 450 × D 585 × H 640 mm
* Cooling output at 20 °C measured with ethanol
Product Parameters
| Admissible Session | 5 – 31 °C at 80 % rel. humidity 32 – 40 °C decreasing lineary up to max 50% rel. humidity |
| Weight | 64 kg |
| Protection class (EN 60529) | IP 32 |
| Display | 7-segment, LED |
| Temperature range | -10 – +40 °C |
| Thermal fluid fill volume | 7 – 14 l |
| Cooling capacity at +20 °C (20 °C ambient temp.) | 1,200 W |
| Cooling capacity at 0 °C (20 °C ambient temp.) | 750 W |
| Cooling capacity at -10 °C (20 °C ambient temp.) | 400 W |
| Dimensions (w/d/h) | 450 x 550 x 650 mm |
| Digital Interface | RS 232 |
| Noise level | < 70 dB(A) |
| Ambient temperature range (storage) | 5 – 40 °C |
| Pump pressure max. | 1.3 bar |
| Pump flow max. | 20 l/min |
| Overvoltage Category | II |
| Alarm output connection | max. 30 V DC, 0.2 A |
| Contamination level | 2 |
| Distance to surroundings (front and rear) | 40 cm |
| Classification according to DIN 12876-1 | I/NFL |
| Refrigerant | R-134a |
| GWP(100a) according to IPCC IV | 1430 |
| Transportation temperature range | -20 – 60 °C |
| Cooling | Air-cooled |
| Standard supply voltage | 230 V (50 Hz) or 115 V (60 Hz) |
| Rated power intake (230 V / 115 V) | 1,150 W / 1,100 W |
| Cooling output | 1,200 W |
| Temperature stability | ± 0.5 K |
