Heidolph Distimatic Pro 24/7 Industrial (For Glassware Set R)
Heidolph Distimatic Pro 24/7 Industrial (For Glassware Set R)
For distilling high boilers and operating under reflux: Version with adapter for Hei-VAP Industrial with R glassware

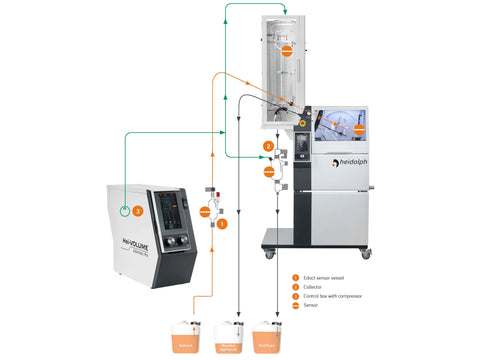

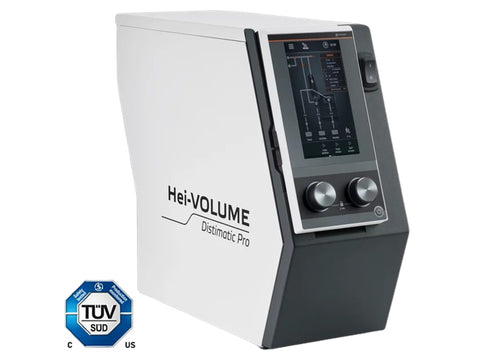

You can enter the parameters for the sensor- or time-controlled filling of the rotary flask via the removable 7“ touchscreen control panel. The emptying times of the coated collector vessel with condensate cooling (approx. 1 l) and the residue from the rotary flask by the compressor can also be programmed here. In addition, you can start the automatic cleaning mode and manual operation. The tower with the integrated compressor of the Hei-VOLUME Distimatic 24/7 can be mounted directly with all components on a Hei-VAP Industrial large-scale rotary evaporator using the bracket supplied.
In combination with the corresponding evaporator system, the Hei-VOLUME Distimatic Pro 24/7 automatic module enables efficient, unattended operation around the clock for every area of application.
For the greatest possible safety and a wide range of applications, all parts that come into contact with the media, including the supplied tubing, are made of chemical-resistant materials.
Product Parameter
| Permissible ambient conditions | 5 – 31 °C at 80 % rel. humidity 32 – 40 °C decreasing lineary up to max 50% rel. humidity |
| Weight | 17 kg |
| Protection class (EN 60529) | IP 42 (Housing and control panel) |
| Display | Touchdisplay; Digital; detachable |
| Power input | 1500 |
| Dimensions (w/d/h) | 186 x 429 x 521 mm |
| Compatibility | Hei-VAP Industrial |
| Automatic refill of sample | yes |
| Automatic discharge of condensate | yes |
| Automatic drainage of residue | yes |
| Emergency-Stop button | on-off switch and optional |
| Functional Principle | Overpressure |
