Gaskatel Test Lead Multilam Plugs Blue 2/4 mm 0.5 mm² 1000 mm
Couldn't load pickup availability
Still have questions? Ask our experts!
Gaskatel Test Lead Multilam Plugs Blue 2/4 mm 0.5 mm² 1000 mm
Buy Gaskatel electrochemistry Products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of Gaskatel GmbH.
Introduction
This is a Connector lead for HydroFlex and Mini-HydroFlex

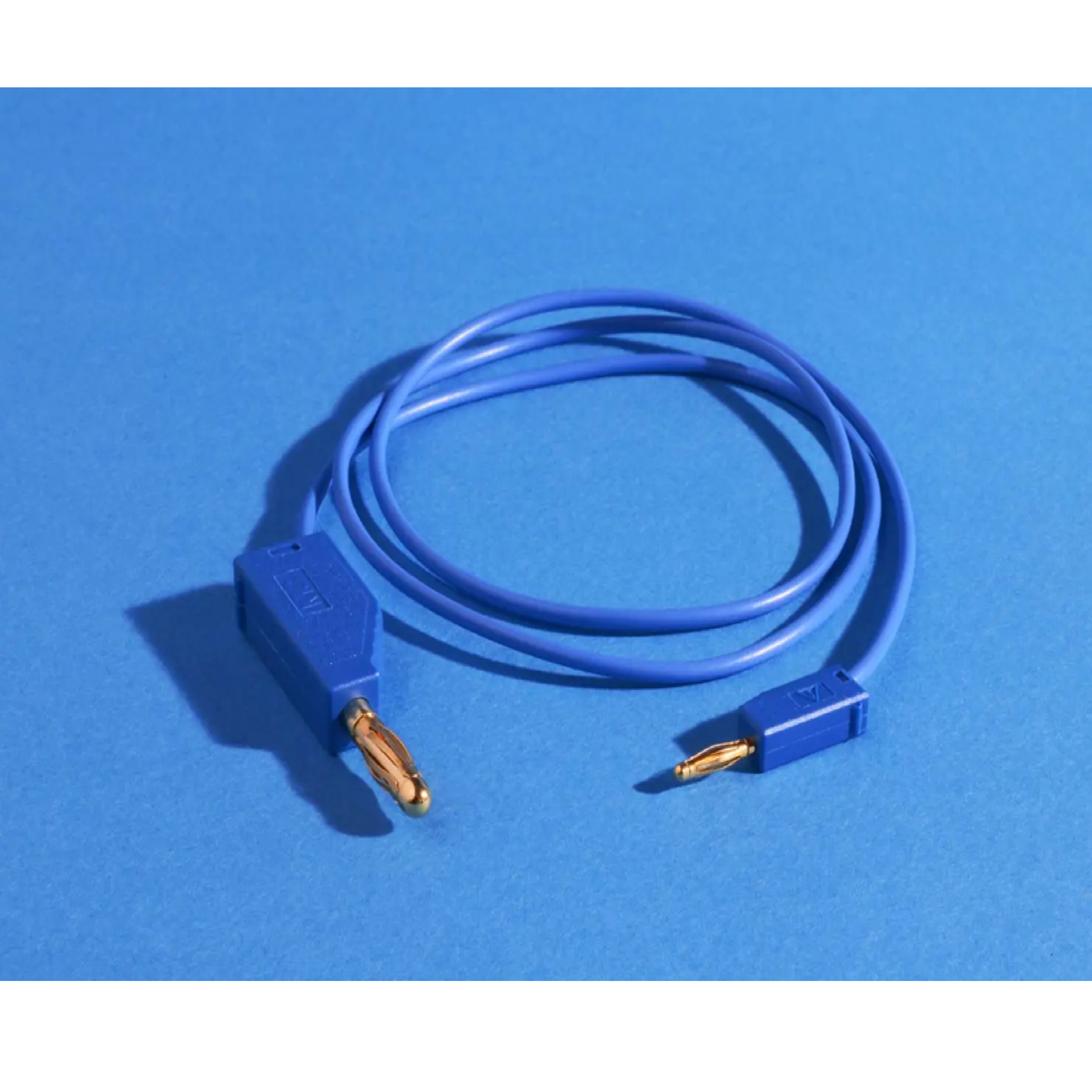

Highly flexible adapter cable. One side with a Ø 2 mm stackable plug, the other side with a Ø 4 mm stackable connector.
All Gaskatel cables, adapters and plugs are CE-certified:
EC_Declaration-of-Conformity_cables_adapters_multilam-plugs_Gaskatel
Specifications
|
Specifications
|
Description
|
|---|---|
|
Color
|
Blue |
|
Connection 1
|
2 mm multilam plug, straight |
|
Connection 2
|
4 mm multilam plug, straight |
|
Touch Safe
|
No |
|
Cable Length
|
1000 mm |
|
Cable Cross Section
|
0.5 mm2 |
|
Contact Surface
|
Gold-plated |
|
Isolation
|
PVC |
|
Rated Voltage
|
30 VAC, 60 VDC |
|
Rated Current
|
10 A |
|
Stackable
|
Yes |
|
ROHS Conformity
|
Yes |
|
SVHC Free
|
Yes |
MSE Supplies offers a variety of electrochemistry products. Please contact us for more information.
Please note consumable products are non refundable or eligible for return. Quality issues or concerns must be reported within 1 week of delivery.
