Fused Quartz Window Glass - JGS3 25/25/1 MM

Fused Quartz Window Glass - JGS3 25/25/1 MM

Buy Redox.me products from MSE Supplies at the best value.

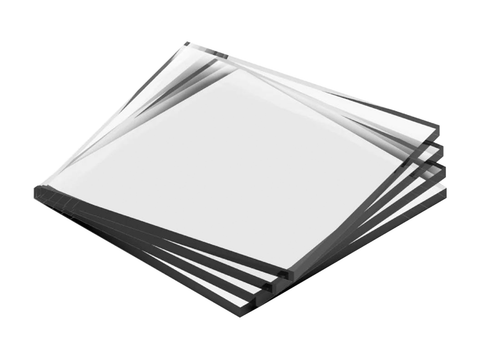

This optical grade fused quartz window (JGS3) combines excellent physical properties with outstanding optical characteristics. It is a preferred material in transmission spectro-electrochemistry in the band from 260 nm to 3500 nm. It is a bubble-free quartz window with a very high content of pure silica (SiO2 ≥ 99.9).

Application note

It is resistant to water and strong acids (excluding hydrofluoric acid) and low resistance (as compared with other types of glass) to alkali. Quartz glass has a high melting point and a low coefficient of thermal expansion, which makes it resistant to sudden changes in temperature (thermal shock resistance). It is commonly used as a glass window in spectro-electrochemical cell or as a substrate for samples that requires high temperature post-treatment.

Specification

Size: 25 mm x 25 mm
Thickness: 1 mm
Transmission range: 260 nm - 3500 nm (UV-B, UV-A, Vis, NIR, IR)
Medium transmission ratio: Tavg > 85 %
OH- content: 5 ppm
Impurity content: 40 - 50 ppm
Max temperature: 1250 deg C

Product Includes

1 optical grade fused quartz window (JGS3)
