Fischer FERITSCOPE® DMP30 Measurement of the Ferrite Content in Austenitic and Duplex Steel

Fischer FERITSCOPE® DMP30 Measurement of the Ferrite Content in Austenitic and Duplex Steel

Reliable Ferrite Content Measurement for Demanding Environments
FERITSCOPE® DMP30 – Precision, Durability, and Flexibility in One Compact Device

View Data Sheet

Download Quick Guide (Operation Manual)

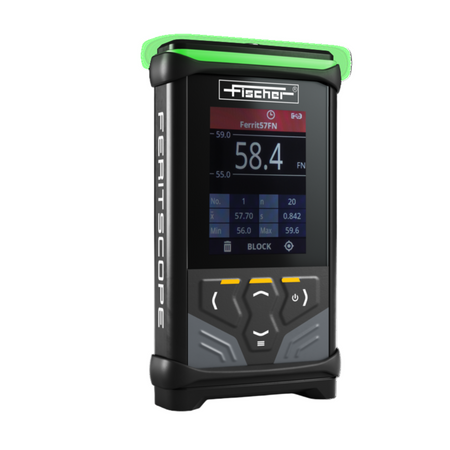

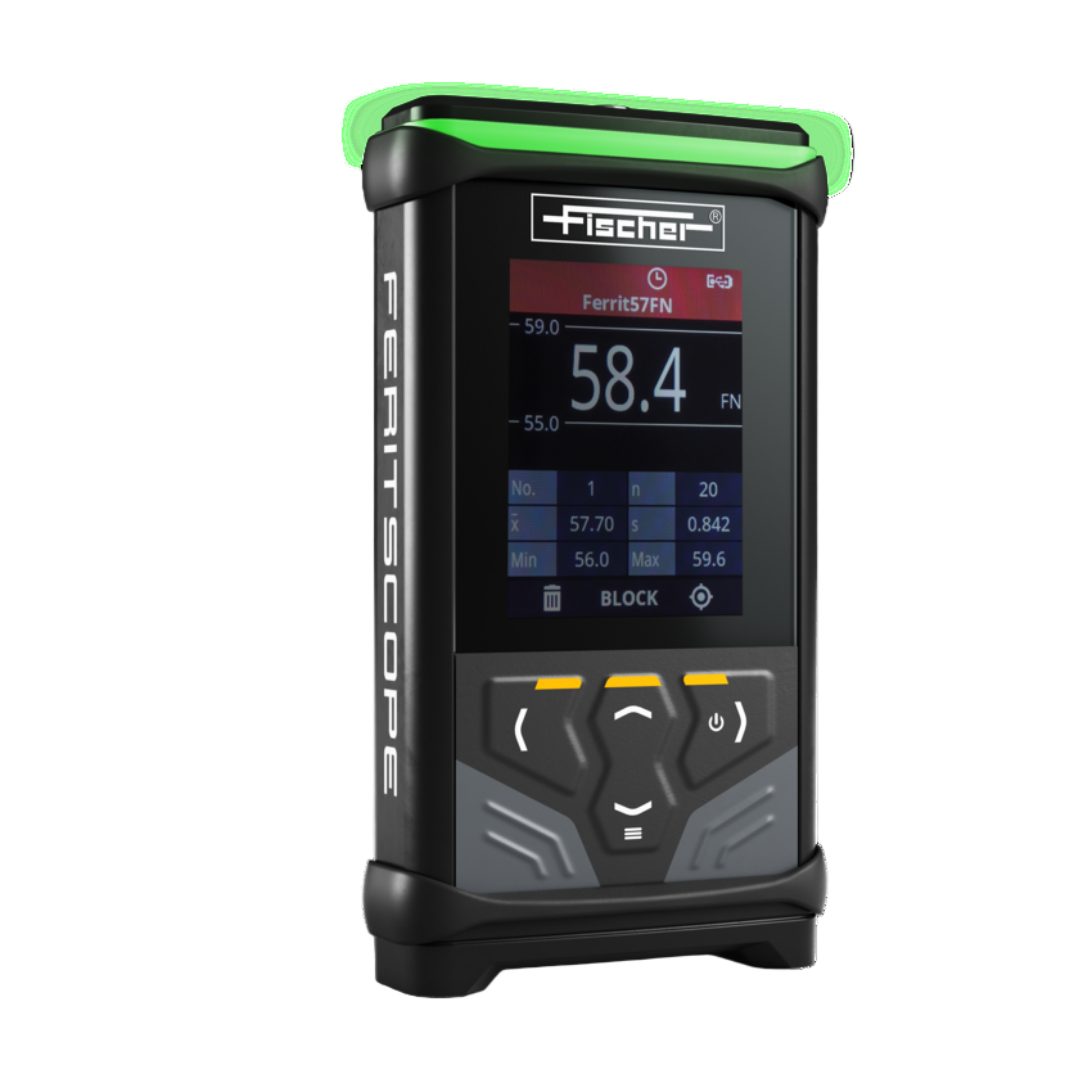

Engineered for performance and built to last, the FERITSCOPE® DMP30 is a high-precision handheld instrument designed to measure ferrite content in austenitic and duplex stainless steels using the magnetic induction method. In addition to delta ferrite, the device also identifies other magnetizable phases such as deformation martensite, ensuring comprehensive microstructural evaluation.

With a rugged, IP64-rated aluminum housing, intuitive touchscreen interface, and extended battery life, the FERITSCOPE® is perfectly suited for use in challenging industrial environments—from chemical plants to power generation facilities. Paired with the new FISIQ® T software and the flexibility of digital and analog probes, it offers the versatility and reliability professionals need in the field or lab.

Key Features

• High-performance, portable device for precise measurement of ferrite content in duplex and austenitic steels
• Based on the magnetic inductive measurement principle
• Stores up to 250,000 readings organized in 2,500 measurement batches
• Rugged IP64-rated aluminum housing with Gorilla Glass and protective bumpers for field durability
• Swappable Li-ion battery offers over 24 hours of operation
• Seamless data transfer via USB-C or Bluetooth
• Real-time limit monitoring with visual, auditory, and haptic alerts
• Cal Check function for on-the-spot calibration validation
• Compatibility with Fischer’s digital and analog probes, supported by the F-adapter for continued use of legacy probes
• Integrated with the powerful FISIQ® T software for comprehensive data management and reporting

FISIQ® T – Smarter Data Management

Streamline your measurement workflow with automatic recognition, seamless sync, and fast reporting.

• Modern, efficient UI for quick, intuitive use
• Auto device & probe recognition for immediate, accurate capture and sync
• Direct export to Excel/CSV and other formats—real time or post-measurement via USB-C or Bluetooth
• Custom reports & logs using built-in templates or your branded layouts

Digital Probes & F-Adapter — Accuracy & Flexibility

In-house engineered probes for consistent results across tough applications.

• High accuracy & repeatability for critical measurements
• USB-C & Bluetooth for modern, future-ready connectivity
• F-Adapter support to keep using trusted analog Fischer probes
• IP64 rugged build for durability and long service life

FERITSCOPE® DMP30 is your all-in-one solution for ferrite measurement—powerful, portable, and purpose-built for professionals who demand accuracy without compromise.

Kit Includes

• DMP30 Ferrite Content Meter
• D-F-Fe Straight Probe with 59" (1.5m) Cable and Digital USB Connector
• Set of 5 Ferrite Content Standards, 0.3 FN-140 FN (0.3-105 Fe%)
• Interface Cable
• Rechargeable Battery
• Bluetooth dongle
• Carrying Strap with Panic Lock
• FISIQ® T software *on USB drive
• User Manual and Calibration Certificate *on USB drive
• Carrying Case
