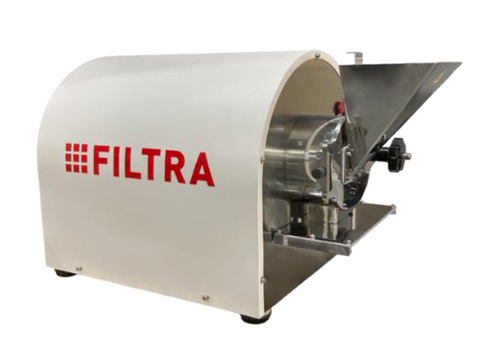

FILTRA ARES FML-2000 Laboratory Grinding Mill
SKU: FML-2000
FILTRA ARES FML-2000 Laboratory Grinding Mill
A compact impact mill for grinding small quantities of product in laboratory tests. Designed to crush fragile, hard, or semi-hard solid products such as glass, ceramics, feed, rocks, minerals, or electronic waste. The material is fed through a vertical inlet. The door is equipped with a quick-release lock and a safety micro-switch that activates when the rotor and blades are in operation.
- It consists of 3 blades made of long-lasting steel.
- Interchangeable round perforation screen of different diameters.
- Front and loading hopper built in stainless steel AISI-304, with mirror polished finish.
Benefits
- Easy cleaning thanks to the interchangeable toothed crown and sieves without the need of tools.
- Potentiometer to regulate motor velocity.
- Removable polished stainless steel loading hopper and collecting drawer, for ease of cleaning.
- Very fine end granulometry.
Package
- Grinding mill.
- Connecting cable.
- Tray of methacrylate.
- User manual.
- CE declaration of conformity.
Specification
| Timer | 0-99 min |
| Power Supply | 220V/60Hz |
| Power (kW) | 2.6 |
| Speed (rpm) | 3000 |
| Grinding Chamber Dimensions (mm) | Ø 150×88 |
| Load Hopper Volume (L) | 5.5 |
| Grinding Chamber Volume (L) | 1.2 |
| Collector Capacity (L) | 2 |
| Weight (kg) | 72 |
| Hammers | 3 |
| Sieve Sizes (Ø mm) | 0.5, 0.8, 1, 1.5, 2, 2.5, 3, 4, 5, 6 |
| Maximum Particle Feed Size (mm) | 20 |
| Maximum Hardness | 6 |
| General Dimensions (mm) | 520x700x700 |
MSE Supplies offers a range of Laboratory Sieve. Please contact us for more information.
