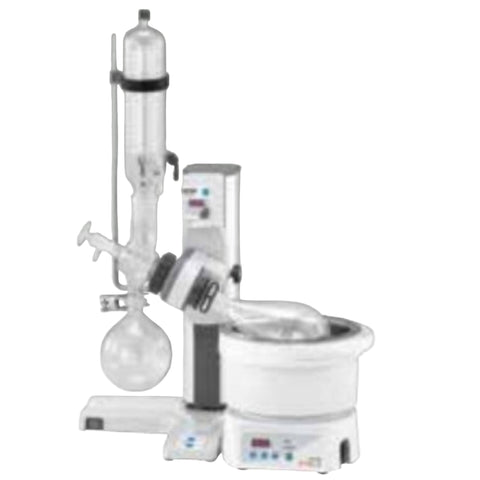

Eyela Bench Top Rotary Evaporator Model N1210BV-W
SKU: 269719
Eyela Bench Top Rotary Evaporator Model N1210BV-W
Space-saving and highly efficient Type V vertical condenser
- The wide cooling area of the vertical double spiral condenser (0.146 m²) allows for excellent recovery rates from small flasks to large volumes.
- We offer a combination of water-only and Water • oil baths. Choose the configuration that best suits your application.
Specifications
|
Model |
N-1210BV-W |
|
Bath type |
With water bath |
|
Rotation speed range |
5 to 280rpm |
|
Evaporation capacity |
Max. 23mL/min (water evaporation) |
|
Bath temperature control range . accuracy |
RT + 5 to 90°C ±1°C |
|
Rotation setting · display |
Speed control knob · RPM digital display |
|
Jack function |
Motorized lift (100mm) + manual slide (130mm) |
|
Rotary motor |
Stepper motor |
|
Type V condenser set |
Vertical double spiral condenser (cooling area 0.146m²), Adapter, Rotary joint (18 ID × length 178mm, 29/38), 1L sample flask (pear shaped) (29/38), 1L receiving flask (round shaped) (ball joint S35/20) |
|
Vacuum seal |
Teflon® seal (Genuine parts: Teflon® seal, Cat. No. 244980) |
|
Bath inner dimensions (mm) |
220 ID × 120H |
|
Bath material · heater · capacity |
Stainless steel · 1.05kW · approx. 4.3L |
|
Connection port diameter |
Cooling water nozzle · suction nozzle 10mm OD |
|
Ambient temperature range |
5 to 35°C |
|
Outer dimensions (highest position) · weight |
579W × 438D × 840(1070)H · 17kg |
|
Power input · supply voltage |
5.7A, 1.25kVA · 220VAC 50/60Hz or |
