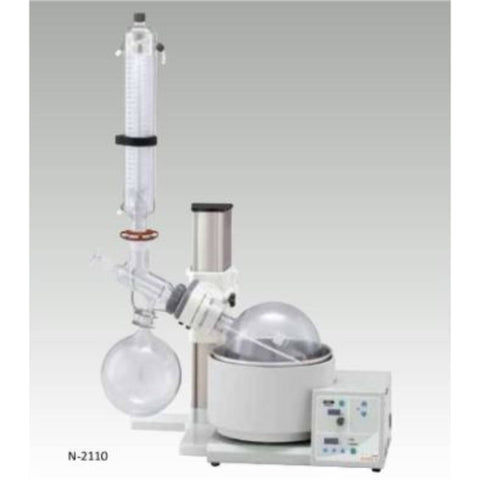

Eyela Bench Top 5L Rotary Evaporator Model N2110
SKU: 269848
Eyela Bench Top 5L Rotary Evaporator Model N2110
2L and 5L rotary evaporators tailored for
concentration applications
- This benchtop rotary evaporators are designed for concentrating yoursampleswith 2L or 5L sample flasks. They come with an electric auto jack for stable and smooth vertical movement.
- The main body (driving unit) is common across the series. The glass part is available in 2L total reflux N-2110R suitable for purification and reaction of concentrated solvents, 2L bottom cooling N-2110U, suitable for bumping and dispersing substances, and 5L N-2110, which can be shared by replacing the glass part. The $ 29/38 sample flasks can also be used with the optional joint adapter and vacuum seal section (Teflon® gasket, vacuum seal, and seal defenser). (N-2110).
- By connecting to the optional vacuum controller NVC- 3000 or solvent recovery unit DPE, concentration can be performed using vacuum control tailored to the sample.
Specifications
|
Model |
N-2110 |
|
Cat No |
269848 |
|
Rotation speed range |
5 to 160rpm |
|
Evaporation capacity |
Max 33mL/min (water evaporation) |
|
Bath temperature control |
RT + 5 to 90℃ ± 1℃ |
|
Jack function |
Motorized lift (stroke 160 mm) |
|
Condenser |
Vertical triple spiral Cooling surface 025m² |
|
Sample flask |
5L round shaped flask (flange joint) |
|
Receiving flask |
3L round shaped flask Ball joint (S35/20) |
|
Bath dimensions material |
280 ID x 144Hmm stainless steel 85L |
|
Connection port diameter |
Cooling water nozzle 14mm 00 suction nozzle 10mm 00 |
|
Ambient temperature range |
5 to 35℃ |
|
Outer dimensions (highest |
661(734/W x 4730 x 1020(1180)H 29kg |
|
Power input supply voltage |
12A 26kVA 220VAC Single phase 50/60Hz |
