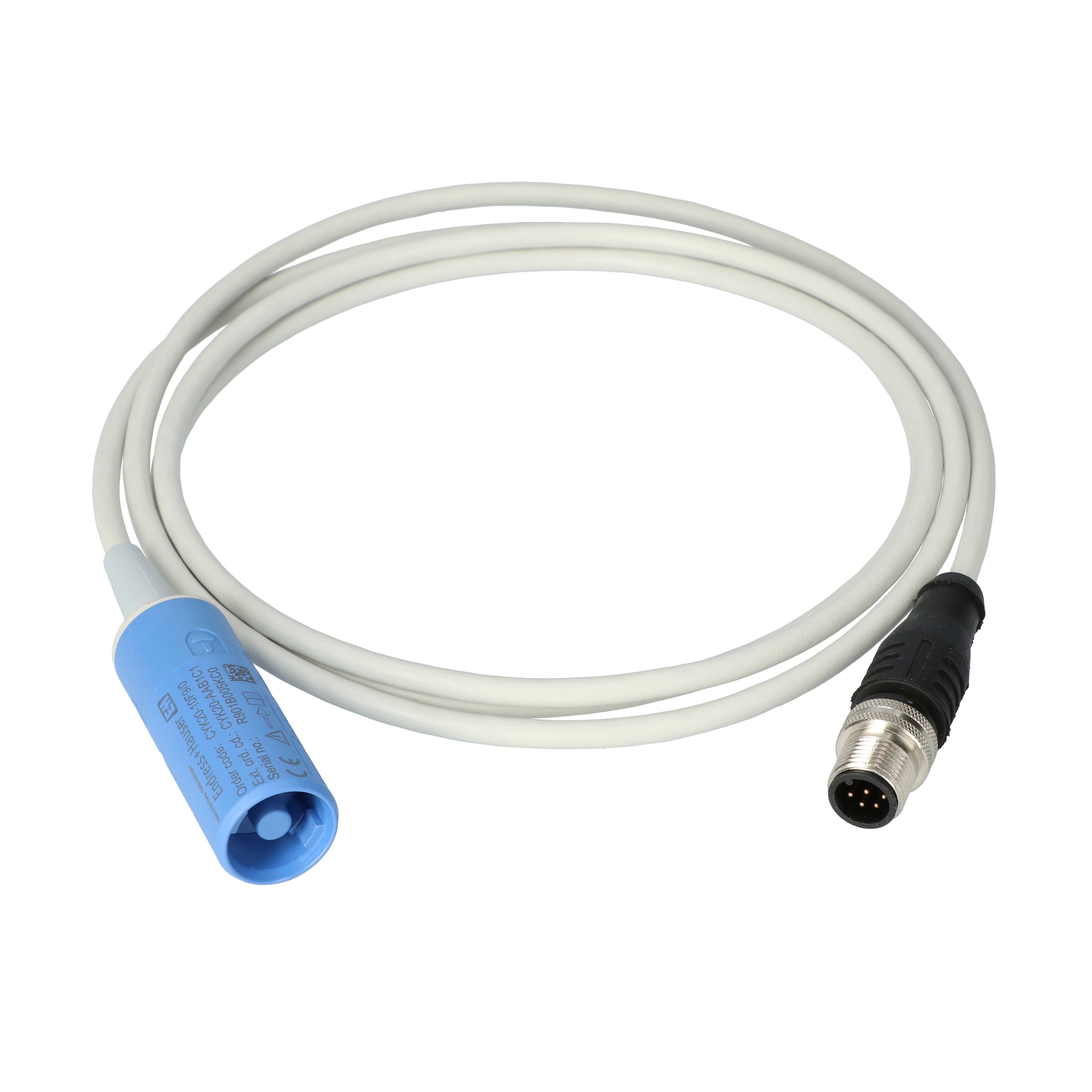

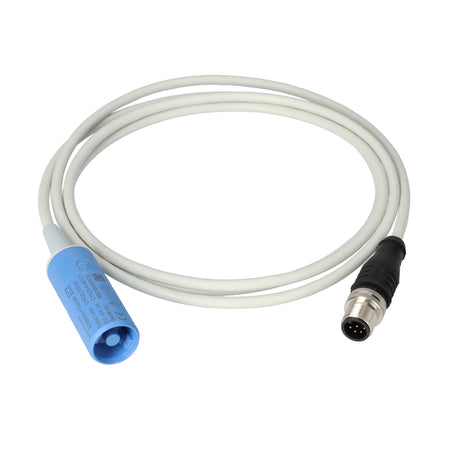

Endress+Hauser Memosens Laboratory Cable CYK20
SKU: CYK20-AAB1C1
Endress+Hauser Memosens Laboratory Cable CYK20
Description:
CYK20 is a flexible data cable allowing reliable connection of your Memosens sensors to the Memobase Plus sensor software and the Liquiline To Go handheld. It guarantees absolute water-proof connection and provides an easy to use inductive coupling with no contact corrosion. Benefit from completely safe and reliable signal transmission without contact corrosion or interference potentials.
CYK20 is a Memosens data cable for lab use in all industries. It is suitable for the following parameters:
- pH/ORP
- Dissolved oxygen (amperometric)
- Conductive conductivity
- Disinfection
It connects all sensors with a Memosens plug-in head to:
- Memobase Plus CYZ71D software (Memolink)
- Liquiline To Go CYM290/CYM291 handheld
With its international explosion-protection approvals, such as ATEX and IECEx, the cable is suitable for hazardous area use.
Benefits
- Specially designed for lab use: flexible, easy to handle, fast connection of sensors of various parameters.
- Maximum process safety via non-contact, inductive and digital signal transmission: no contact corrosion, absolutely watertight, no interference potential.
- Approved for hazardous area use.
Specification:
| pH | Conductivity | Oxygen | |
|
Measuring principle
|
Potentiometric
|
Conductive | Amperometric oxygen measurement |
|
Application
|
Laboratory Measuring cable for contactless, inductive, digital transmission of measurement signals
|
||
|
Installation
|
Inductive plug-head for digital sensors with Memosens technology and M8 or M12 plug to connect to the transmitter.
|
||
|
Characteristic
|
Inductive, digital transmission of measurement signals and energy.
|
||
| Not influenced by moisture, EMC-field and corrosion. | |||
|
Design
|
Easy to handle Bajonett coupling to connect digital sensors with Memosens technology and plug-head.
|
||
| No open contacts, resistant against huminity. | |||
|
Material
|
PEEK / TPE
|
||
|
Dimension
|
Diameter: 4.5 mm ( 0.18" )
|
||
| Cores: 2x2 cores, twisted paires | |||
| Length: 1.5 m +3 m (4.9 ft+ 9.8 ft ) | |||
|
Ex certification
|
IECEX EX ia II C T6 Ga
|
||
| ATEX EX II 1G Ex ia II C T6 Ga | |||
|
Ingress protection
|
IP 65
|
||
