ELVEFLOW MUX Flow Switch Matrix Extension Module

SKU: MUX-S-4-add
Customization Icon
Customizable Product

Together with our experts we will create a product designed for your needs

Still have questions? Ask our experts!

Email +1 (520) 789-6673

ELVEFLOW MUX Flow Switch Matrix Extension Module

Buy ELVEFLOW products from MSE Supplies at the best value.

Product Description

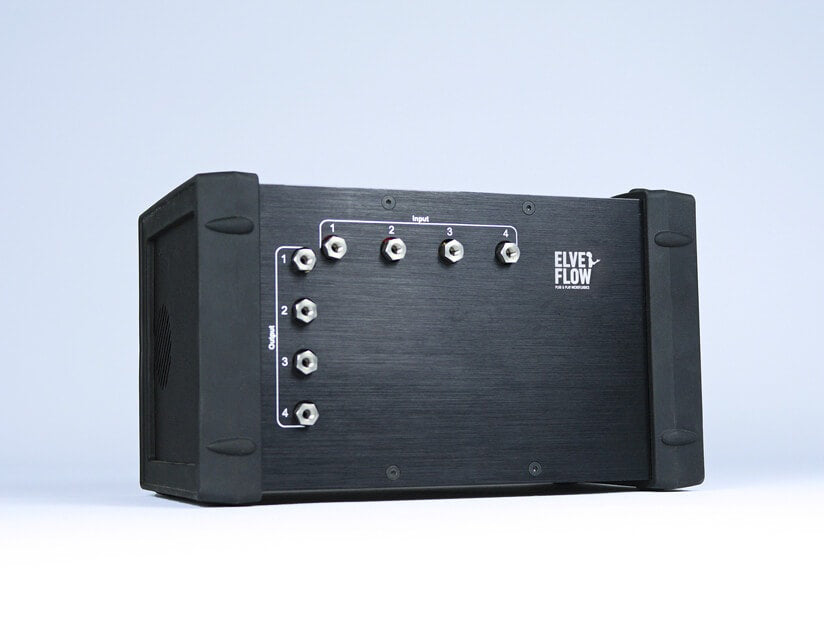

Extension module of 4 additional 2-way on/off valves for Multiplexer flow switch matrix base • Elveflow® Smart Interface software included.

/! Without accessories /!

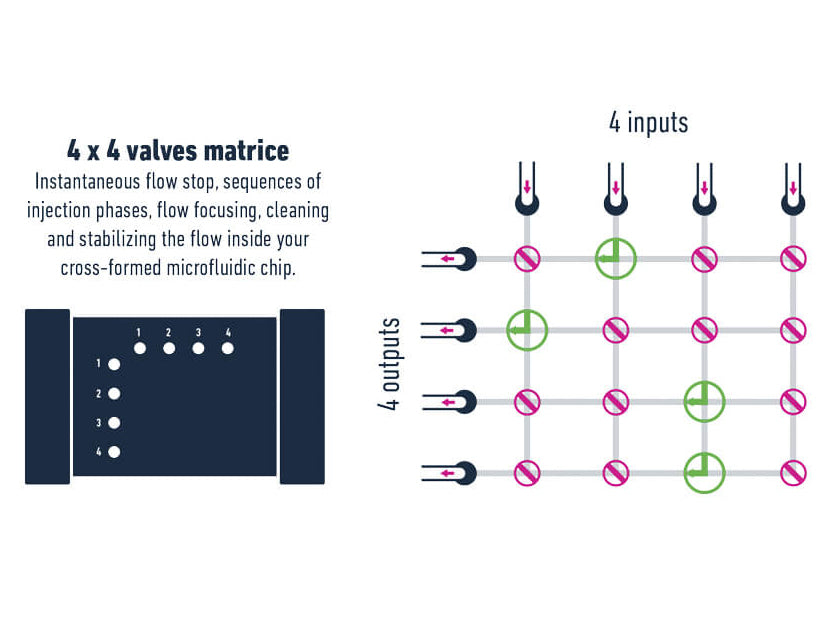

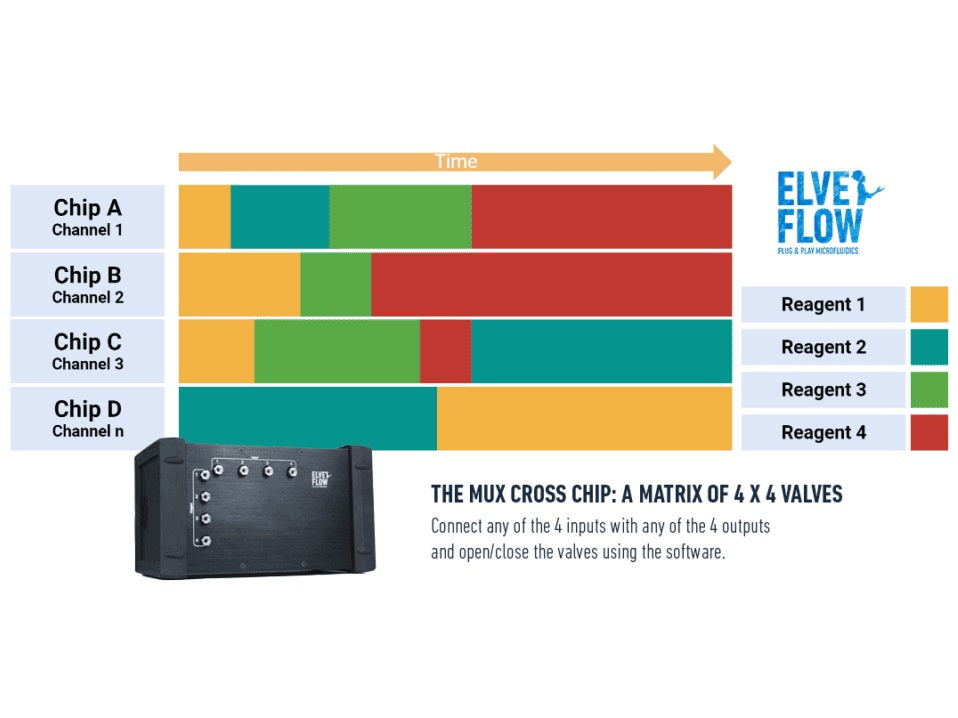

The MUX Cross Chip is a matrix of 4 x 4 valves. Connect any of the 4 inputs with any of the 4 outputs and open/close the valves using the software.

Zero Flow

Thanks to the « Zero Flow » function, you will no longer have any residual Poiseuille flow during observation or separation phases within your cross-formed chip. Achieve performance and reproducible results like never before!

Low Volume Injection

By using a liquid buffer as a carrier phase, and by introducing your samples using a T Junction or the Elveflow chip holder, the valve matrix allows for the controlled injection of very low volumes (<10µL) into your microfluidic chip.

Other instrument highlights include:

  • Plug & Play instrument designed to stop the flow in your microfluidic device in 100ms with no residual flow

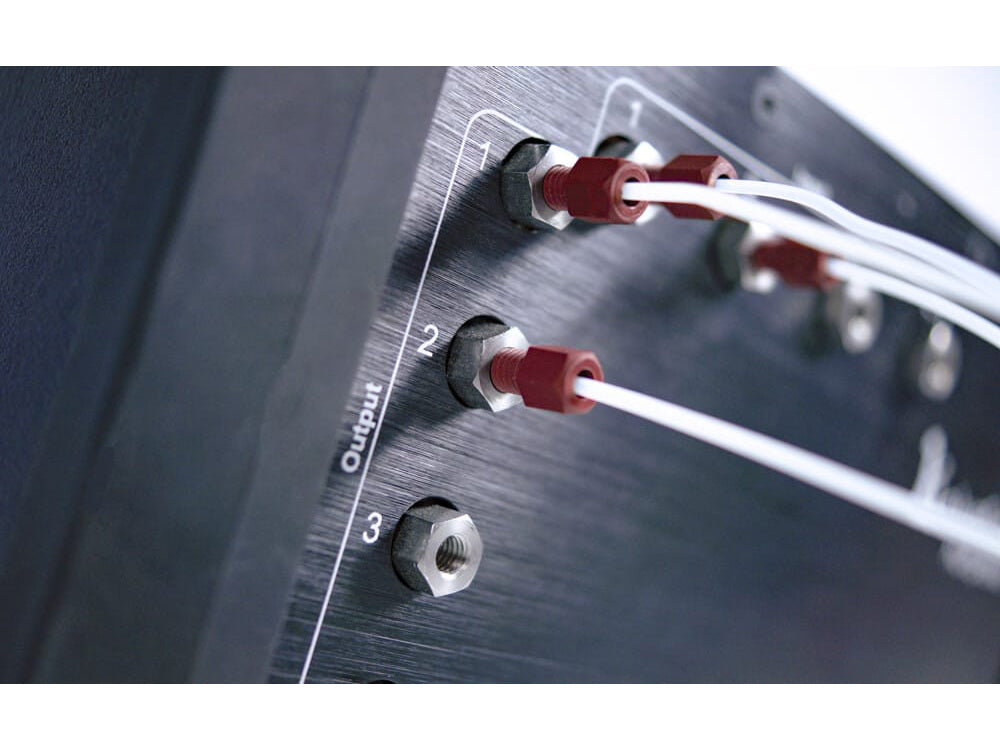

  • PEEK valves compatible with 10-32 microfluidic fittings
  • Complete equilibrium & stop flow in 100ms
  • Internal/external trigger.

Specifications

Mux Series Cross Chip  Flow Switch Matrix Quake Valve
Performances Valves actuation time 20 ms
Max. supported pressure 2 bar (29 PSI)
Power Supply Input voltage range, AC 100 V to 240 V
AC supply frequency 50 Hz to 60 Hz
Input current, AC 1 A
Power Consumption 35 W
Safety IEC/EN 61010-1: 2001
Shutting down power supply Disconnect AC/DC adapter
Mechanical Specifications Valve type 2/2-way solenoid valve 3/2-way solenoid valve
Input/output connectors 10-32 UNF 1/4-28 UNF 10-32 UNF
Wetted material POM, Viton, PEEK, FKM PEEK, FKM POM, Viton, PEEK, FKM
Operating temperature 10° C to 40° C
Operating humidity 20 to 80%
Software Computer specifications USB 2.0 port, Intel Pentium II 500 MHz, 1 Go Hard Disk space, 2 Go RAM Windows XP and newer, 32/64 bit. LabVIEW* 2011 is required when using LabVIEW* libraries.
Connection type USB
Provided elements C++, Python, MATLAB* and LabVIEW* Libraries

MUX SERIES DIMENSIONS without connectors (length x width x height): 220 x 130 x 130 mm

  • One Trigger IN and one Trigger OUT TTL output.
