DURAN® Pressure Plus+ GL 45 Laboratory Bottle, Protect+
SKU: DWK218152484
DURAN® Pressure Plus+ GL 45 Laboratory Bottle, Protect+
Buy DWK Life Sciences products from MSE Supplies at the best value.
The DURAN® pressure plus+ GL 45 protect+ coated bottles offer a safer option for laboratory applications involving a vacuum or pressure. Standard glass laboratory bottles are not designed to safely withstand pressure differentials. As a result of a modified geometry, the pressure plus+ bottles have a guaranteed pressure-resistance, and consequently offer optimal safety for both the user and contents. The special geometry still conforms to ISO 4796-1:2016 to maintain instrument compatibility. The pressure plus+ bottles are certified in accordance with DIN EN 1595. The bottles are moulded from high-purity, clear, USP/EP Type I borosilicate glass 3.3, renowned for its excellent thermal performance, and high resistance to chemical attack. The glass is coated with a clear polyamide PA12 plastic coating that offers protection for the user and contents in the event of breakage due to impact. The bottles feature an easy-to-read graduated volume scale printed in a distinctive blue enamel. Permanent Retrace Code on each bottle for manufacturing lot traceability.
- Manufactured from borosilicate glass 3.3, PA 12
- Certified vacuum and pressure resistant from –1 bar to + 1.5 bar gauge (barg) (DIN EN 1595) due to modified geometry (based on ISO 4796-1)
- The Polyamide 12 safety coating provides scratch, leak and splinter protection in the event of breakage due to impact
- Protective plastic coating provides an enhanced and safer grip without any stickyness
- Supplied as safety coated glass bottle only with a HDPE push-on dust cover. The screw caps and pouring rings must be ordered separately.
- Optimum safety for working under pressure and suitable for use under a high vacuum. Maximum operating temperature under vacuum or pressure is 140 °C. Avoid temperature changes.
- Fired-on, highly durable blue ceramic for visual differentiation from the standard laboratory bottle
- Plastic safety coating is Cleanroom certified Fraunhofer IPA TESTED DEVICE®
- Coating process does not use any volatile organic compounds VOCs or isocyanates
| Catalog No | Capacity (mL) | Thread | Height h (mm) | Diameter d (mm) | Pack Size |
|---|---|---|---|---|---|

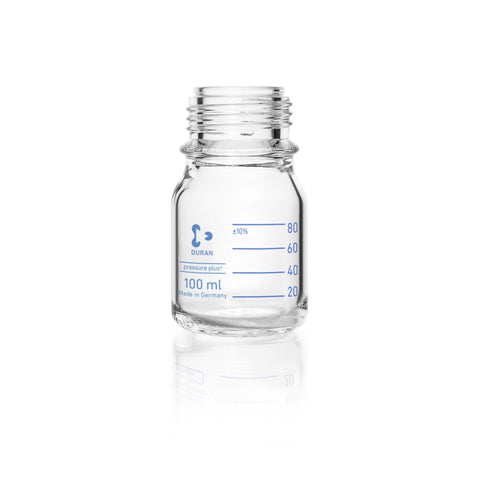

| 218152484 | 100 | GL 45 | 100 | 56 | Case of 10 |

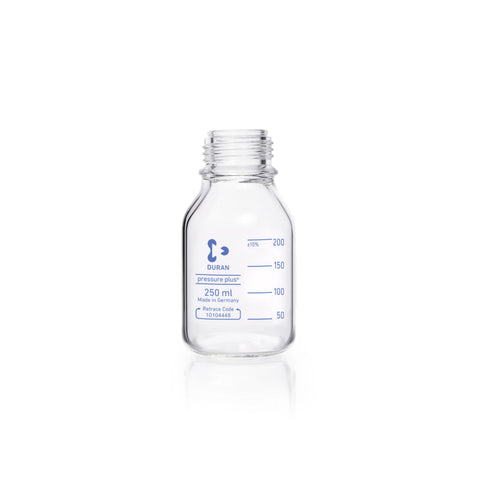

| 218153686 | 250 | GL 45 | 138 | 70 | Case of 10 |

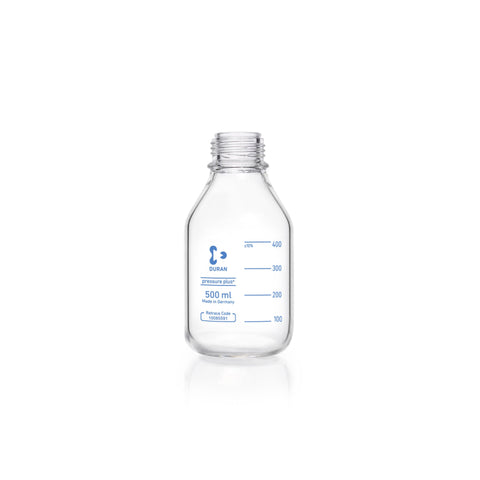

| 218154485 | 500 | GL 45 | 176 | 86 | Case of 10 |
| 218155481 | 1000 | GL 45 | 225 | 101 | Case of 10 |
