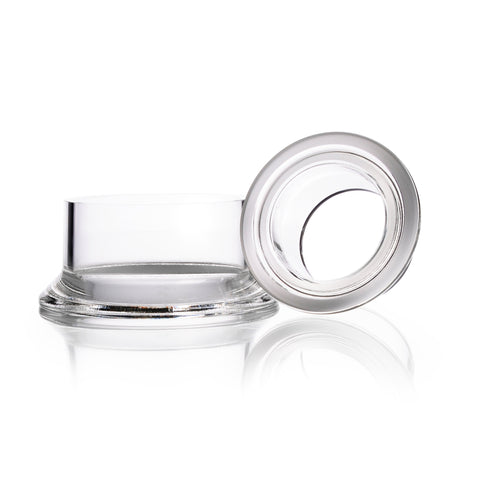

DURAN® Flat Flange, Ground, with Groove, DN 60
SKU: DWK210343405
DURAN® Flat Flange, Ground, with Groove, DN 60
Buy DWK Life Sciences products from MSE Supplies at the best value.
DURAN® flat flanges with and without grooves are suitable for further processing into pressure-resistant reaction vessels, for example. For pressure resistance, please refer to our notes in the technical appendix of the laboratory glassware catalogue. For glass articles which deviate from the original form due to further processing, the permissible operating data must be determined in accordance with the technical rules and regulations.
- Manufactured from borosilicate glass 3.3
- Ground
- Component for further processing into reaction vessels
- Due to the geometry and the massive wall thickness, the blanks are suitable for devices with pressure and vacuum applications.
- Glass articles for further processing
| Catalog No | DN | Flange OD (mm) | Diameter d1 (OD) (mm) | Height h (mm) | Pack Size |
|---|---|---|---|---|---|
| 210343405 | 60 | 100 | 70 | 50 | 1 |
