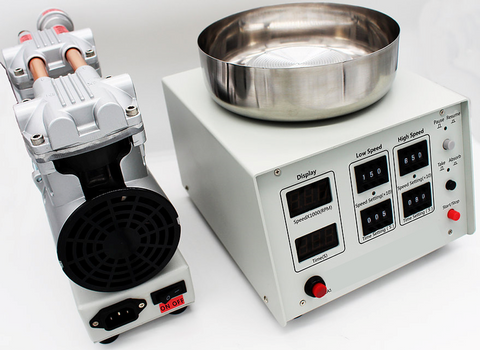

Benchtop High-Speed Spin Coater (Max. 120mm Dia., 10,000 rpm ) with Vacuum Pump &3 Vacuum Chucks
Product details:
MSE Supplies offers a benchtop high-speed and easy-to-use spin coater (BR0232), which is designed for precise and uniform deposition of thin films and coatings. Its rugged, vibration-free and portable design makes it a versatile tool for any high-quality research facility. A two-stage spin process allows dispensing at low speed and homogenizing the coating at high speed. It is widely used by our customer to deposit metal oxide thin films, polymer coatings and metal organic thin films.
Three standard vacuum chucks (1", 2" and 4") are complimentary offered by MSE Supplies. Please contact us if you need other sized vacuum chucks.
The product figure is for reference only. The actual product may look different based on the product configuration.
Specifications:
| SKU# | BR0232 |
| Power | AC 100-240V, single phase |
| Substrate Size | 5-120mm |
| Spin Speed | 50-10000rpm |
| Spin Coating Uniformity | ±2% |
| Pumping Speed | ≥60L/min |
| Two Spin Speed Stage |
1000-10000rpm High speed 50-10000rpm Low speed |
| Set Time Range | 0-999s |
| Motor Speed Stability | ±0.5% |
| Speed Accuracy | ±10rpm |
| Dimensions | 215x240x220mm |
| Weight | 18kg including the pump |
| Warranty | Limited 2 year warranty. Lifetime technical support. |
