Cleaver Scientific omniPAGE WAVE Maxi Plus Vertical Electrophoresis System

Cleaver Scientific omniPAGE WAVE Maxi Plus Vertical Electrophoresis System

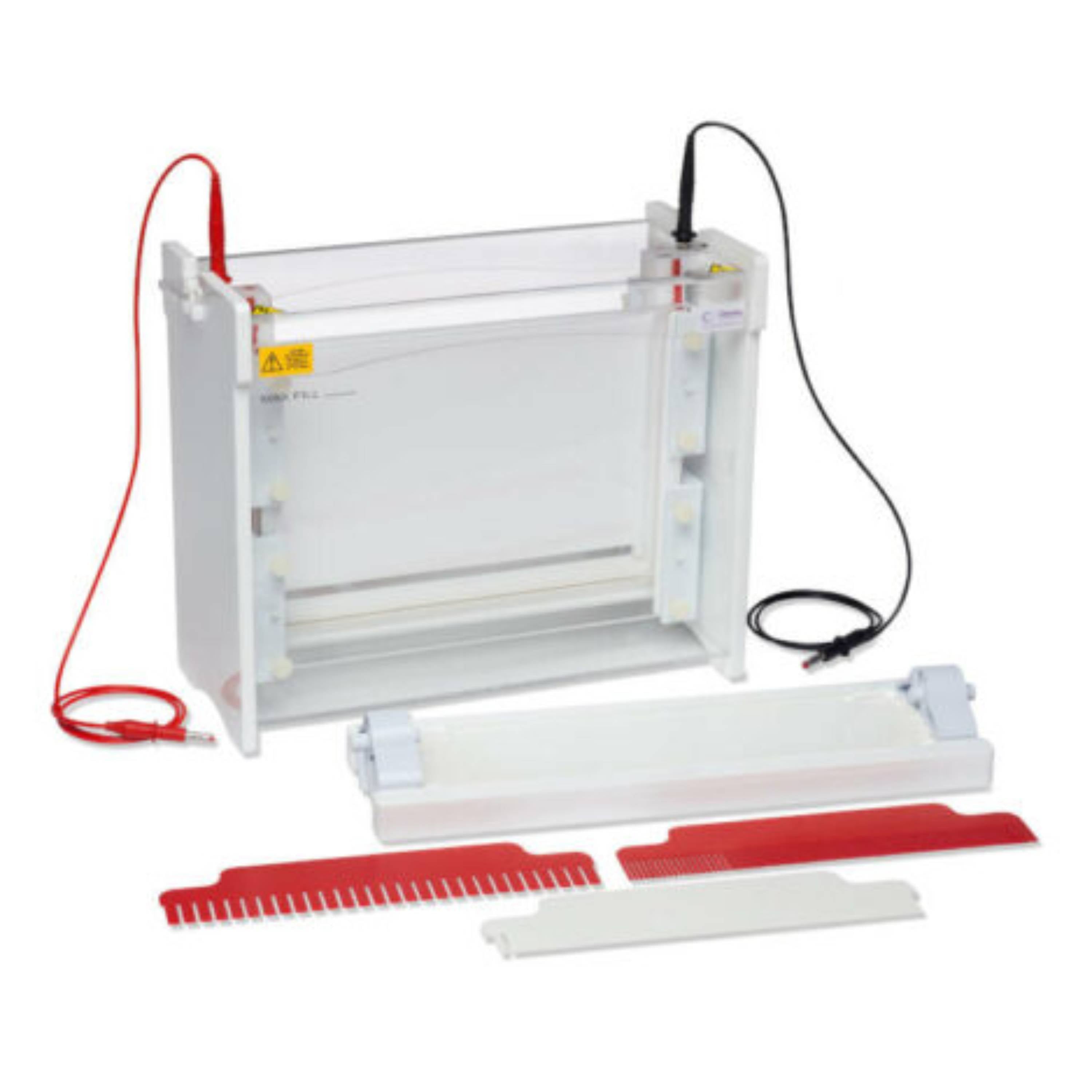

The omniPAGE VS30 maxi-plus large format vertical has been designed as a convenient unit for second-dimension PAGE following first-dimension isoelectric focusing using the CSL-IEF. An active gel width of 26cm easily accommodates IPG strips up to 24cm in length, the longest available commercially, while an extended gel height of 22cm maximizes separation distance and resolution of proteins similar in size or isoelectric point (pI). In combination with the CSL-IEF, the VS30DSYS provides a complete 2-D electrophoresis system which utilizes the advanced features of the omniPAGE range to produce a unit that is both easy to use and consistent in generating reproducible results.

Rapid set-up cooling retains resolution in extended separations and also conserves buffer volume without affecting run quality. A maximum of four 1-mm-thick gels may be resolved per run, using notched glass plates with 1mm bonded spacers; and a comprehensive range of accessories facilitate easy interchange between 2-D and standard vertical electrophoresis techniques. Different types of 2-D comb offer a wide degree of versatility in sample selection and gel set-up.

Key Features:

• Ideal for second-dimension electrophoresis

• Accepts IPG strips 24cm in length, the longest available commercially

• Rapid set-up cool packs enhance resolution, particularly during extended runs

Specifications:

Instructions

• TSL - VS30 MANUAL V1.0(PDF)

Product Flyers

• Thistle-CSL OmnipageMAXI(PDF)
• Cleaver Scientific cataloge page 43(PDF)

MSE Supplies is an authorized supplier of Cleaver Scientific (Thistle Scientific) products. Please contact us if you need more information regarding Cleaver Scientific products and equipment.
