Cleaver Scientific omniPAGE Mini Wide Electrophoresis System

Cleaver Scientific omniPAGE Mini Wide Electrophoresis System

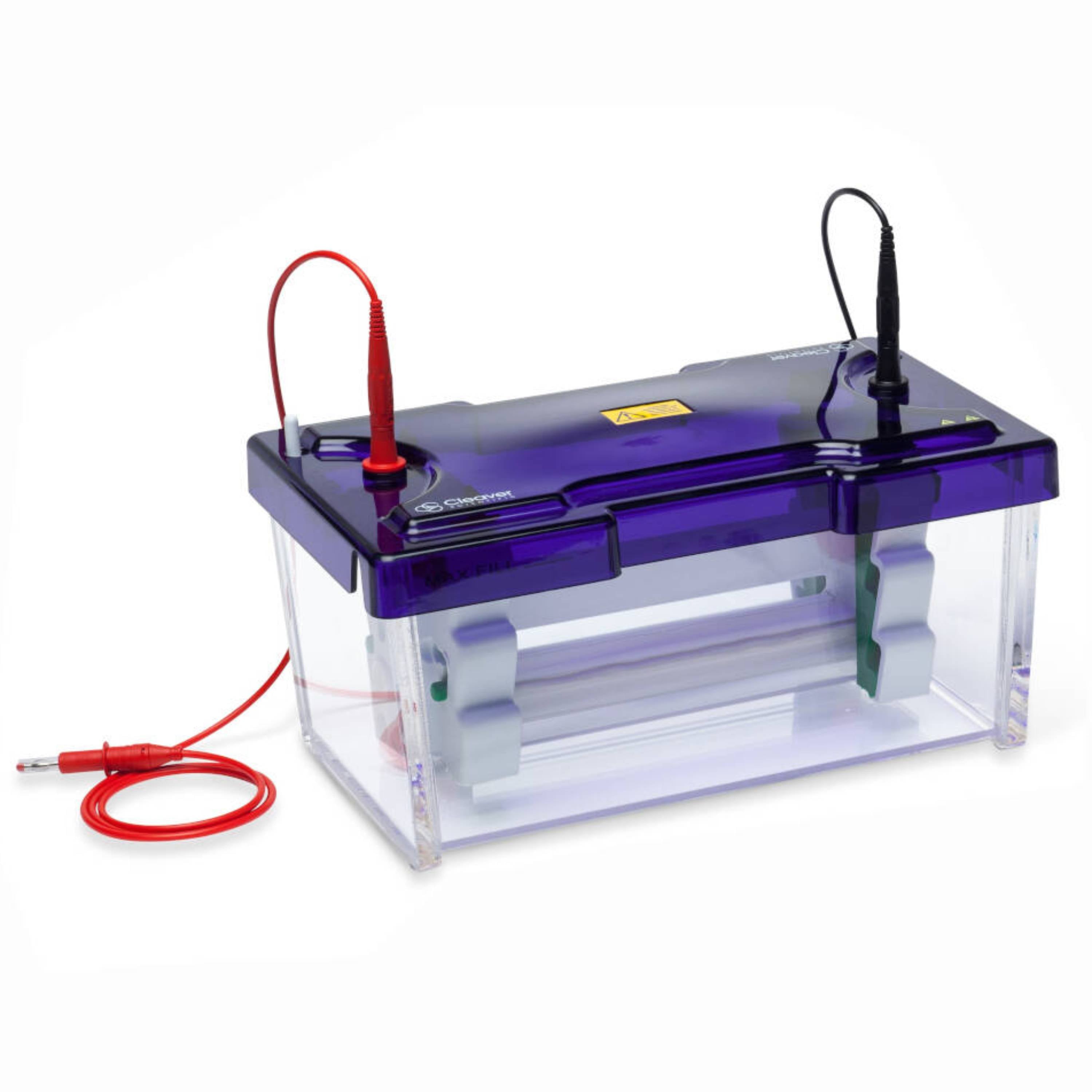

The OmniPAGE Mini Wide vertical gel unit with an active gel width of 18cm effectively allows double the number of samples to be resolved as the OmniPAGE Mini unit. This allows consistency of sample comparison on a single gel and is designed for those with greater than 20 samples to compare and resolve.

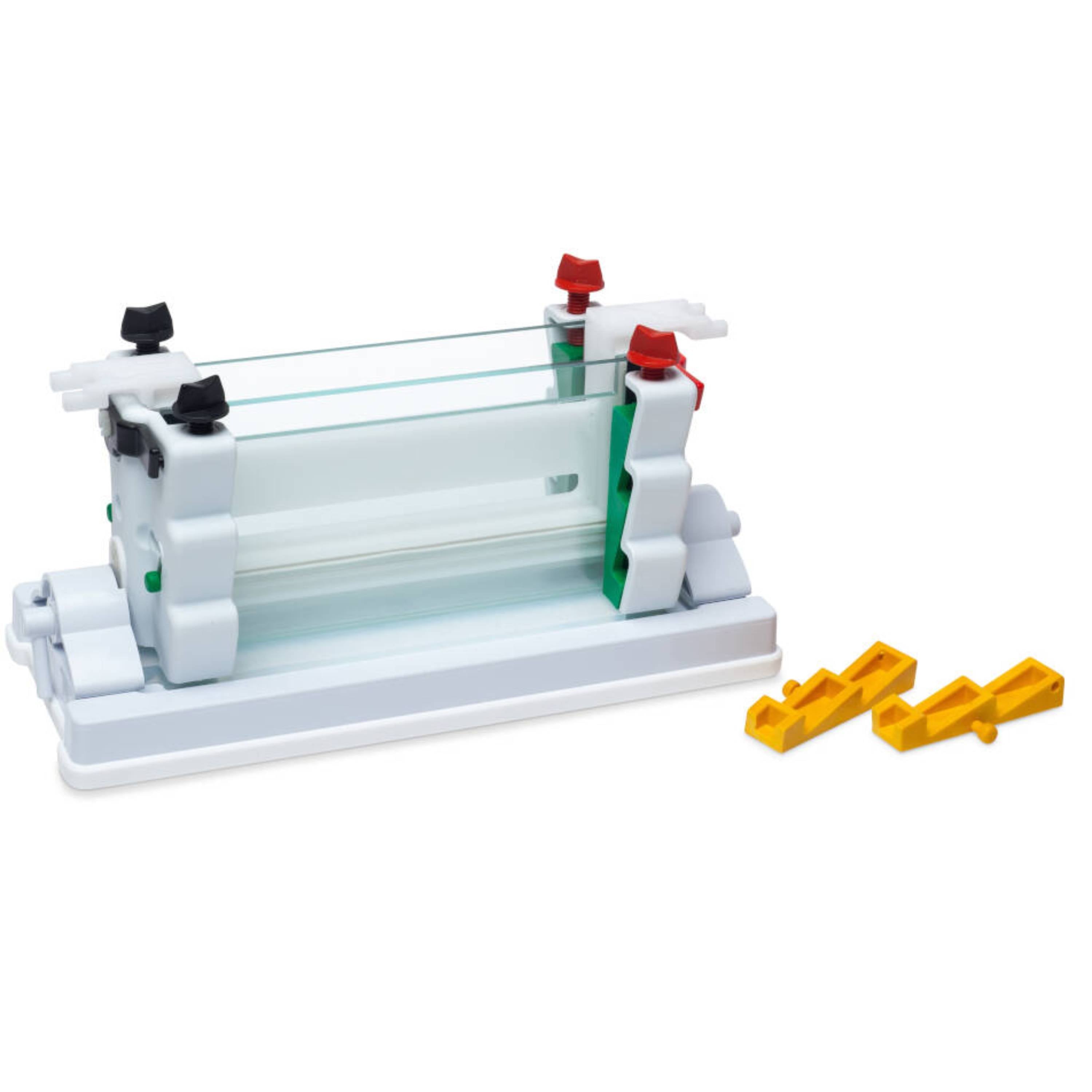

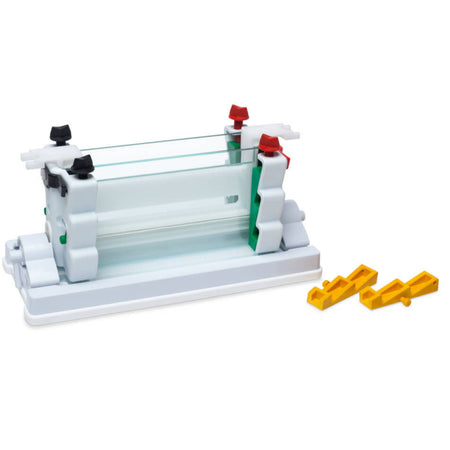

Simple set up using ultra soft silicone seals guarantees trouble free glass plate loading and gel casting. Dual gaskets on the gel running insert along with notched and plain glass plates ensure leak proof gel running. Rapid set up cooling retains resolution in extended separations and also saves on buffer volume without affecting run quality.

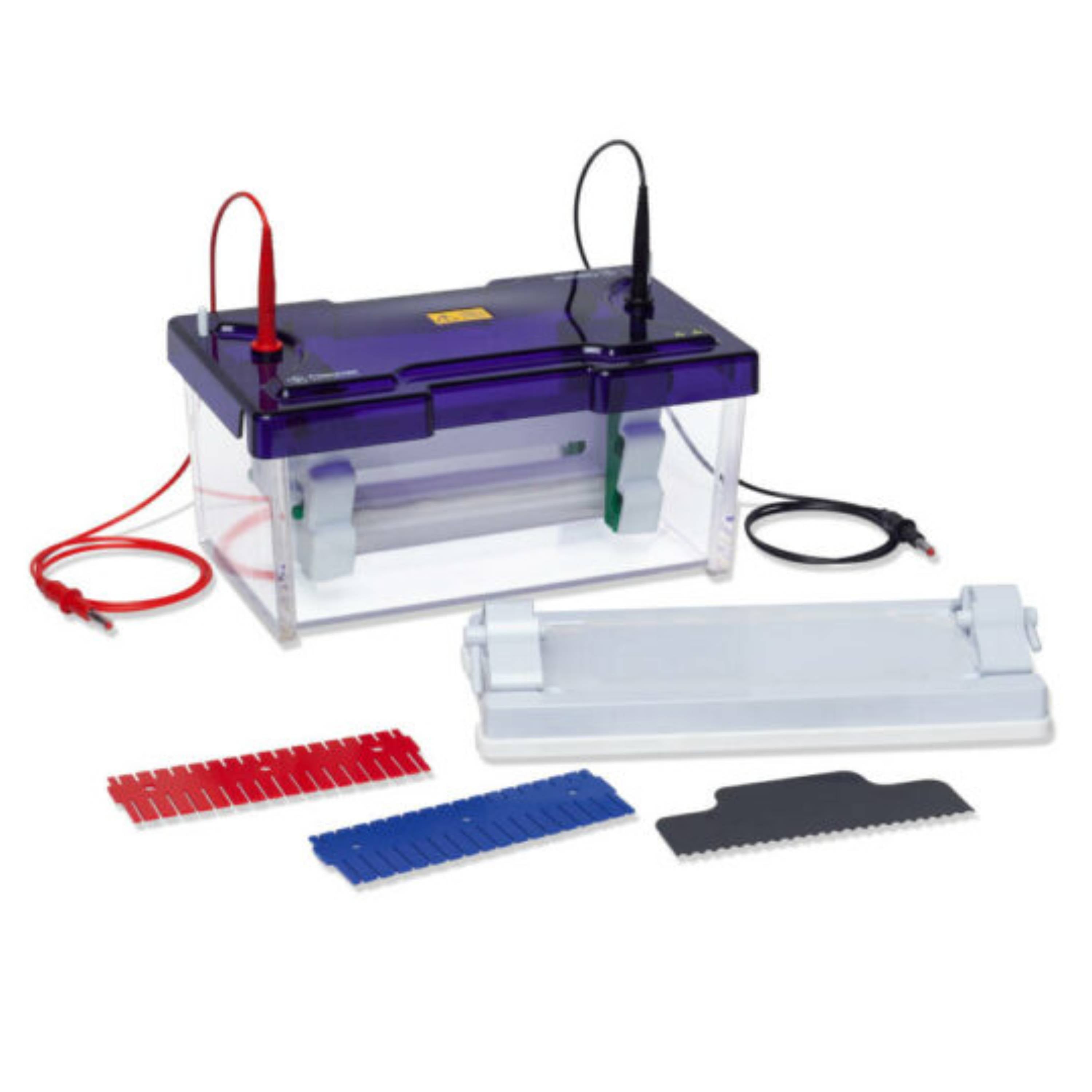

4mm thick glass plates reduce breakage and have bonded spacers for added convenience. A wide range of accessories is available allowing many techniques to be performed using the same unit. Prep combs can be used to maximize sample loading and recovery. Accessory electroblotting and tube gel modules are available which use the same outer tank and lid.

Special reduced thickness clamps allow for running of thicker gels up to 2 mm, or for running of up to 4 gels per system using additional notched spacer plates.

Key Features:

• Offers the capacity of two mini gels on a single gel

• Rapid gel casting and loading

• Optional low or high buffer volumes

• Rapid set up cooling

Specifications:

Instructions

• VS20 VS10W MANUAL(PDF)

Product Flyers

• OMNIPAGE.WEB(PDF)
• Cleaver Scientific catalog page 37(PDF)

MSE Supplies is an authorized supplier of Cleaver Scientific (Thistle Scientific) products. Please contact us if you need more information regarding Cleaver Scientific products and equipment.
