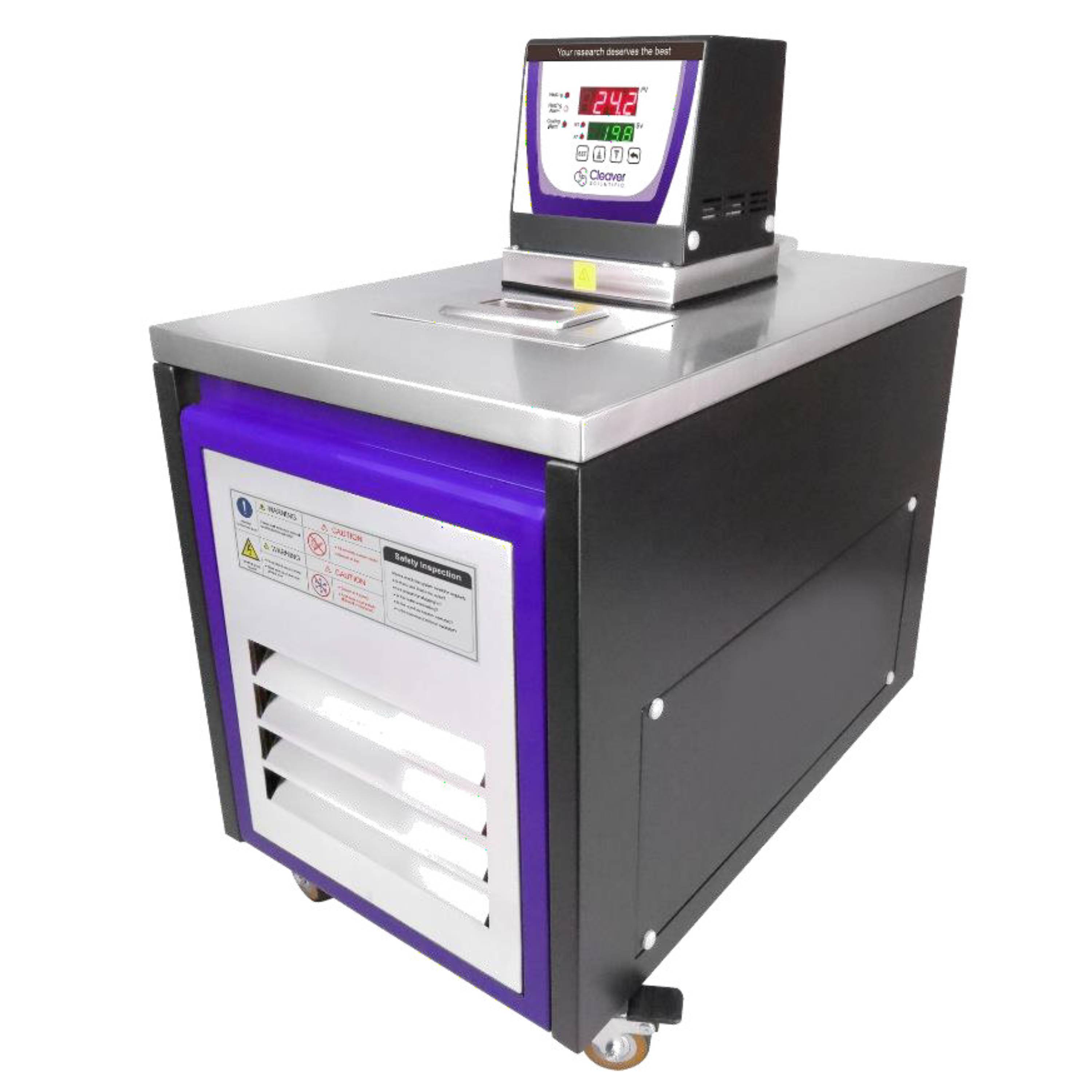

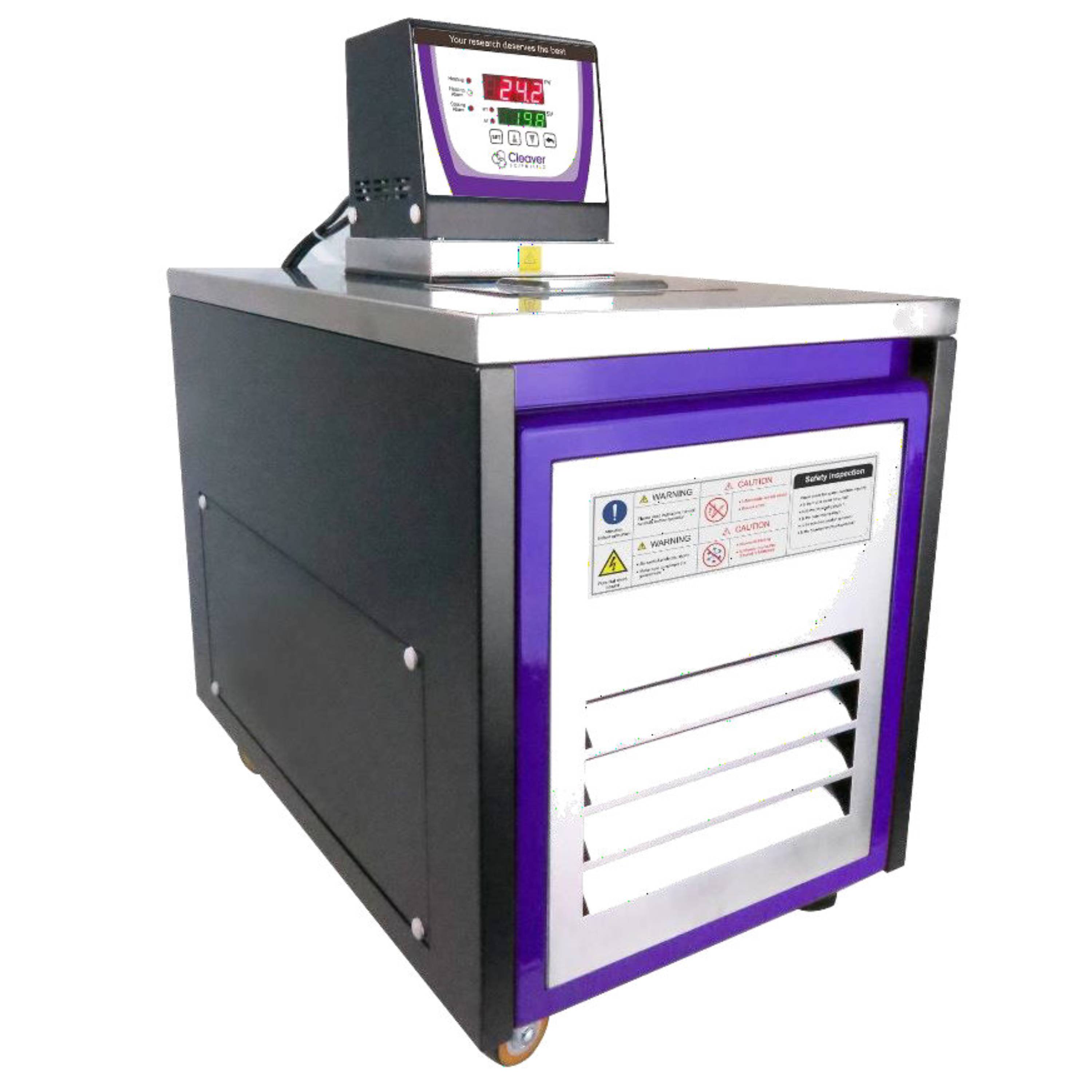

Cleaver Scientific Eco Chiller 1000W,110V
The Chiller provides precise temperature control and excellent cooling performance for your fermentation needs and beyond. The recirculating chillers are compactly designed and require very little space; the built-on wheels offer an added bonus of mobility to any space-conscious labs. With a low procurement cost, it is your best option to stray away from costly tap water and is the perfect alternative for basic cooling needs.
Key Features:
- Compact design
- Overheat protection
- LED display with PID control of 0.1°C resolution
- Self-diagnosed abnormality function
- Delayed resume compressor protection
- Jetstream forced-flow circulation
Specifications:
|
SKU |
CHILL-ECOPLUS |
|
Working temperature range (°C) |
0℃ - +100℃ |
|
Temperature stability (°C) |
±0.5℃ at 20℃ |
|
Temperature Accuracy |
±0.5℃ at 20℃ |
|
Temperature control |
PID control, PT100senser |
|
Setting / display resolution |
± 0.1 °C |
|
Temperature Display |
LED |
|
Cooling capacity (Medium Ethanol) |
1900 BTU/h @ 0℃ |
|
Pump capacity flow rate (l/min) |
5.5L/min |
|
Pump capacity flow pressure (bar) |
0.19bar |
|
Pump connections |
1/4” silicone tubing |
|
Barbed fittings diameter (inner dia. / mm) |
6.35mm or 1/4” |
|
Filling volume (liters) |
10L |
|
Refrigerant |
CFC free refrigerants‐R134a |
|
Operating temperature |
+20℃ - +40℃ |
|
Operating humidity |
Max.80％ |
|
Rated Voltage |
220V/ 50Hz, 8A |
|
Material |
SUS#304 Stainless Steel |
|
Chamber Dimension (WxLxH) |
235x295x150 mm |
|
External material |
Powder Coating |
|
Compressor |
1/4HP |
|
Dimension (WxLxH) |
340x560x670 mm |
|
Weight |
50kg |
|
Water-in /Water-out Dimention(O.D.) |
12.7mm |
|
Power |
1000W |
|
Circulating system |
Jet water flow forced circulation |
