BrandTech EK 600 Base Module for Chemistry Pumping Unit (Without Pump)
SKU: BT20751801
BrandTech EK 600 Base Module for Chemistry Pumping Unit (Without Pump)
Buy BrandTech Products from MSE Supplies at the best value.
Base module for chemistry pumping unit (without pump) in action

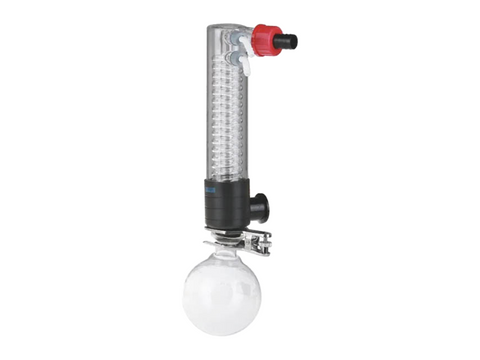

Exhaust vapor condenser EK 600 with round bottom flask 500 ml, with KF DN 25, for VACUU·PURE

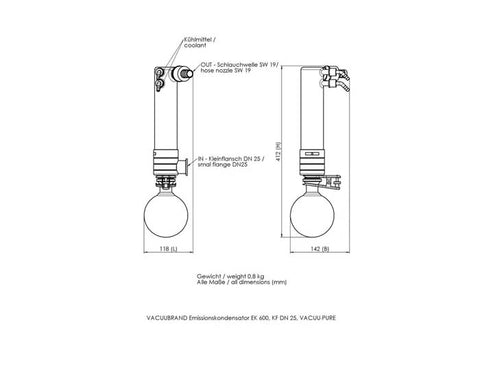

Technical data and graphs
| Ambient temp., upper limit, in °C | 40 °C |
| Ambient temp., lower limit, in °C | 10 °C |
| Dimension L in mm | 118 mm |
| Dimension B in mm | 142 mm |
| Dimension H in mm | 412 mm |
| Outlet connection | small flange KF DN 25 |
| Inlet connection | Schlauchwelle DN 19 mm |
| For VACUUBRAND pumps | VACUU·PURE |
| Volume catchpot | 500 ml |
| Items supplied | Exhaust vapor condenser with KF DN 25 for VACUU·PURE |
