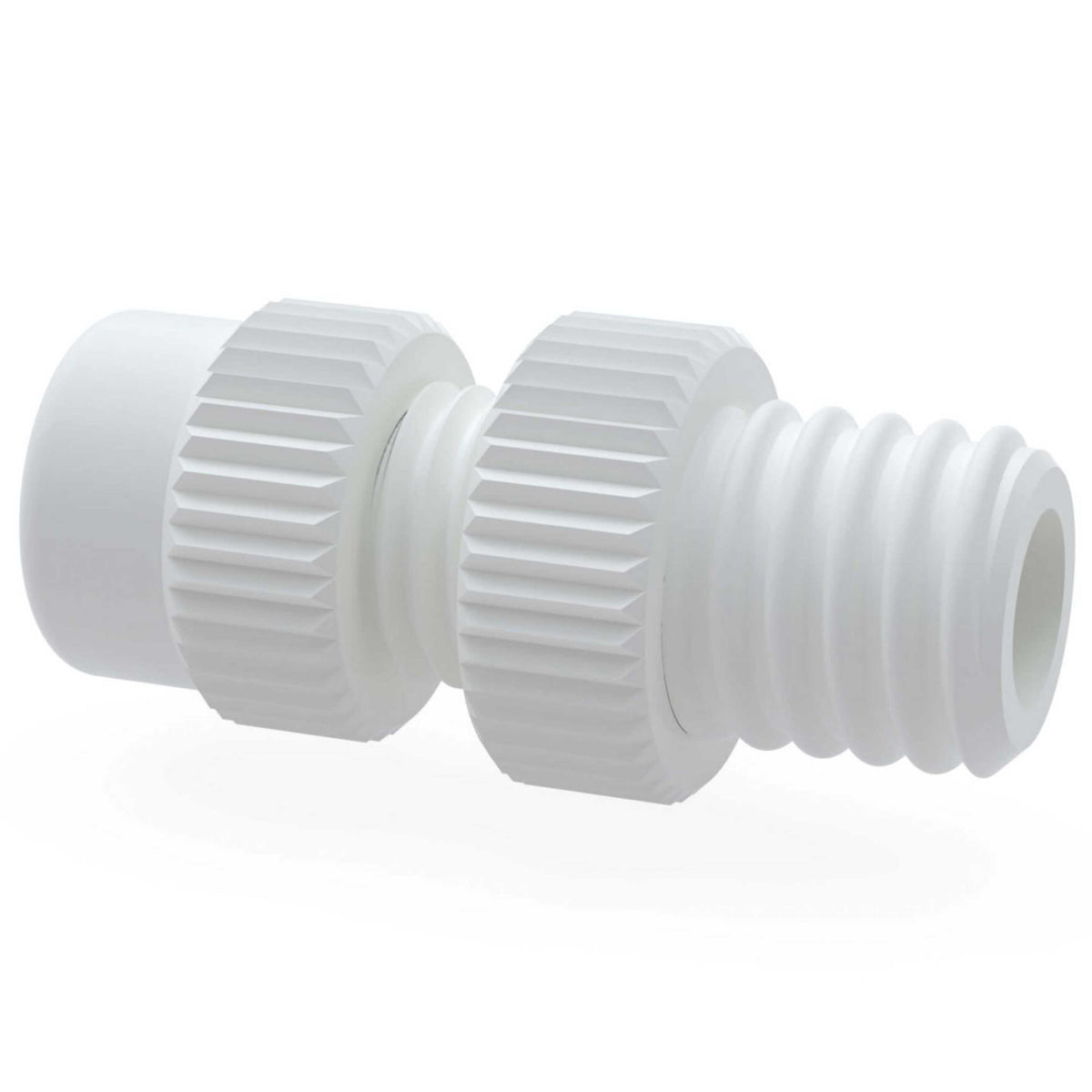

BOLA Vario Couplings (PVDF ) - GL 18, Ø 8,0 mm
Regular price
$ 195.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Vario Couplings (PVDF ) - GL 18, Ø 8,0 mm
Product Description
Two-part coupling made of PVDF for connecting elastic tubing (e.g. Viton®, Tygon®, silicone) to hard-walled tubing made of PTFE, glass or other plastics. Easy and ingenious functioning: the elastic tubing is pushed on a cone and fixed on the coupling by means of a connecting nut. On the other side, hard-walled tubing up to a maximum O.D. of 10 mm is connected to a GL thread by means of laboratory screw joints. Restricted chemical resistance, working temperatures up to max. +150°C.
Specifications:
| Model | D681-48 |
| Chemical resistance | ++ very good |
| Material | PVDF |
| Pressure | 3 bar |
| Temperature resistance | from -30°C to +150°C |
| Autoclave | 121° |
| Bore dia. [mm] | 8,0 |
|
Connecting thread [GL] |
18 |
|
For tubing I.D. [mm] |
8 bis 9,5 |
| For tubing [wall thickness mm] | 0,8 bis 1,2 |
Downloadable links:
Technical information
Material Safety Data Sheets
