BOLA U-Shaped Blades (PTFE/PEEK Comp. ) - Ø 10 mm a Ø 100x60x35x56 mm
Regular price
$ 199.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA U-Shaped Blades (PTFE/PEEK Comp.) - Ø 10 mm a Ø 100x60x35x56 mm
Product Description

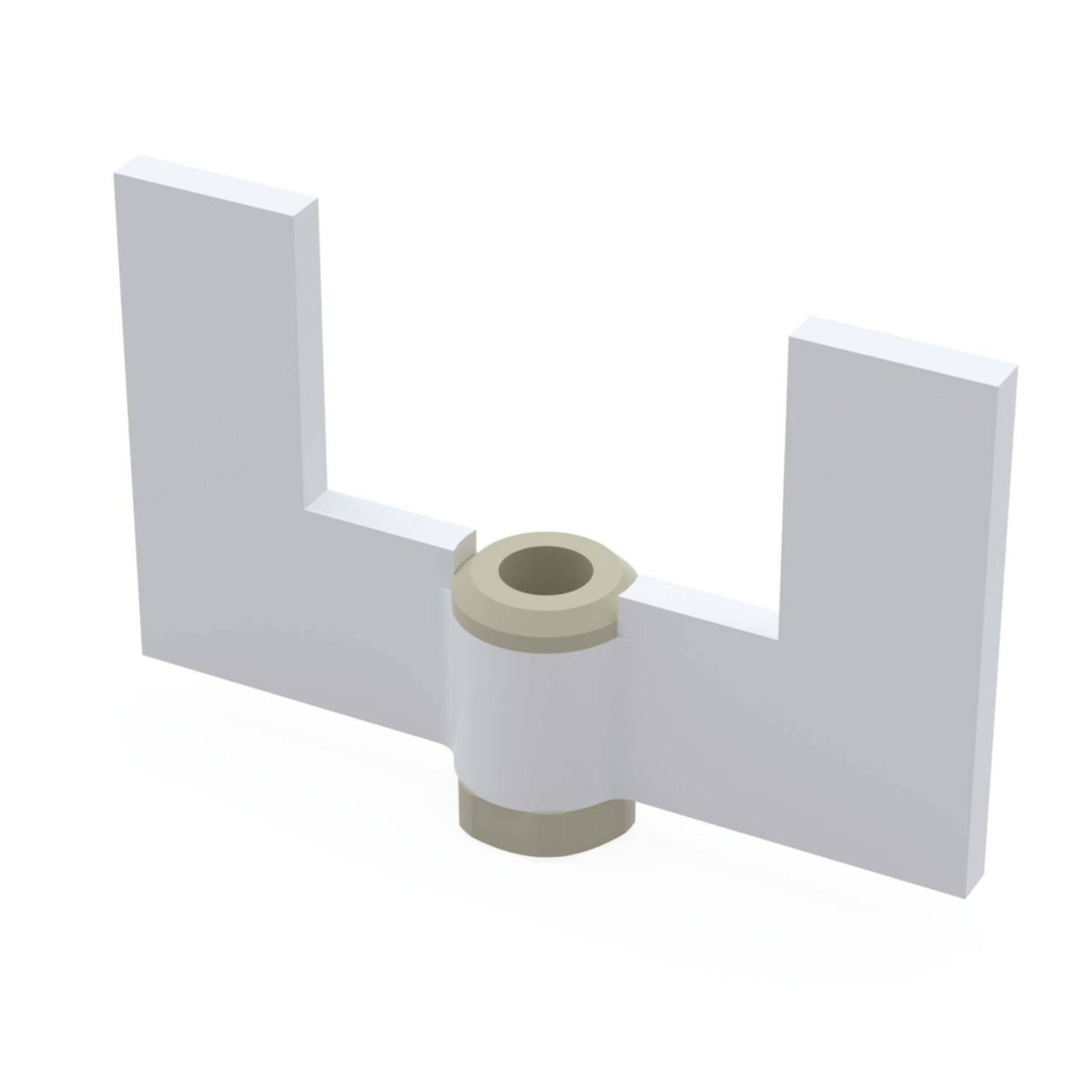

These solid stirrer blades are made of PTFE and have a set of clamp screws made of a PTFE/PEEK compound. The blades can be fixed tightly on BOLA Stirrer Shafts by means of the clamp screws. A spanner wrench is included for easy assembly.
Applications
Strong, tangential flow with high shear rate in the margin area, little sediments on the wall of the vessel. Ideal for mixing viscous liquids.
Specifications:
| Model | C445-20 |
| Chemical resistance | +++ universal |
| Material | PTFE/PEEK |
| Stirring effect | bottom-up |
| Temperature resistance | from -200°C to +250°C |

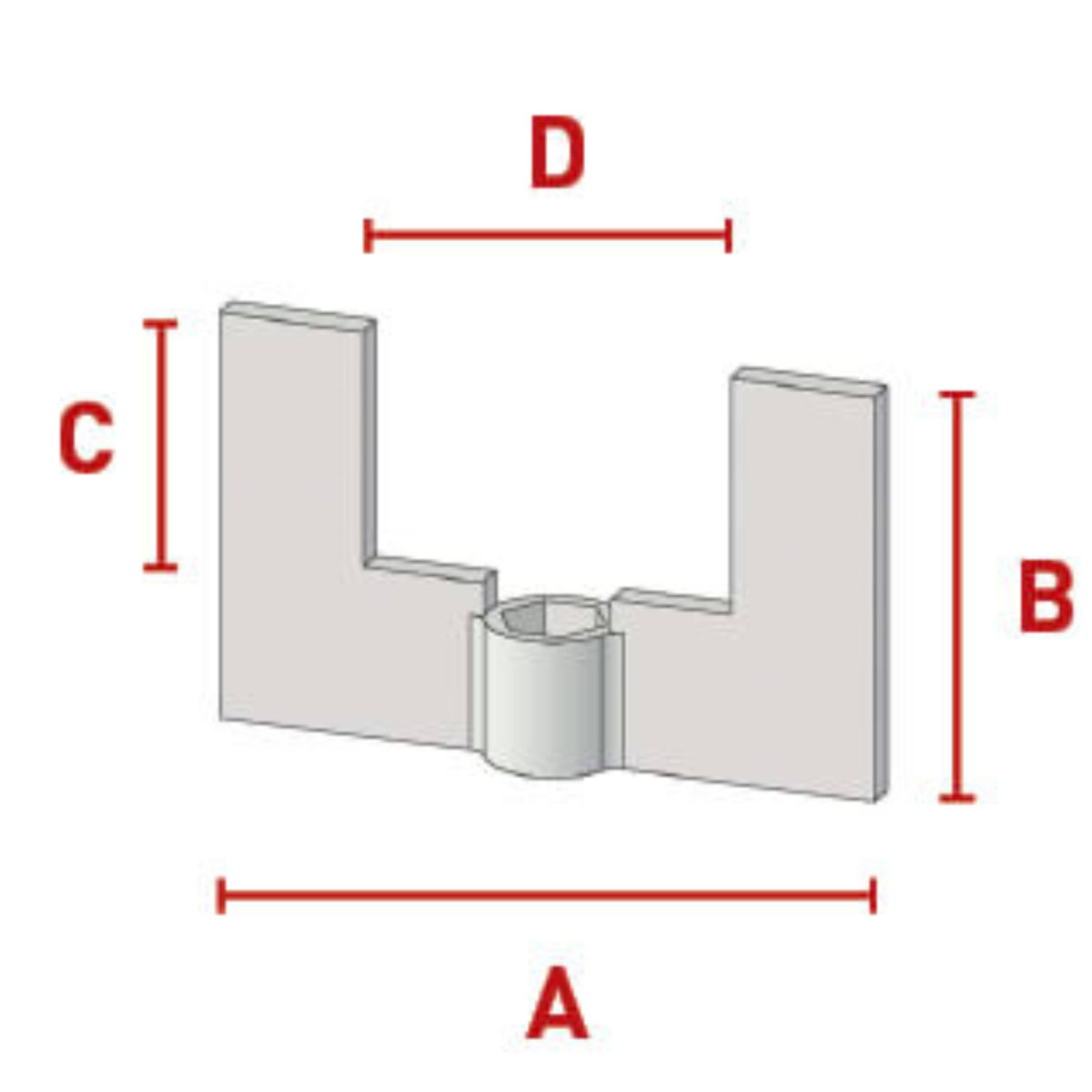

| Dimensions according to drawing [A - B - C mm] | 100 - 60 - 35 - 56 |
| Shaft dia. [mm] | 10 |
| Wrench size | 19 |
Downloadable links:
Technical information
Material Safety Data Sheets
Operating Instructions
