BOLA Stirrer Shafts with Two Paddles RCD (PTFE ) - L 1000 mm Ø 16 mm 140x25 mm
Regular price
$ 1,323.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Stirrer Shafts with Two Paddles RCD (PTFE ) - L 1000 mm Ø 16 mm 140x25 mm
Product Description

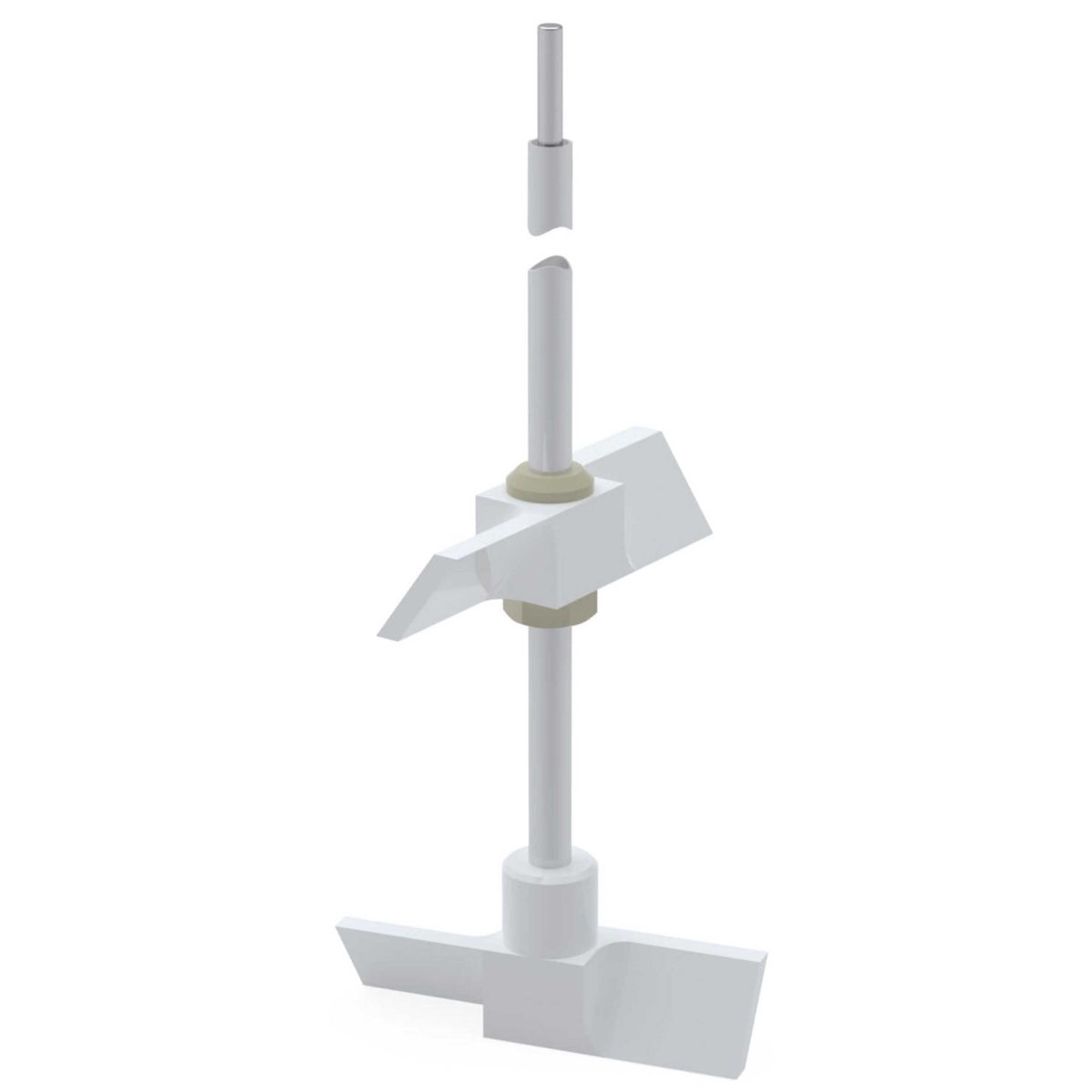

PTFE-jacketed stainless steel shaft, two paddles arranged crosswise at 90° completely made of PTFE. Upper paddle is fixed by means of clamp screws made of PEEK compound. Blade dimensions see Cat. No. C 380-..
Applications
The product is sucked bottom-up, very good axial flow with low local shear force. The upper paddle can be positioned individually.
Specifications:
| Model | C580-18 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Temperature resistance | from -200°C to +250°C |
| Chucking dia. [mm] | 10 |
| Dimensions according to drawing [A - B - C mm] |
140 - 25 - 12 |
| Distance of [blades mm] |
150 |
| Length [mm] | 1000 |
| Shaft dia. [mm] | 16 |
