BOLA Stirrer Shafts with Two Paddles (PTFE ) - L 800 mm Ø 10mm aØ 110x20 mm
Regular price
$ 723.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Stirrer Shafts with Two Paddles (PTFE) - L 800 mm Ø 10mm aØ 110x20 mm
Product Description

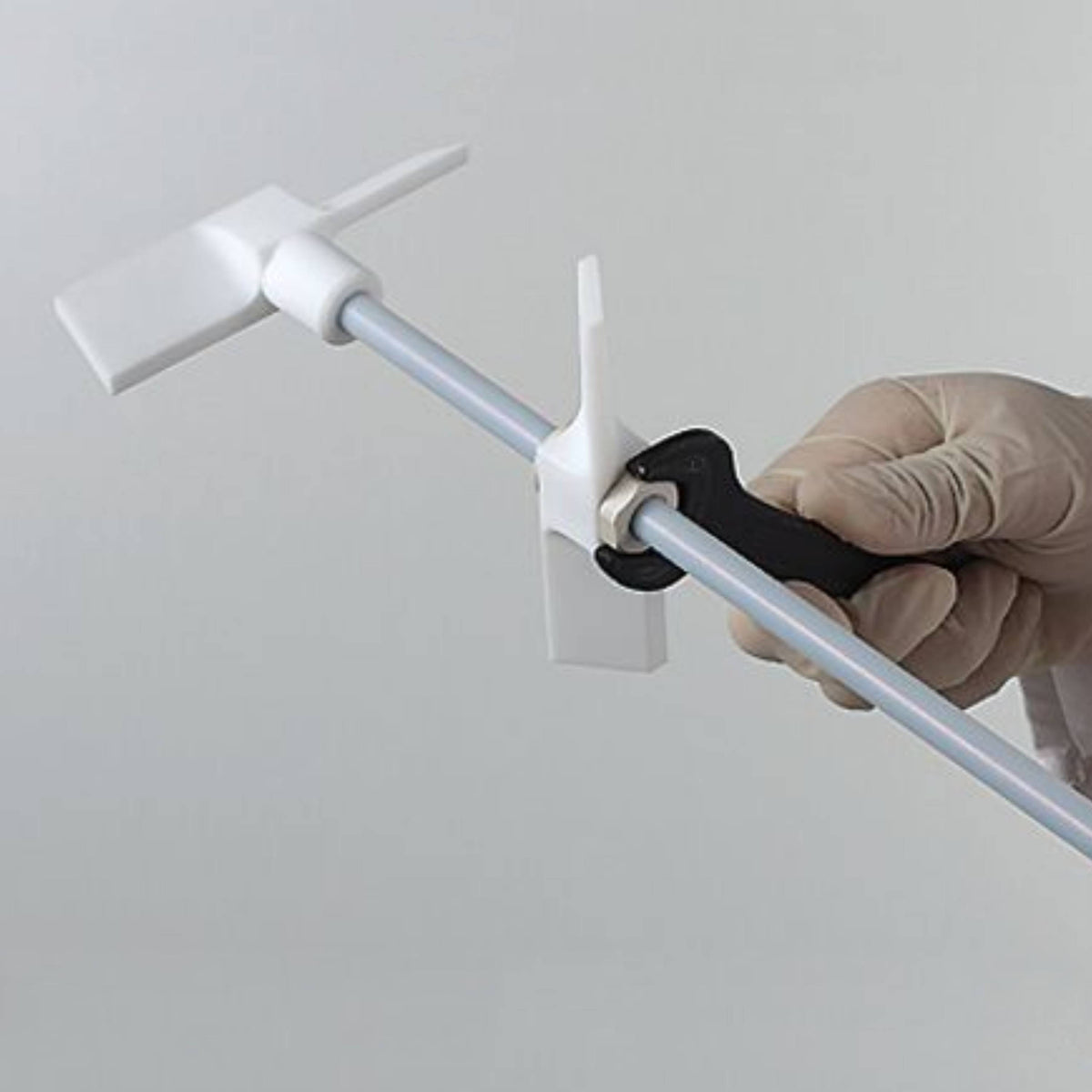

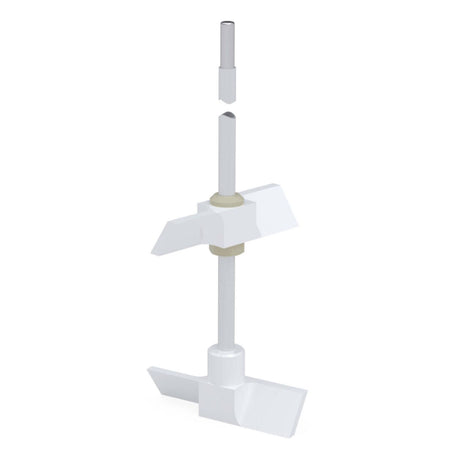

PTFE-jacketed stainless steel shaft, two PTFE paddles arranged crosswise at 90°. Upper paddle is fixed by means of clamp screws made of PEEK compound.
Applications

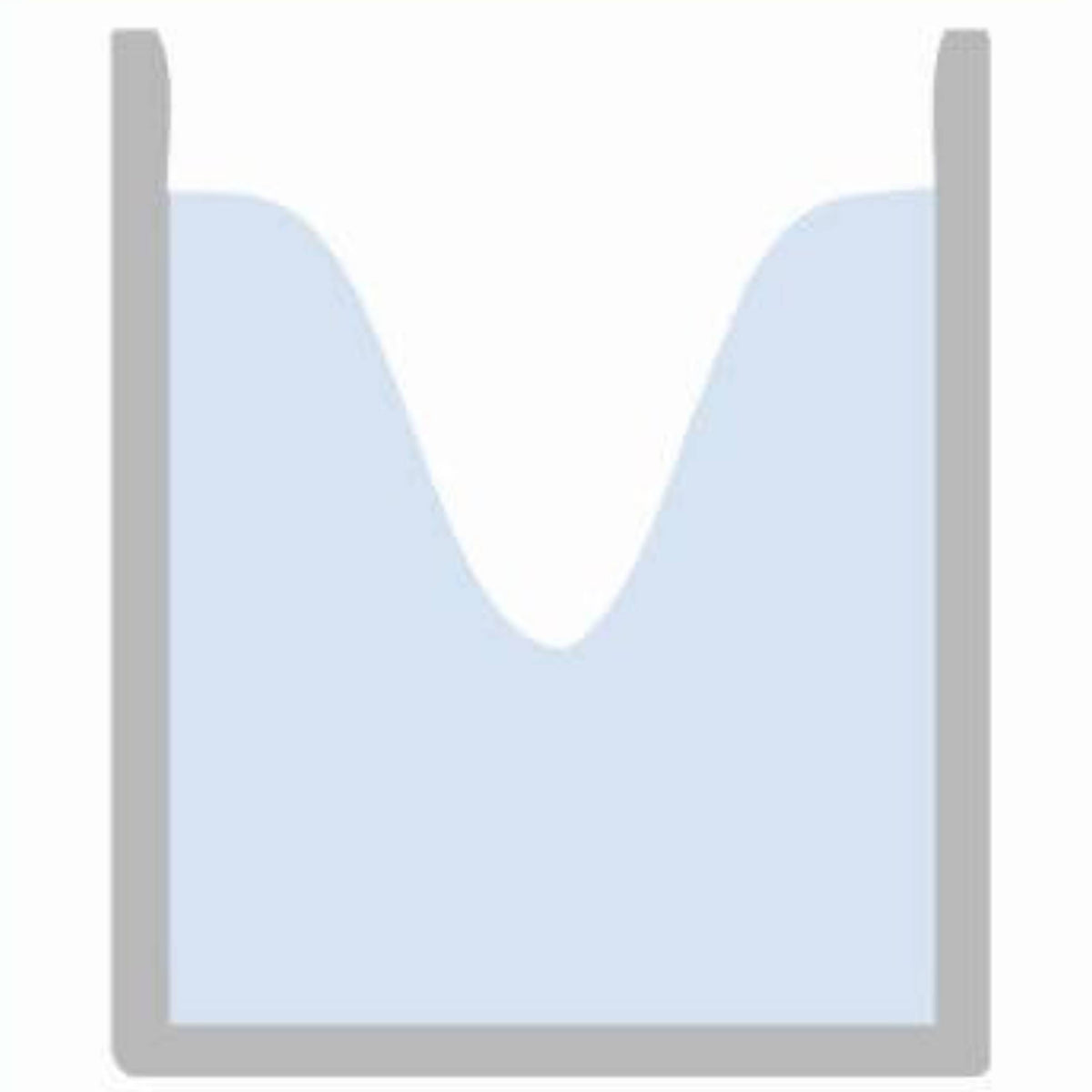

The product is sucked bottom-up, very good axial flow with low local shear force. The upper paddle can be positioned individually.
Specifications:
| Model | C380-10 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Stirring effect | bottom-up |
| Temperature resistance | from -200°C to +250°C |
| Chucking dia. [mm] | 8,0 |

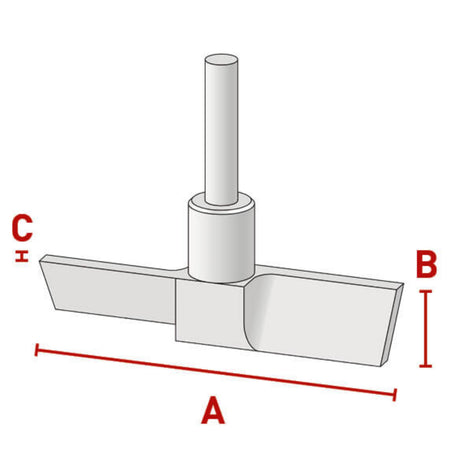

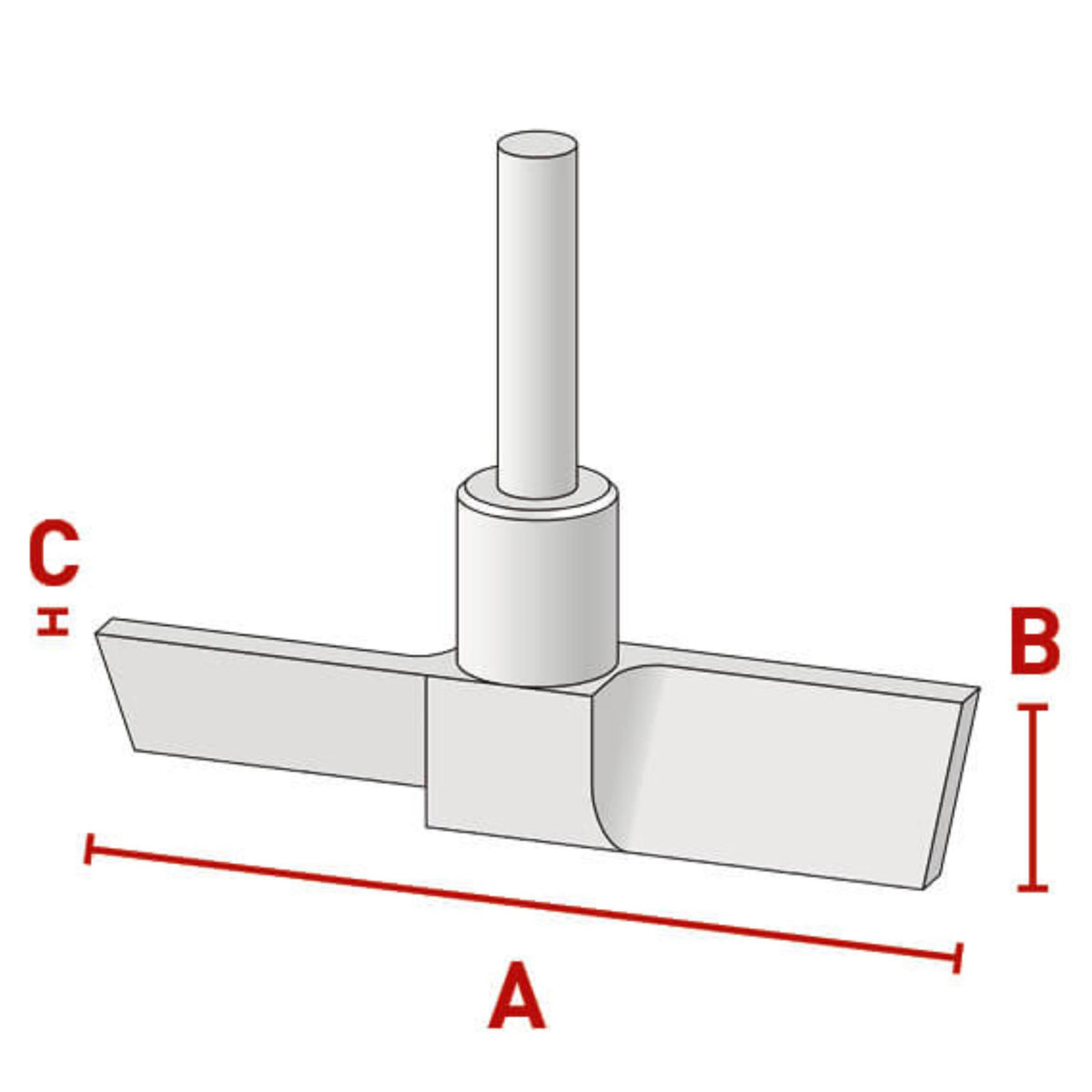

| Dimensions according to drawing [A - B - C mm] | 110 - 20 - 5 |
| Distance of [blades mm] | 100 |
| Length [mm] | 800 |
| Shaft dia. [mm] | 10 |
Downloadable links:
Technical information
Material Safety Data Sheets
