BOLA Stirrer Shafts with Two Paddles (PTFE ) - L 450 mm Ø 8 mm aØ 80x18 mm
Regular price
$ 622.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Stirrer Shafts with Two Paddles (PTFE) - L 450 mm Ø 8 mm aØ 80x18 mm
Product Description

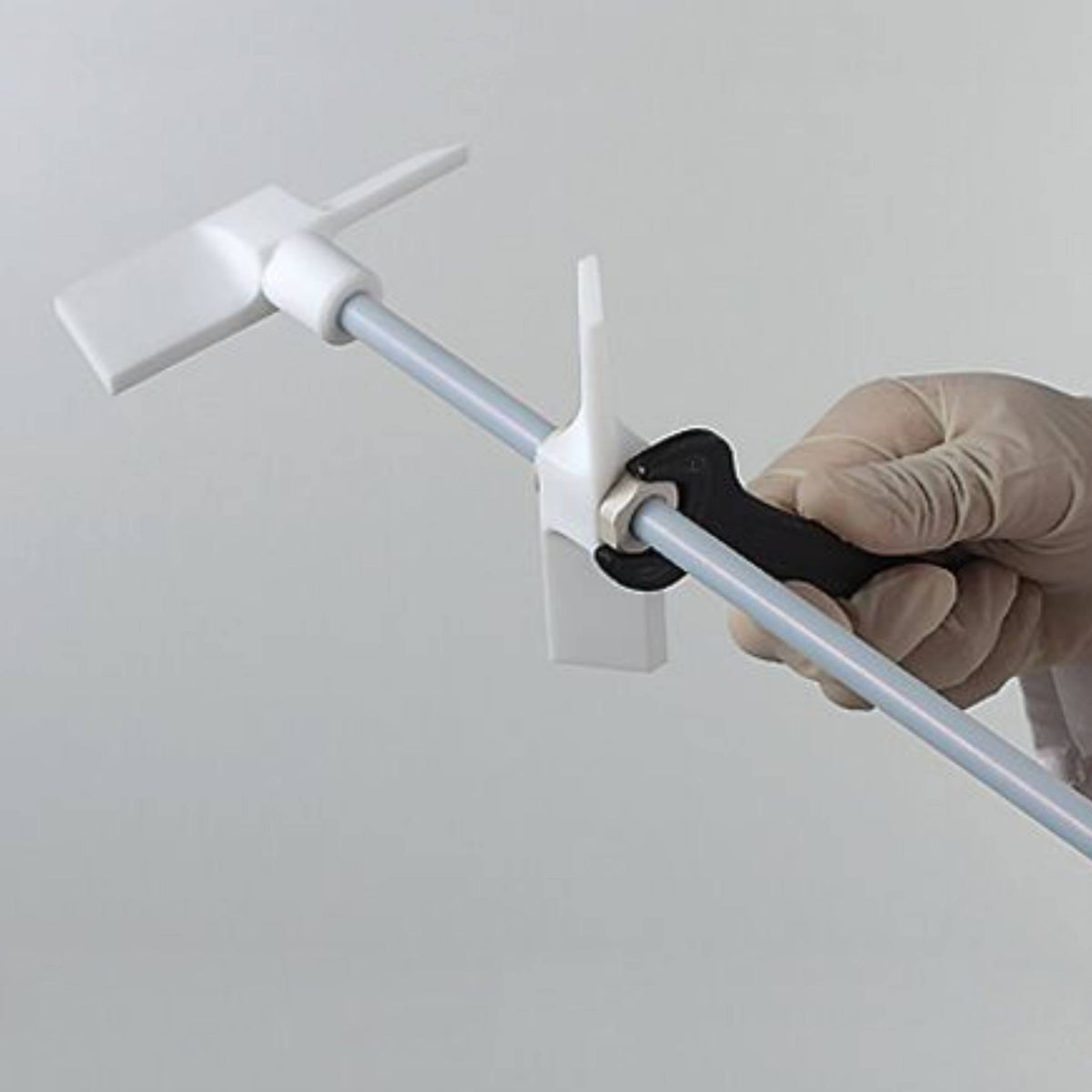

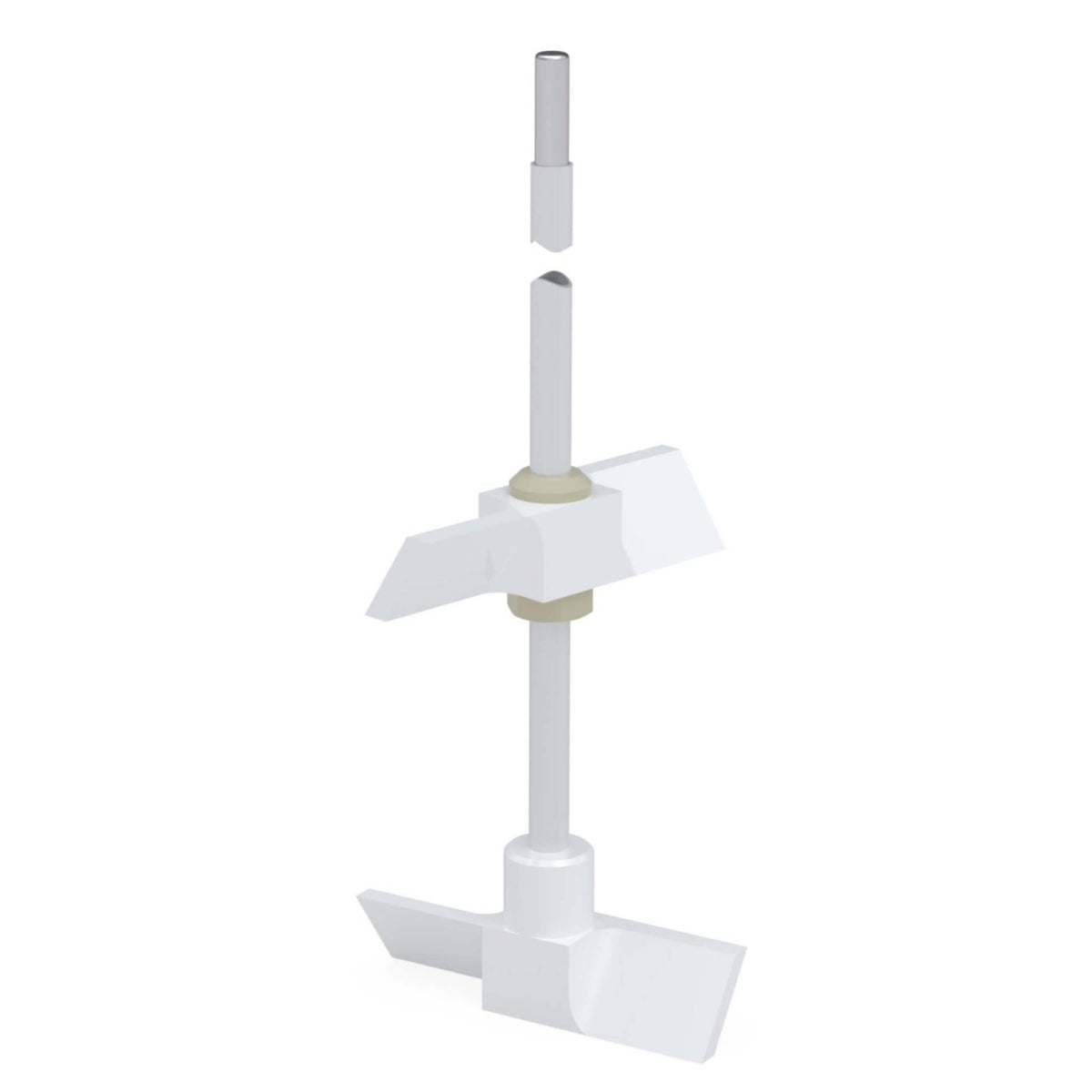

PTFE-jacketed stainless steel shaft, two PTFE paddles arranged crosswise at 90°. Upper paddle is fixed by means of clamp screws made of PEEK compound.
Applications

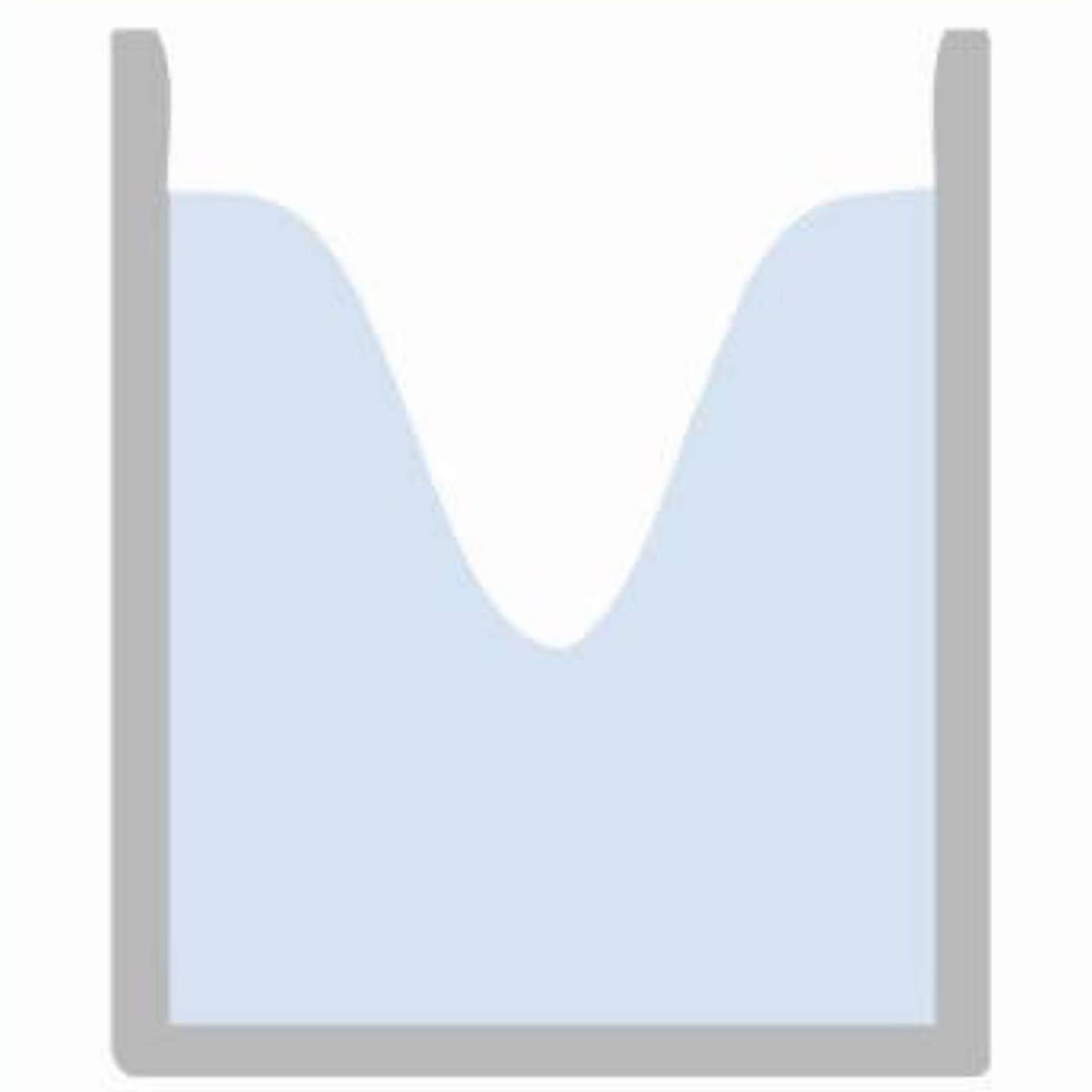

The product is sucked bottom-up, very good axial flow with low local shear force. The upper paddle can be positioned individually.
Specifications:
| Model | C380-02 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Stirring effect | bottom-up |
| Temperature resistance | from -200°C to +250°C |
| Chucking dia. [mm] | 6,5 |
| Dimensions according to drawing [A - B - C mm] | 80 - 18 - 4 |
| Distance of [blades mm] | 50 |
| Length [mm] | 450 |
| Shaft dia. [mm] | 8 |
