BOLA Stirrer Bearings (PTFE) - NS 45/40 Ø 16 mm GL 32

Product Description

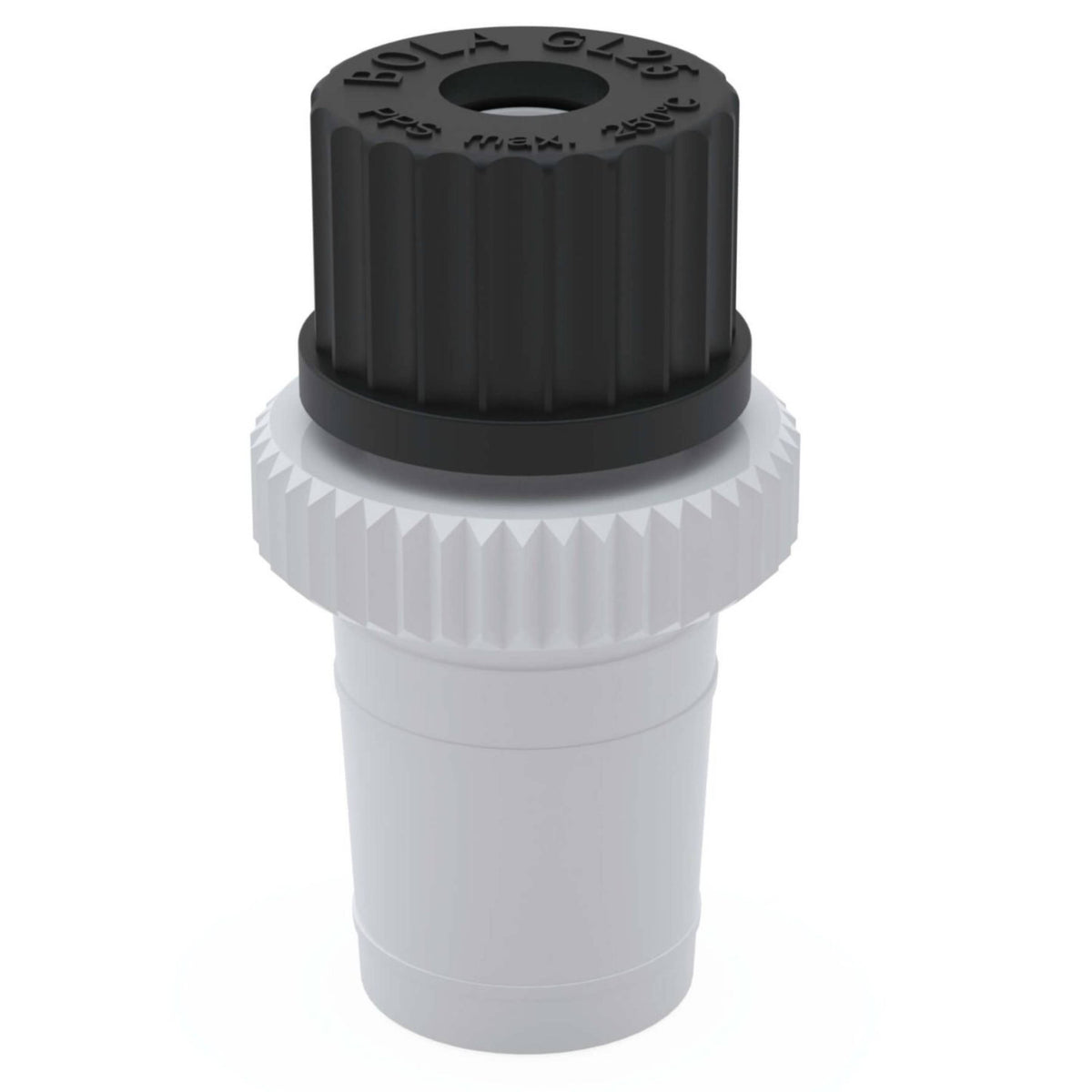

Ground joint cone made of PTFE with sealing rings on the outside to prevent sticking of the connection and to reduce danger of breaking glass. A special gasket made of PTFE and an FPM o-ring which is compressed by a GL screw cap provide a good sealing of the stirrer shaft. This gasket can be exchanged after wearing.

Applications

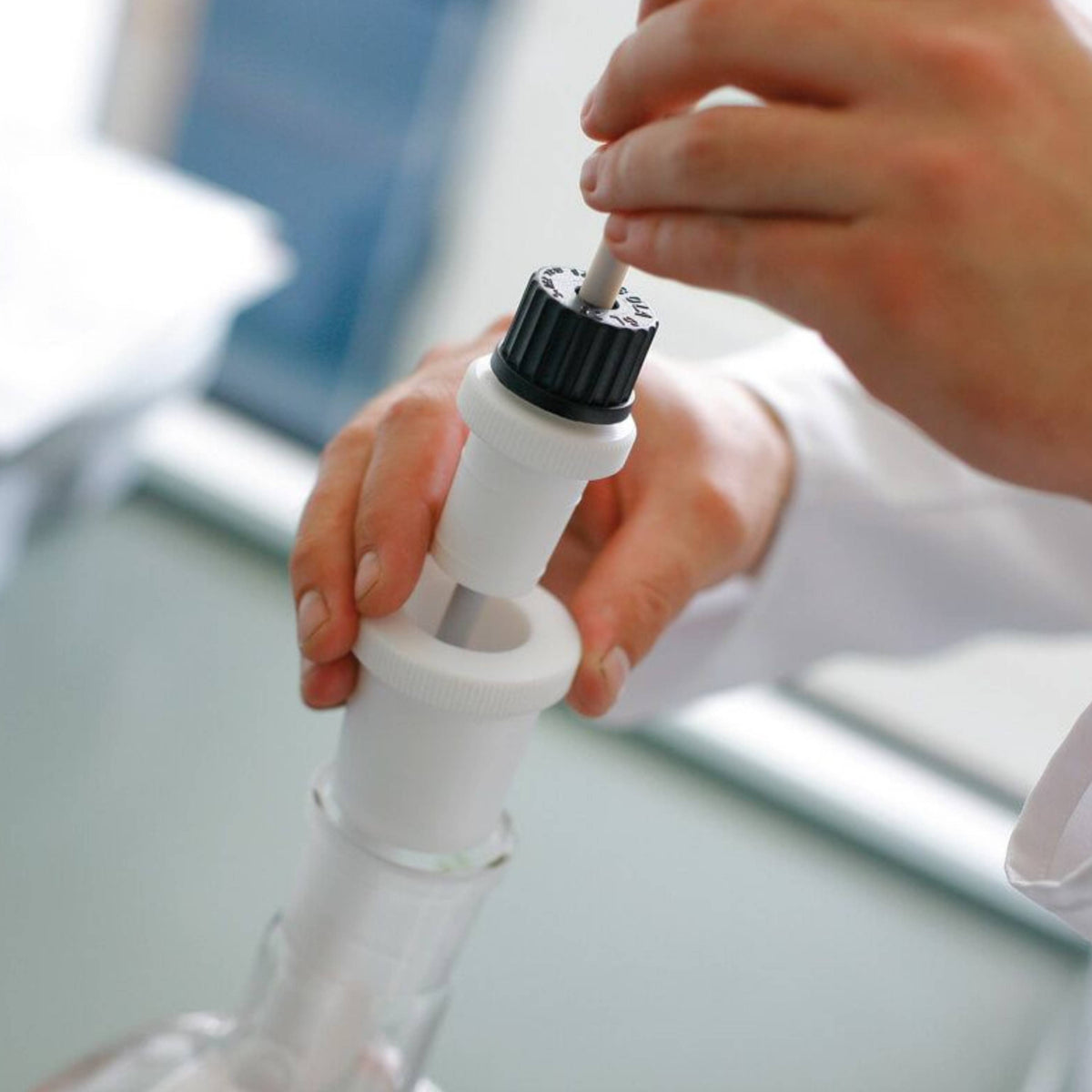

Suitable for vacuum, perfect bearing for stainless steel, glass and BOLA Stirrer Shafts.

Specifications:

Model C424-18
Chemical resistance +++ universal
Material PTFE, PPS
Temperature resistance from -15°C to +200°C
Cone NS [European standard] 45/40
For stirrer shaft dia. [mm] 16
Thread of screw cap [GL] 32
Total length [mm] 86
