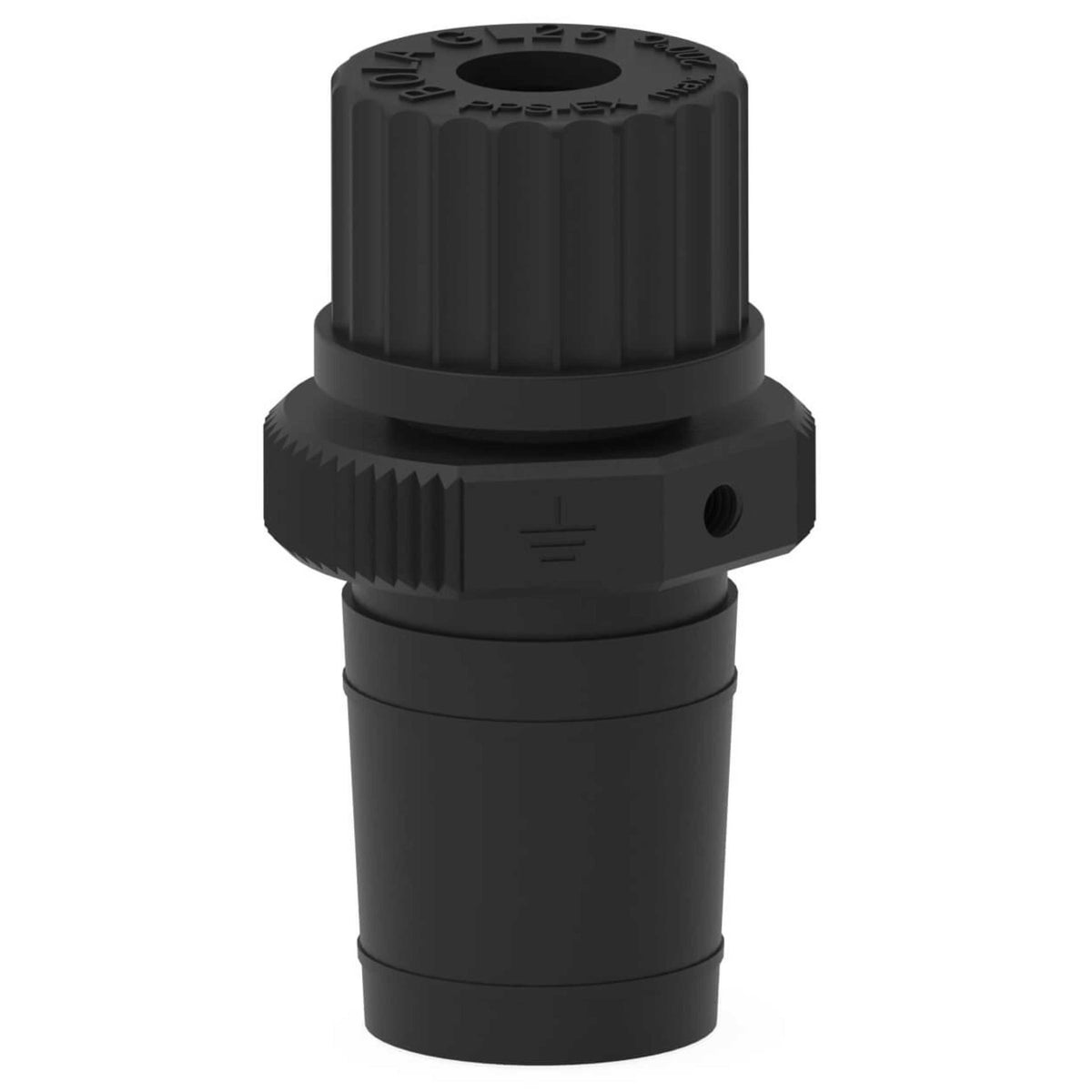

BOLA Stirrer Bearings EX (PTFE-EX/PPS-EX ) - NS 29/32 Ø 10 mm GL 25
Regular price
$ 132.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Stirrer Bearings EX (PTFE-EX/PPS-EX ) - NS 29/32 Ø 10 mm GL 25
Product Description

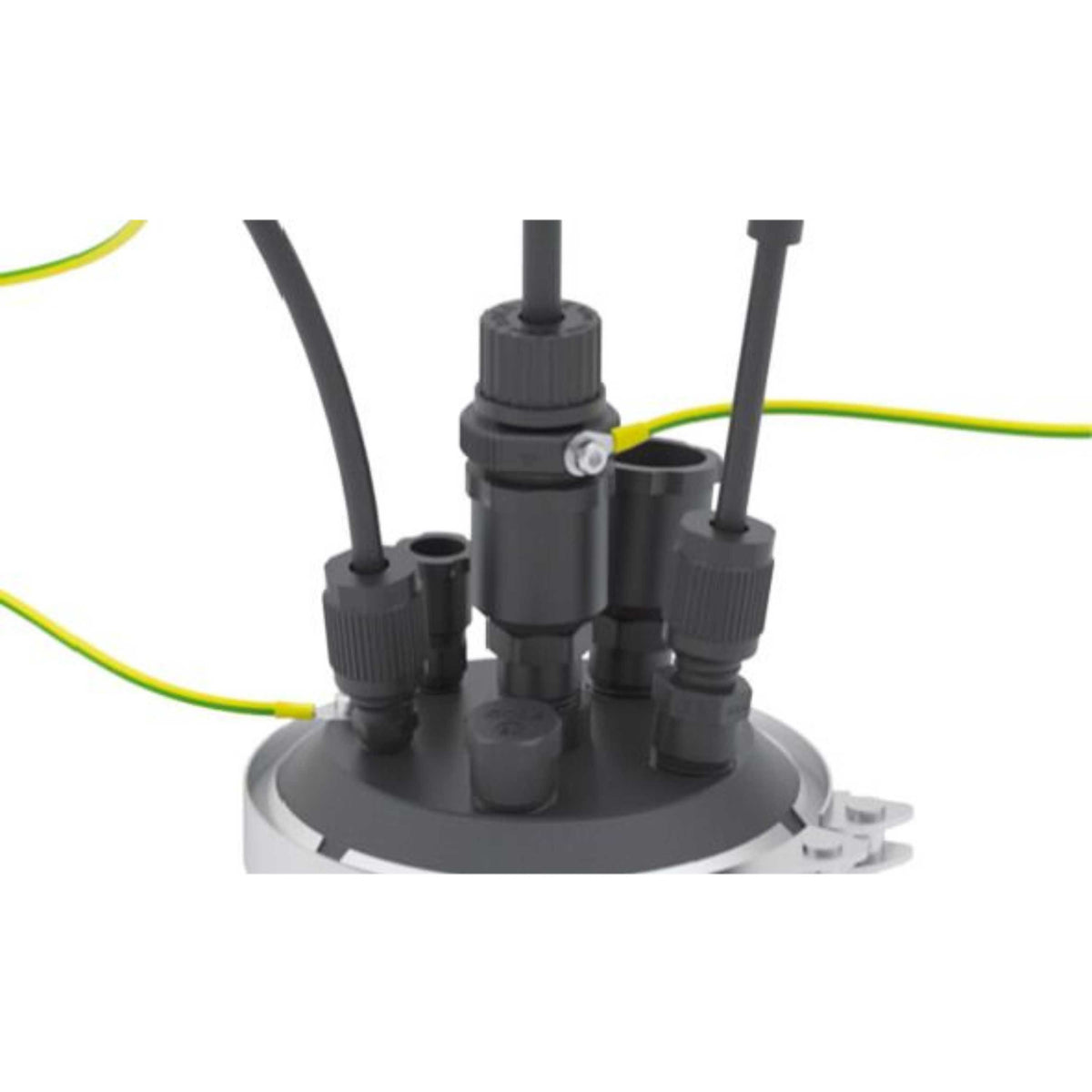

Ground joint cone made of static dissipative PTFE-EX with sealing rings on the outside to prevent sticking of the connection and to reduce the danger of breaking glass. A special gasket made of PTFE-EX and an FKM o-ring which is compressed by GL screw cap provide a good sealing of the stirrer shaft. Bore with female thread M5 on the knurl for earth connection
Applications
Perfect bearing for stainless steel, glass and BOLA stirrer shafts EX
Specifications:
| Model | C423-10 |
| Chemical resistance | ++ very good |
| Conductivity | 1.000 kOhm |
| Material | PTFE EX |
| Temperature resistance | -15°C to +200°C / |
| Cone [NS] | 29/32 |
| For stirrer shaft dia. [mm] | 10 |
| Thread [GL] | 25 |
| Total length [mm] | 72 |
Downloadable links:
Technical information
Material Safety Data Sheets
