BOLA Scrubber Columns (FEP/PTFE ) - 1000 ml
Product Description

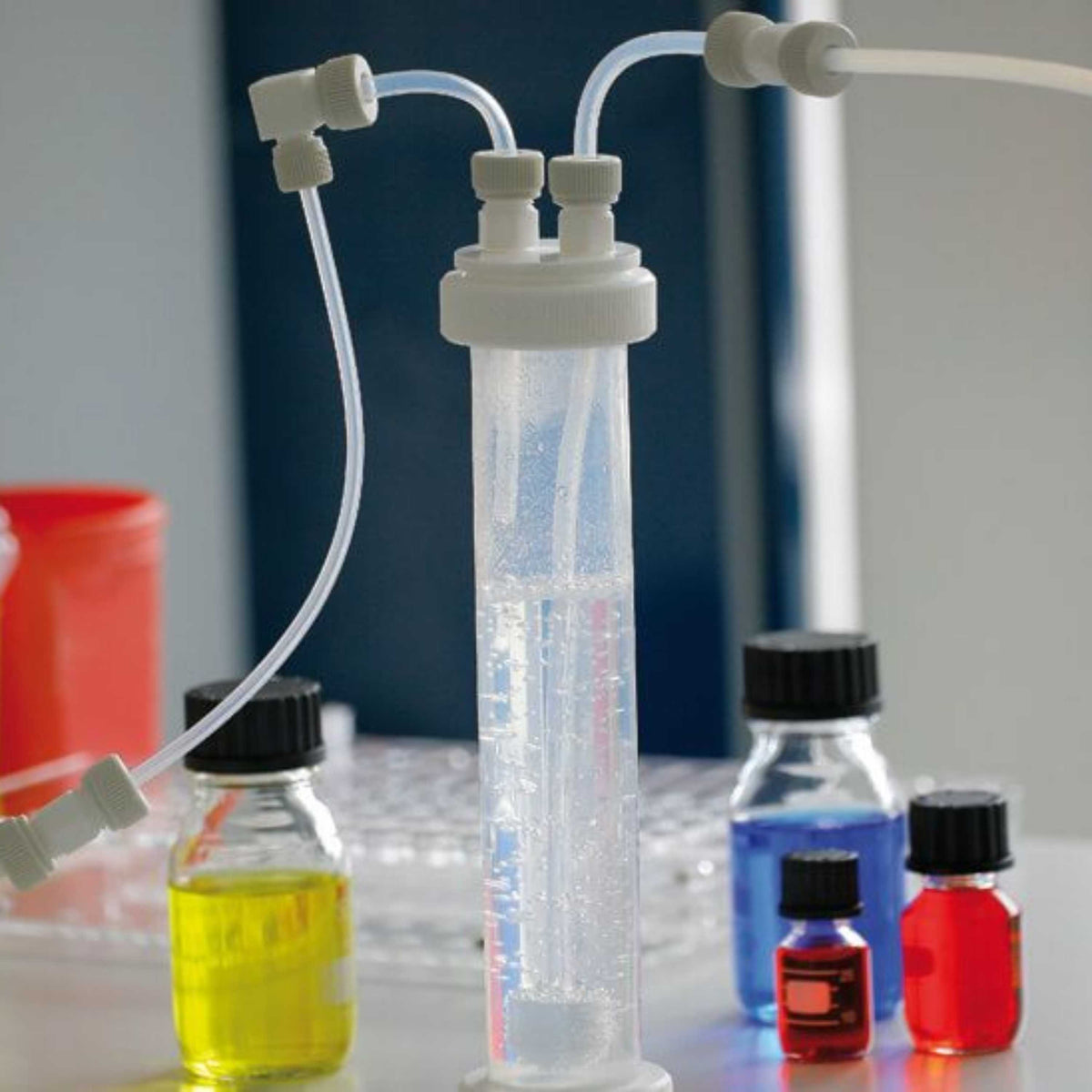

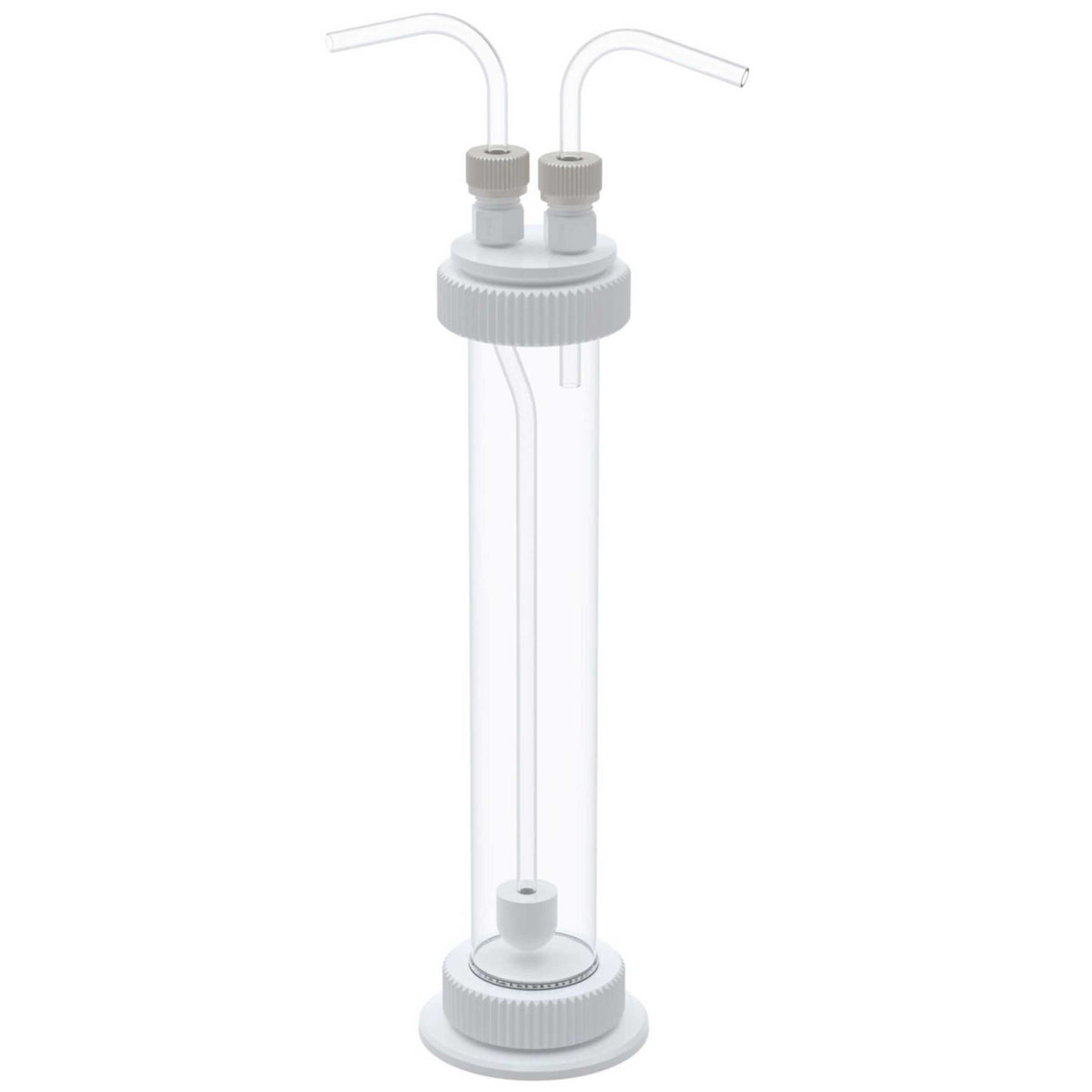

Tall, slim scrubber column made of FEP. Inlet and outlet tube as well as riser tube are made of FEP (5,6 x 8 mm), bottom and top are made of pure PTFE. The standard PTFE frit has a pore size of approx. 5µm and is screwed on the riser tube with an M8x1 thread. It can be exchanged with the PTFE gas distributor with fine bores (Cat. No. N 1501-16) which needs a lower primary pressure.
Product advantages
- Transparent
- Unbreakable
- Intense mixing of gas due to tall riser tube
- Frit easily exchangeable
Applications
Flow rate using the standard gas distributor at the stated system pressure:
A 117-08:
- System pressure 0,1 bar: 5 l/h
- System pressure 0,3 bar: 50 l/h
- System pressure 0,6 bar: 117,5 l/h
Specifications:
| Model | A117-08 |
| Chemical resistance | +++ universal |
| Material | FEP, PTFE |
| Pressure | no pressure |
| Temperature resistance | from -200°C to +250°C |
| Transparency | transparent |
|
Connection for tubing [O.D. mm] |
2 x 8 |
|
O.D. of column [mm] |
54 |
|
Total height [mm] |
700 |
| Volume [ml] | 1.000 |
