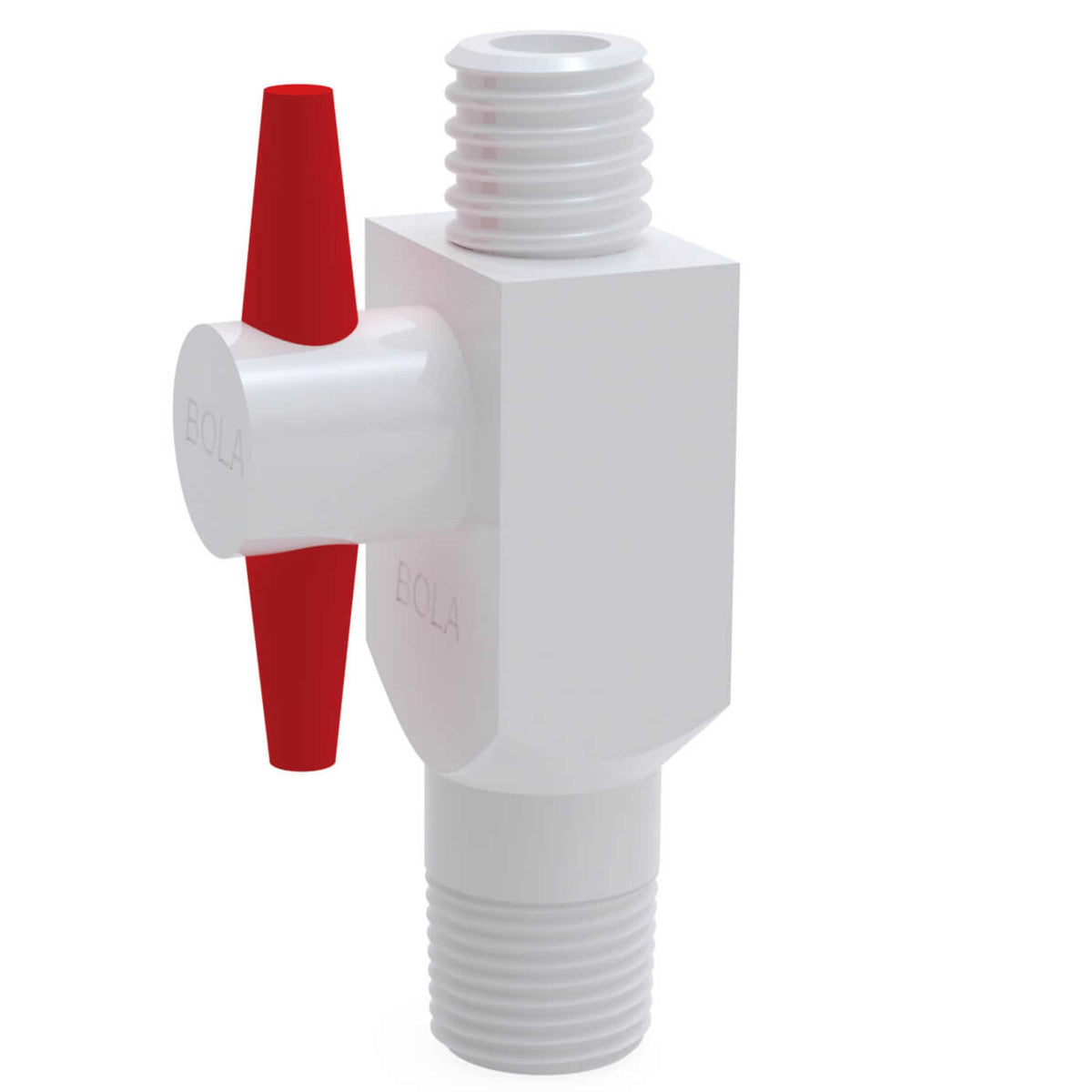

BOLA Screw In Stopcocks, 2-Way (PTFE ) - NPT 1/2" - GL 18, Ø 6 mm
Regular price
$ 330.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Screw In Stopcocks, 2-Way (PTFE ) - NPT 1/2" - GL 18, Ø 6 mm
Product Description
For connection to screw-in threads on BOLA Reactor Lids to interrupt the flow of connected tubes. Available as 2-way stopcock with straight bore and one GL-threaded connection or as 3-way stopcock with L-bore and two GL-threaded connections. Cylindrical stopcock plug with grip made of PP for good tightness, stop valve with mark of flow direction. Universal chemical resistance, the flowing product is only exposed to PTFE.
Applications
For assembly on BOLA Reactor Lids, Cat. No. B 150-…For inserting liquids and gases. Quick and easy disconnection of flow. Connection of tubing or tubes by means of BOLA Laboratory Screw Joints.
Specifications:
| Model | B156-02 |
| Conductivity | 1.000 kOhm |
| Material | PTFE |
| Temperature resistance | from 0°C to +110°C |
| Bore dia. [mm] | 6 |
| Bore shape [stopcock] | --- |
| Connecting thread [GL] | 18 |
| Screw-in thread [NPT] | 1/2" |
| Type |
2-Wege |
