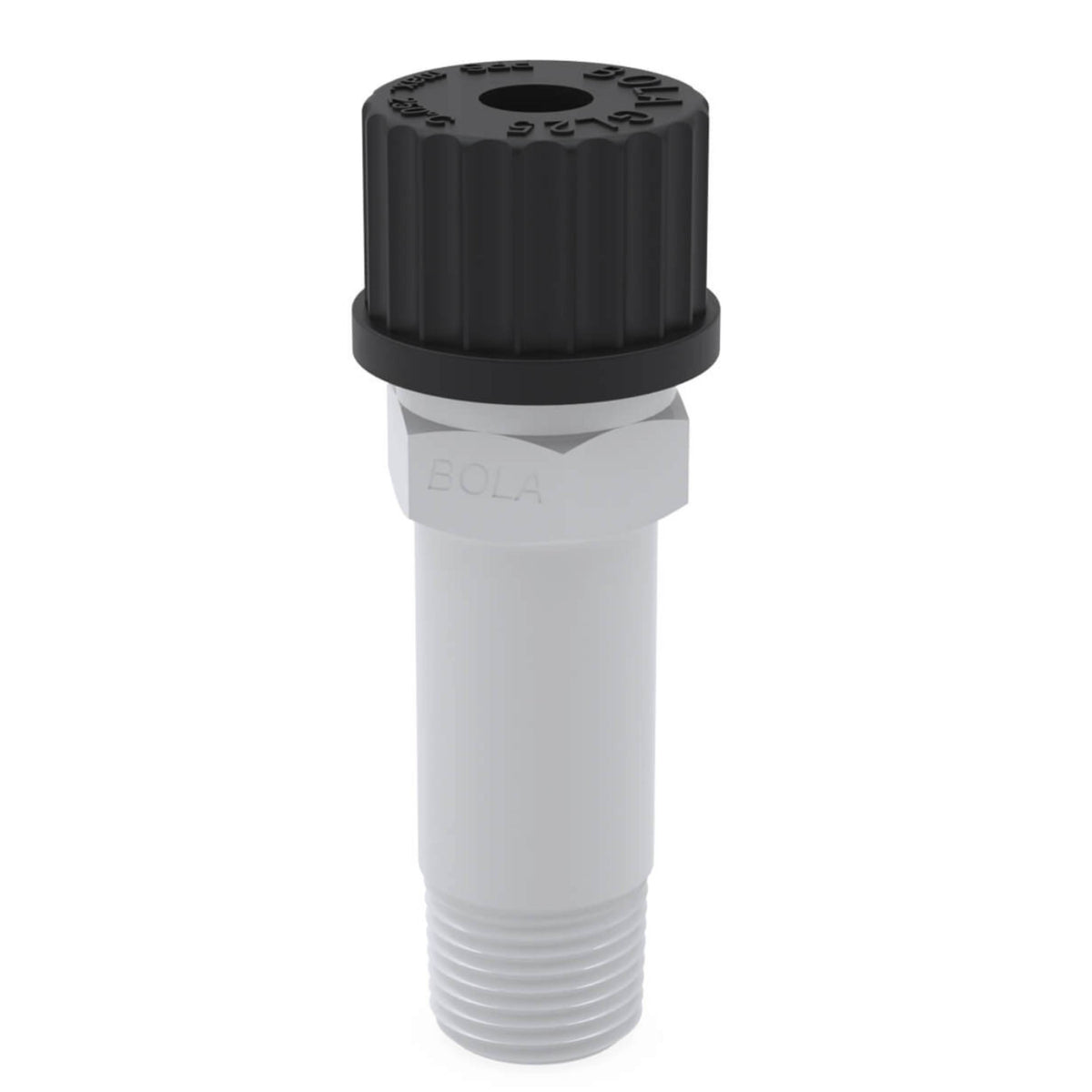

BOLA Screw In Stirrer Bearings (PTFE ) - GL 25, NPT 1/2", Ø 10 mm
Regular price
$ 110.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Screw In Stirrer Bearings (PTFE) - GL 25, NPT 1/2", Ø 10 mm
Product Description
For screw in into the center neck of BOLA Reactor Lids for centric guidance of stirrer shafts. A special gasket made of PTFE and an FPM o-ring which is compressed by a GL screw cap made of PPS provide a good sealing of the stirrer shaft. With hexagonal gripping surface in standard wrench size. Universal chemical resistance, the medium is only exposed to PTFE.
Applications
For assembly on BOLA Reactor Lids, Cat. No. B 150-…Perfect bearing for centric guidance of glass, stainless steel and PTFE-coated stirrer shafts. Suitable spare parts for the stirrer bearing see BOLA Special Gaskets and BOLA Replacement Screw Caps.
Specifications:
| Model | B155-10 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Temperature resistance | -15°C to +200°C |
| For stirrer shaft dia. [mm] | 10 |
| Screw-in thread [NPT] | 1/2" |
| Thread [GL] | 25 |
| Wrench size [(SW) mm] | 25 |
Downloadable links:
Technical information
Material Safety Data Sheets
