BOLA Reactor Multiple Distributor with Ground Joint (PTFE ) - NS 45/40, 3x GL18, max. Ø 10 mm
Regular price
$ 217.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Reactor Multiple Distributor with Ground Joint (PTFE) - NS 45/40, 3x GL18, max. Ø 10 mm
Product Description

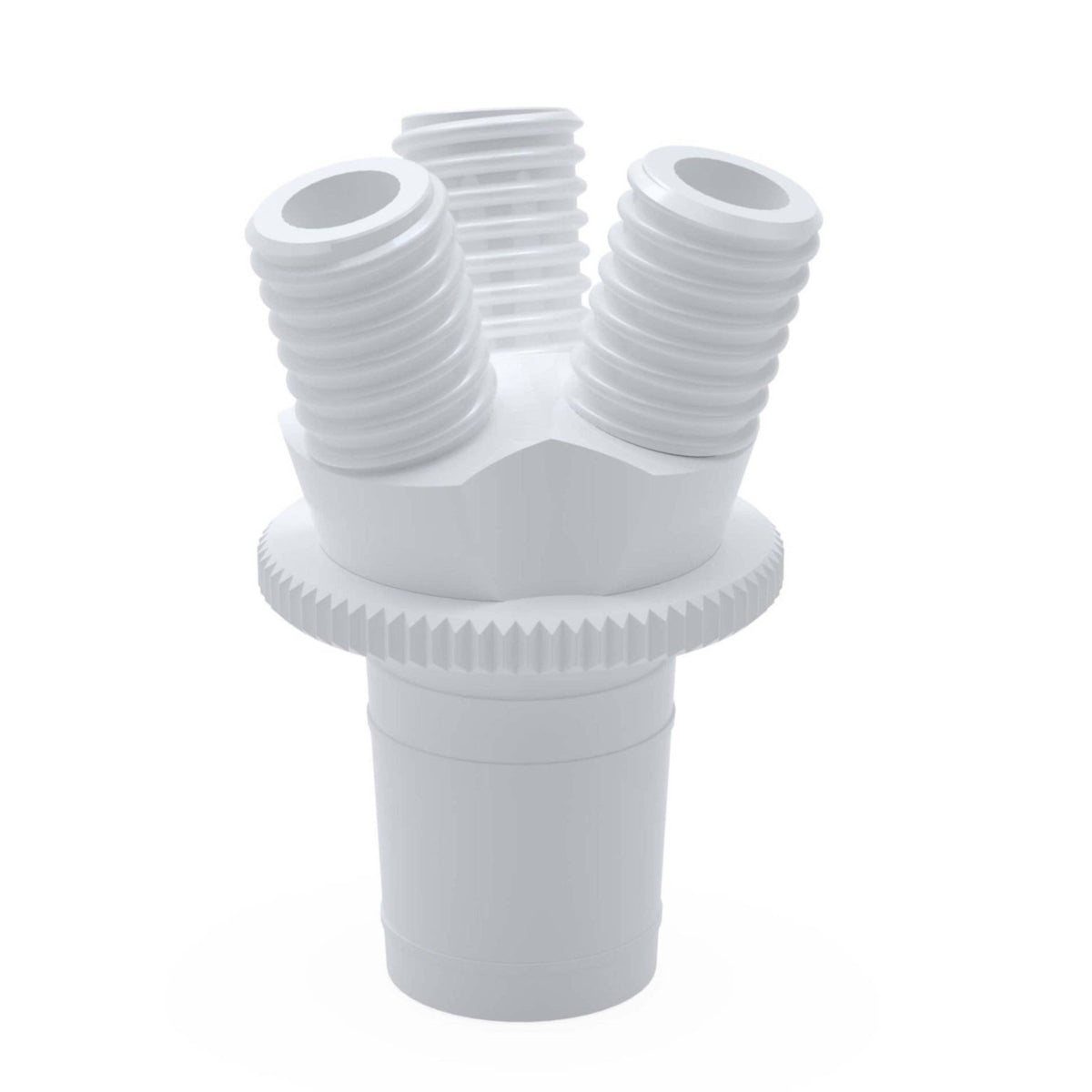

Completely made of PTFE. Cone with elevated sealing rings on the outside and knurled grip for easy removal and three GL-threaded necks for connection of hard-walled tubing and tubes made of glass, plastic or metal by means of BOLA Laboratory Screw Joints. Universal chemical resistance. The product is only exposed to PTFE.
Applications

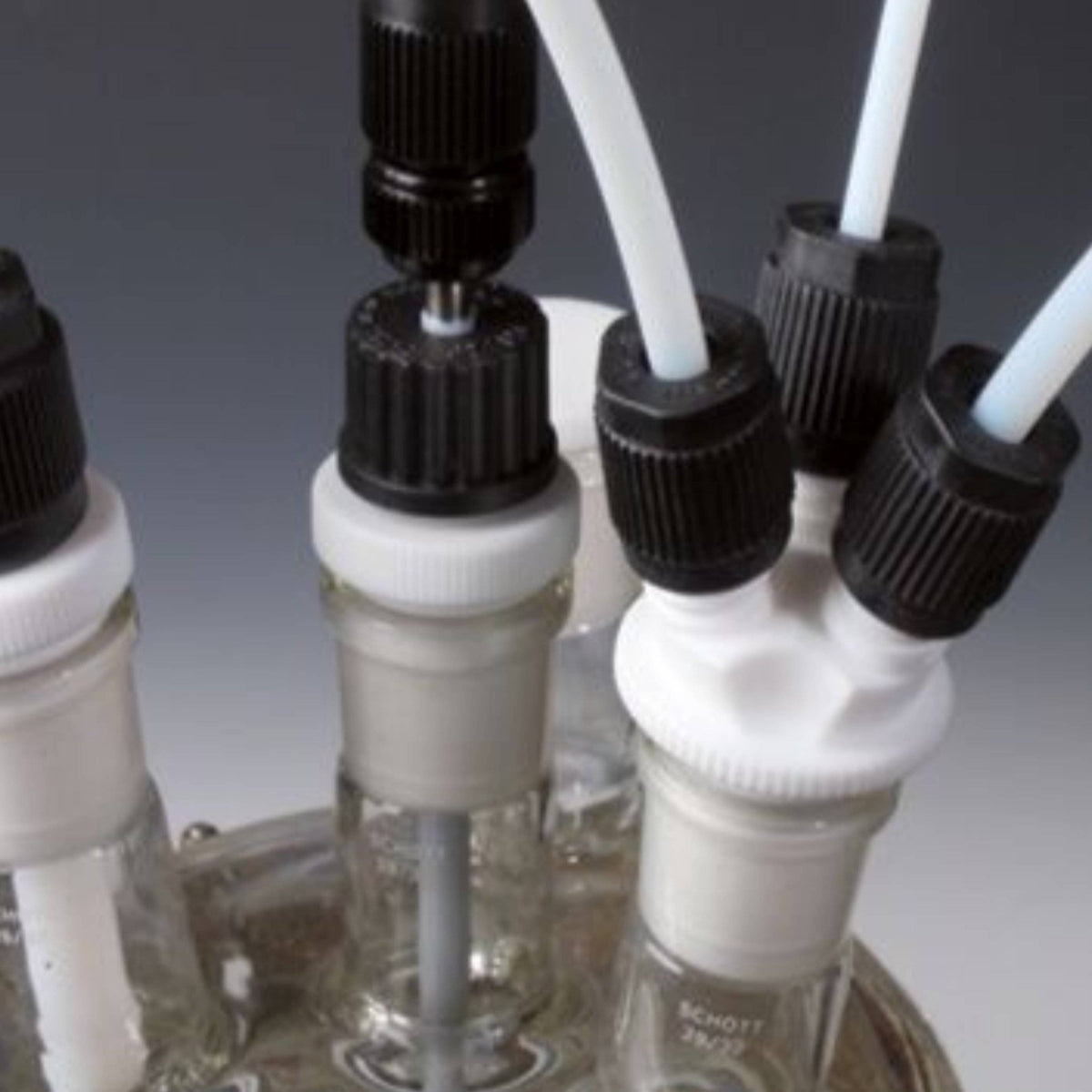

Easy extension of connections on glass lids with ground joint. For leading in and removal of liquids in glass reactors without contamination of the media through the ambient air.
Specifications:
| Model | D623-45 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Temperature resistance | from -200°C to +250°C |
| Vacuum | suitable |
| Autoclave | 121° |
| For ground [joint NS] | 45/40 |
| For tubing O.D. [max. mm] | 3 x 10 |
| Necks [GL] | 3 x 18 |
Downloadable links:
Technical information
Material Safety Data Sheets
