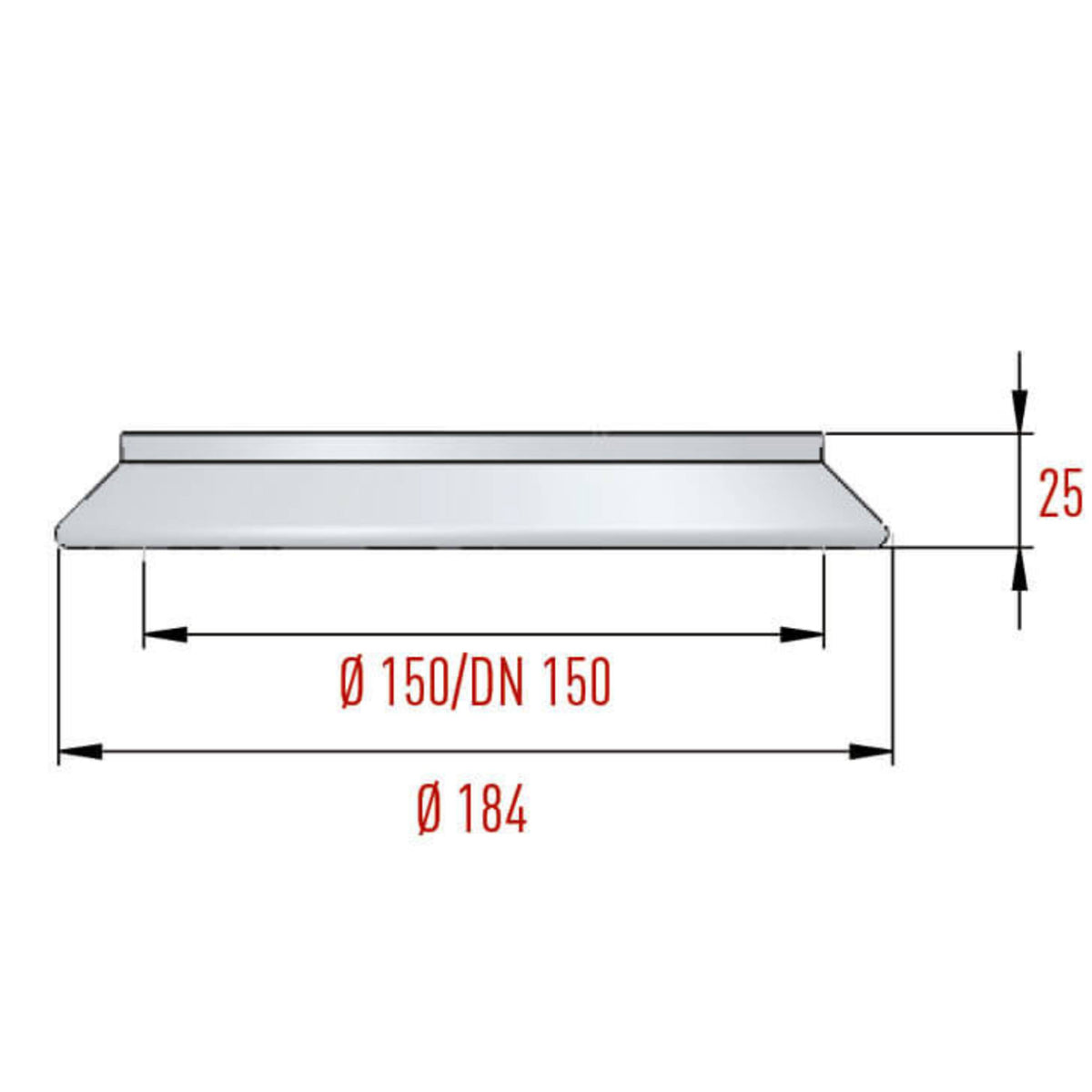

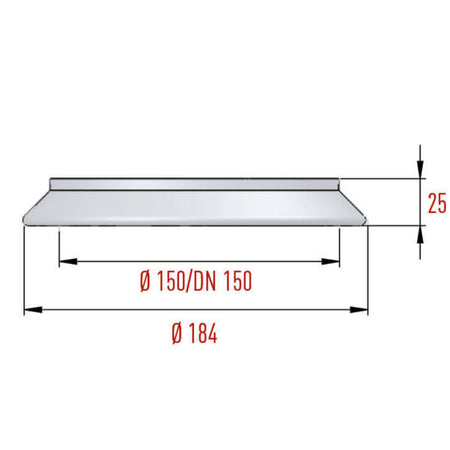

BOLA Reactor Lids (PTFE ) - DN 150 H 25 mm
Regular price
$ 737.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Reactor Lids (PTFE) - DN 150 H 25 mm
Product Description
Suitable for current glass reactors DN 150 with flat flange according to DIN 12214. With screw-in threads for the connection of transition fittings and a centre neck NPT 1/2”.
Product advantages
- Easy assembly
- Flexibly expandable
- Compatible with glass reactors with SCHOTT-flat flange
- Completely made of PTFE, universal chemical resistance
- With connectors for the use of existing equipment with ground joint or GL thread

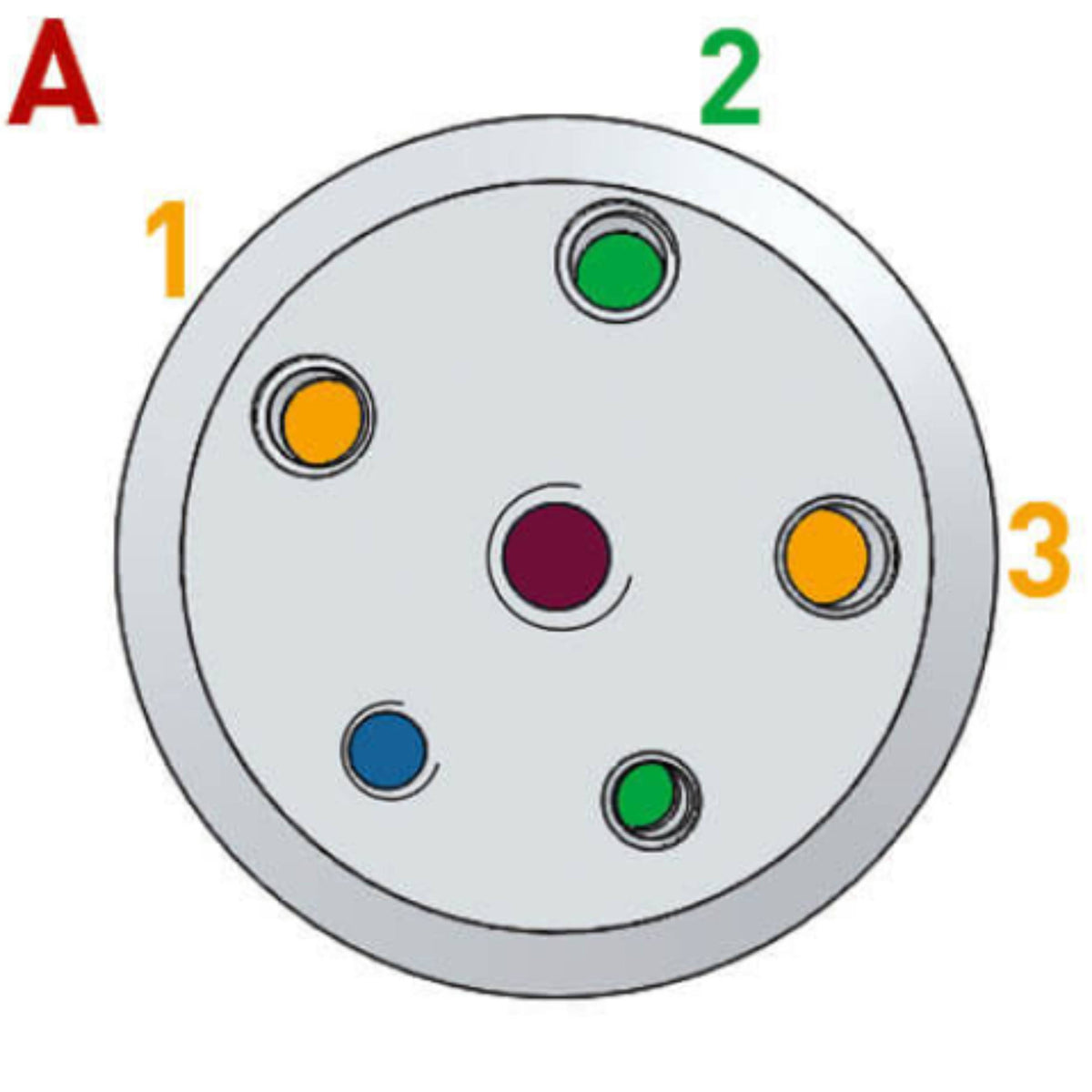

Thread connections in detail:
- Centric thread connection (purple) for insertion of a stirrer bearing
- Vertical thread connection (blue) with parallel alignment to the stirrer shaft
- Inclined thread connection (yellow) with direction straight to the stirrer shaft
- Inclined thread connection (green) with direction aside the stirrer shaft
Specifications:
| Model | B150-24 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Temperature resistance | from -200°C to +250°C |
| Connection | NPT 1/2" (direkt zur Welle / directly to the shaft) |
| Connection (2) |
NPT 1/2" (an Welle vorbei / aside the shaft) |
| Connection (3) | NPT 1/2" (direkt zur Welle / directly to the shaft) |
| Connection (4) | NPT 3/4" (an Welle vorbei / aside the shaft) |
| Connection (5) | NPT 1/4" (senkrecht / vertical) |
