BOLA Propeller-Stirrer Shafts with 4 Blades (PTFE ) - L 600 mm Ø 8 mm aØ 100 mm
Regular price
$ 571.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Propeller-Stirrer Shafts with 4 Blades (PTFE) - L 600 mm Ø 8 mm aØ 100 mm
Product Description

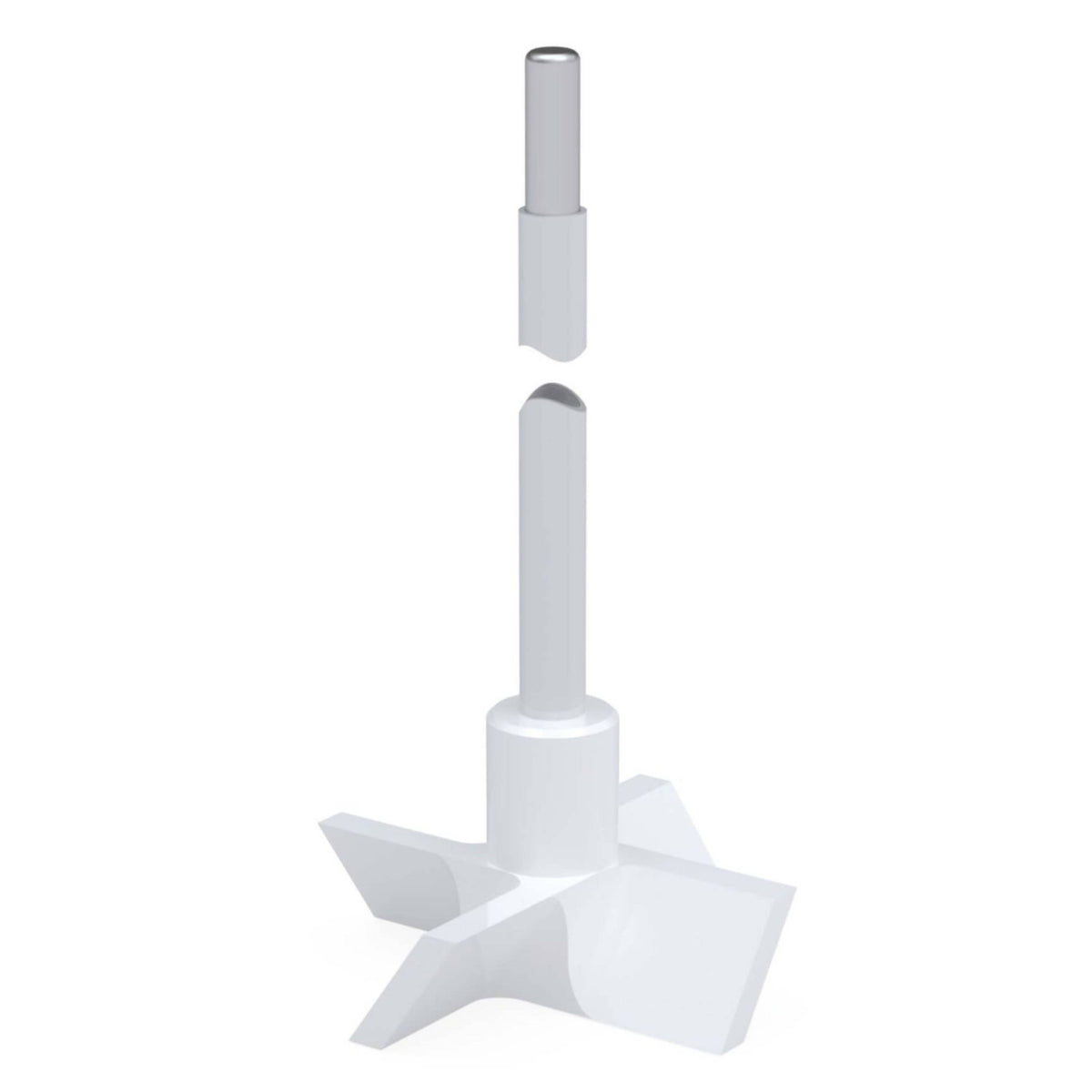

PTFE-jacketed stainless steel shaft, propeller completely made of PTFE with four 45° angled angular blades. Universal chemical resistance since the product is only exposed to PTFE.
Applications
The product is sucked bottom-up, good axial flow with low shear force.
Specifications:
| Model | C484-22 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Stirring effect | bottom-up |
| Temperature resistance | from -200°C to +250°C |
| Chucking dia. [mm] | 6,5 |
| Dimensions according to drawing [A - B - C mm] | 100 - 20 - 5 |
| Length [mm] | 600 |
| Shaft dia. [mm] | 8 |
Downloadable links:
Technical information
Material Safety Data Sheets
